All stock codes associated to this product
VO900M1N2N
New Soprano
P/N: VO900M1N2N
Features
- Aluminum front panel with elegant streamline design
- Sound-damping foams for extreme silence
- USB3.0 superspeed
- Top-mounted HDD hot swap Docking Station
- CableClear cable management
- Innovative 5.25 & 3.5 tool-free design
Unique Design
Top HDD Docking Station
Aluminum Front Bezel
Sound-damping foams for extreme silence

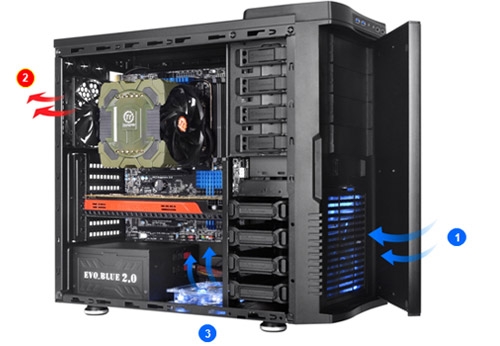

The Cooling System - Air Cooling
HDD Air Cooling System
1. Front (intake) : 200 x 200 x 20 mm Blue LED fan x 1 (600rpm, 13dBA)
CPU Air Cooling System
2. Rear (exhaust) : 120 x 120 x 25 mm Turbo Fan (1000rpm,16dBA)
VGA Air Cooling System
3. Bottom (intake) : 120 x 120 x 25 mm fan (Optional)

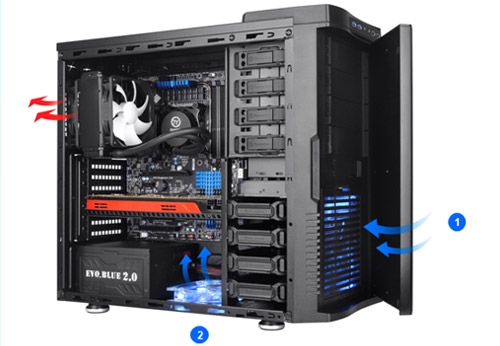

The Cooling System Liquid Cooling (Optional)
HDD Air Cooling System
1. Front (intake) : 200 x 200 x 20 mm Blue LED fan x 1 (600rpm, 13dBA)
VGA Air Cooling System
2. Bottom (intake) : 120 x 120 x 25 mm fan (Optional)
Specifications:
P/N |
VO900M1N2N |
P/N |
Mid Tower |
Dimension (H x W x D) |
460 x 220 x 510 mm (18 x 8.7 x 20 inch) |
Net Weight |
8.3 kg/18.3lb |
Color |
Exterior & Interior : Black |
Material |
SECC |
Cooling System |
Front (intake) : 200 x 200 x 20 mm Blue LED fan x 1 (600rpm, 13dBA) Rear (exhaust) : 120 x 120 x 25 mm Turbo fan (1000rpm,16dBA) Bottom (Intake) : (optional) 120 x 120 x 25 mm
|
Drive Bays |
- Accessible: 4 x 5.25, 1 x 3.5 - Hidden: 5 x 3.5 or 2.5 - HDD Docking: 1 x 3.5 or 2.5 |
Expansion Slots |
7 |
Motherboards |
9.6 x 9.6 (Micro ATX), 12 x 9.6 (ATX) |
I/O Ports |
USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1 |
PSU |
Standard PS2 PSU |
LCS Upgradable |
Supports 1/23/81/4 water tube |
Other |
CPU cooler height limitation: 175mm VGA length limitation: 315mm |
