Technical Specifications
General
Port Standard & Functions
IEEE 802.3 compliant
IEEE 802.3u compliant
IEEE 802.3ab compliance
Supports Half/Full-duplex operation at 10/100Mbps
Supports Full-duplex operation at 1000Mbps
Supports Auto-Negotiation for each port
Auto MDI/MDIX
IEEE 802.3x Flow Control support
IEEE 802.3az compliant
Number of Ports
5 (DGS-1100-05)
8 (DGS-1100-08 & DGS-1100-08P)
16 (DGS-1100-16)
24 (DGS-1100-24)
Performance Switching Capacity
10Gbps (DGS-1100-05)
16Gbps (DGS-1100-08 & DGS-1100-08P)
32Gbps (DGS-1100-16)
48Gbps (DGS-1100-24)
Max. Forwarding Rate
7.44 Mpps (DGS-1100-05)
11.9 Mpps (DGS-1100-08 & DGS-1100-08P)
23.81 Mpps (DGS-1100-16)
35.71 Mpps (DGS-1100-24)
MAC Address Table Size
8K Entries
Packet Buffer
1Mbits (DGS-1100-05)
2Mbits (DGS-1100-08 & DGS-1100-08P)
3.5Mbits (DGS-1100-16 & DGS-1100-24)
Forwarding Mode
Store and Forward
Physical & Environmental
Power Input
100 to 240 VAC, 50 to 60 Hz
External Universal Power Supply (DGS-1100-05, DGS-1100-08, DGS-1100-08P)
100 to 240 VAC, 50 to 60 Hz
Internal Universal Power Supply (DGS-1100-16 & DGS-1100-24)
Max. Power Consumption
3.35 Watts (DGS-1100-05)
4.89 Watts (DGS-1100-08)
7.88 Watts (DGS-1100-08P)
11.29 Watts (DGS-1100-16)
14.83 Watts (DGS-1100-24)
Standy Power Consumption
0.99 Watts (DGS-1100-05)
1.23 Watts (DGS-1100-08)
2.00 Watts (DGS-1100-08P)
5.64 Watts (DGS-1100-16)
6.49 Watts (DGS-1100-24)
Fan Quantity
Fanless
Acoustics
0 dBA
Heat Dissipation
11.43 BTU/hr (DGS-1100-05)
16.68 BTU/hr (DGS-1100-08)
268.87 BTU/hr (DGS-1100-08P)
38.52 BTU/hr (DGS-1100-16)
50.60 BTU/hr (DGS-1100-24)
Operating Temperature
32 to 104 F (0 to 40 C) (DGS-1100-05)
32 to 104 F (0 to 40 C) (DGS-1100-08)
32 to 122 F (0 to 50 C) (DGS-1100-08P)
32 to 104 F (0 to 40 C) (DGS-1100-16)
32 to 104 F (0 to 40 C) (DGS-1100-24)
Storage Temperature
14 to 158 F (-10 to 70 C)
Operating Humidity
10% to 95% non-condensing
Storage Humidity
5% to 95% non-condensing
Dimensions (W x D x H)
5.55 x 3.35 x 1.1 (141mm x 85mm x 28mm) (DGS-1100-05)
6.73 x 3.86 x 1.1(171mm x 98 mm x 28mm) (DGS-1100-08)
7.4 x 4.7 x 1.1 (190mmx120mmx28mm) (DGS-1100-08P)
11 x 7.1 x 1.73 (280mm x 180mm x 44 mm) 11-inch Desktop/Rackmount Size, 1U Height (DGS-1100-16 & DGS-1100-24)
Weight
0.7 lbs (0.32kg) (DGS-1100-05)
0.93 lbs (0.42kg) (DGS-1100-08)
1.6lbs (0.71kg) (DGS-1100-08P)
3.3 lbs (1.5kg) (DGS-1100-16)
3.5 lbs (1.6kg) (DGS-1100-24)
Diagnostic LEDs
Power (Per Device)
PoE Max. (DGS-1100-08P Only)
Link/Activity/Speed (Per Port)
Certifications
FCC Class A
CE Class A
VCCI Class A
Safety
UL/cUL
CE LVD
MTBF
532,838 Hours (DGS-1100-05)
503,585 Hours (DGS-1100-08)
708.219 Hours (DGS-1100-08P)
988,205 Hours (DGS-1100-16)
774,990 Hours (DGS-1100-24)
Power over Ethernet (DGS-1100-08P only)
PoE Standard
802.3af
PoE Capable Ports
Ports 1-8
PoE Power Budget
64W
Software Features
VLAN
Port-based VLAN
802.1Q Tagged VLAN
Surveillance VLAN
Voice VLAN
Management VLAN
VLAN Group
Supports 32 static VLAN groups
Max. 4094 VIDs
L2 Features
Flow Control
802.3x Flow Control
- HOL Blocking Prevention
IGMP Snooping
IGMP v1/v2 Snooping
Supports 32 Groups
Loopback Detection
Link Aggregation
1 group, 2-4 ports per group (DGS-1100-05)
2 groups, 2-4 ports per group (DGS-1100-08/08P)
8 groups, 2-4 ports per group (DGS-1100-16/24)
Port Mirroring
One-to-One
Many-to-One (DGS-1100-16/24 only)
Cable Diagnostics
Statistics
Tx Ok
Tx Error
Rx Ok
Rx Error
QoS
802.1p Quality of Service
4 queues per port
Queue Handling
Strict
Weighted Round Robin (WRR)
Bandwidth Control
DGS-1100-05/08/08P Port Based (Ingress/Egress, min. granularity 8 kb/s)
DGS-1100-16/24: Port Based (Ingress/Egress, min. granularity 64 kb/s)
Security
Static MAC Address
Max. 32 entries (DGS-1100-05/08/08P)
Max. 128 entries (DGS-1100-16/24)
Broadcast/Multicast/Unknown Unicast Storm Control
Management
Web-Based GUI (Supports IPv4)
Smart Console Utility
D-Link Green
Power Saving by
Link Status
Cable Length
Energy Efficient Ethernet (IEEE 802.3az)
RoHS Compliant
RFC Standard List
RFC 768 UDP
RFC 791 IP
RFC 792 ICMP
RFC 793 TCP
RFC 826 ARP
RFC 951 BootP Client
RFC 1542 BootP/DHCP client
RFC 1945 HTTP/1.0
RFC 2647 802.1p
Warranty
Warranty
Limited Lifetime
Ordering Information

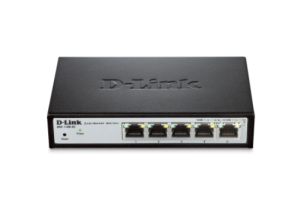

DGS-1100-05 EasySmart 5-Port Gigabit Switch
DGS-1100-08 EasySmart 8-Port Gigabit Switch
DGS-1100-08P EasySmart 8-Port Gigabit PoE Switch
DGS-1100-16 EasySmart 16-Port Gigabit Switch
DGS-1100-24 EasySmart 24-Port Gigabit Switch
