Thunder 500W
(RS-500-ACAB-M3)
Introduction
The reliable, efficient and premium line of Thunder power supplies is ideal for mainstream and basic computing systems. Built with quality components and dual +12V outputs, the Thunder series is fit to handle demands of high power requirements. In addition to the stable and clean power, the highly developed features incorporated include worry-free protection design and reach Green power design to meet Energy Star and Blue Angel requirements.
Features
Dual 12 V Power Rail
- Tackling challenges from the most power-intensive peripherals head on, double 12 V power rails provide ample power and strong resistance to any overloading.
Double-Layer EMI Filter
- Dual protection from electromagnetic interference, thus restraining noise and interference for greater protection for you and your connections.
Intel Compliant
Intelligent Fan Speed Control
- Speed control makes the 120 mm fan adept for any users circumstances and need.
Multiple Protection Design
- Over Voltage Protection (OVP), Over Power Protection (OPP), Over Current Protection (OCP), Short Circuit Protection (SCP).
Massive Bulk Capacitor
- Producing hold times >14ms upon full loading.
And More
- Multiple updated connectors for all types of interfaces (PCIe, SATA etc.)
- High reliability with an MBTF of at least 100,000 hours of use.
- Three Year Warranty.
Specifications
| Model |
RS-500-ACAB-M3 |
| Type |
lntel ATX 12V V2.3 |
| Dimension (W x H x D) |
150 x 140 x 86mm
5.9 x 5.5 x 3.4 inch |
| Input Voltage |
180~264Vac |
| Input Current |
5A@230Vac |
| Input Frequency Range |
47~63Hz |
| PFC |
Active PFC |
| Power Good Signal |
100 ~ 500 ms |
| Hold Up Time |
>14ms |
| Efficiency |
>85%@ Typical Load |
| MTBF |
>100,000 Hours |
| Protection |
OVP / OCP /OPP / SCP |
| Output Capacity |
500W |
| Operation Temperature |
0~40C |
| Regulatory |
CB / CE / CCC |
| Fan |
120mm Fan |

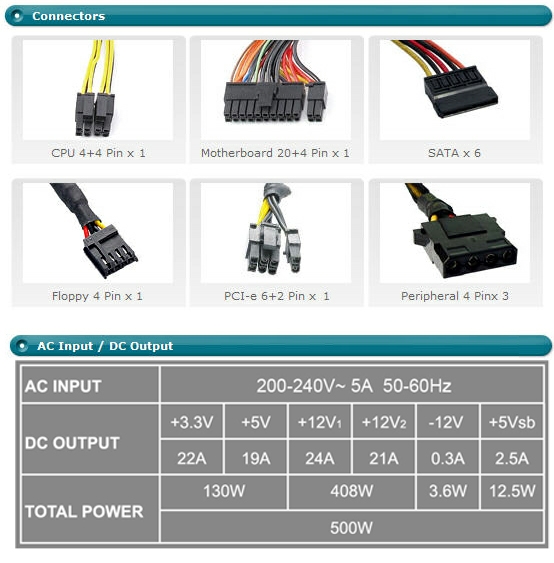

| Connector |
MB 20+4 Pin x 1
CPU12V 4+4 Pin x 1
PCI-e 6+2 Pin x 2
SATA x 6
4Pin Peripheral x 3
4Pin Floppy x 1 |
