All stock codes associated to this product
N65TBOC2GD, N65TBOC-2GD
GV-N65TBOC-2GD

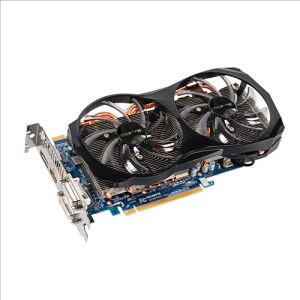

Ultra Durable 2 Series
- Powered by NVIDIA GeForce GTX 650 Ti Boost GPU
- Integrated with the first 2048MB GDDR5 memory and 192-bit memory interface
- OC Edition - Core Clock: Base / Boost clock1032 / 1098 MHz
- Features Dual-link DVI-I / DVI-D / HDMI / DisplayPort
- Support PCI Express 3.0 x16 bus interface
- System power supply requirement: 450W
Overview
WindForce 2X Anti-turbulence-Parallel inclined
WINDFORCE™ 2X parallel-inclined fin design is equipped with 2 ultra quiet PWM fans and two copper heat pipes to enlarge air channel on the graphics card vents and creates a more effective airflow system in chassis.
Up to 4 displays on a Single Card
In the Kepler architecture, support uo to four displays on a single card. Satisfy your mulit-screen steup, high definition and extreme gaming experience.
Ultra Durable 2
Ultra Cooling - Low RDS(on) MOSFET Design
Low Power Loss - Ferrite Core Choke Design
Longer Life - All-Solid Capacitor Design
Gold plated HDMI
Gold plated, durable large contact area connectors have been used for optimum signal transfer between connections
OC GURU ll
Brand-new instinctive user interface, easier to monitoring and adjusting all important settings. Users can set up MONITORING, GPU CLOCK, MEMORY CLOCK, FAN, GPU VOLTAGE, Memory VOLTAGE, OSD, ONLINE SUPPORT and update driver, BIOS directly.
Specifications:
| Chipset |
GeForce GTX 650 Ti Boost |
| Memory Clock |
6008 MHz |
| Process Technology |
28 nm |
| Memory Size |
2048MB |
| Memory Bus |
192 bit |
| Core Clock |
Base clock: 1032 MHz
Boost clock: 1098 MHz
(standard Base clock: 980 MHz Boost clock: 1046 MHz) |
| Card Bus |
PCI-E 3.0 |
| Memory Type |
GDDR5 |
| DirectX |
11.1 |
| OpenGL |
4.3 |
| PCB Form |
ATX |
| Digital max resolution |
2560 x 1600 |
| Analog max resolution |
2048 x 1536 |
| Multi-view |
4 |
| I/O |
Dual-link DVI-I*1
DVI-D*1
DisplayPort*1
HDMI*1 |
| Card size |
H= 42mm, L=256.3 mm, W=131 mm |
| Power requirement |
450W |
