ASUS Radeon HD 7850 - 1GB GDDR5 - (860MHz, 4800MHz)
256-bit, 2xDVI, 1xDisplayPort, 1xHDMI, PCI-Ex16 v3.0, Fansink

No Longer Available

Part Number:

219616

(?) Brand:

ASUS Web Site

Manuf No:

HD7850-DC-1GD5
HD7850DC1GD5

Shipping Weight:

2 KG (Includes product packaging)
Estimate Shipping

Add to wishlist

Write a Review

Details Files Images & Video

All stock codes associated to this product

HD7850DC1GD5, HD7850-DC-1GD5

HD7850-DC-1GD5

Overview

Perfect balance of 28nm power with cool and quiet performance

DirectCU thermal design utilizes direct contact copper heatpipes so heat is dissipated efficiently, delivering a 20% cooler and vastly quieter performance than reference.
Acclaimed DIGI+ VRM has been applied via a power design that uses digital voltage regulators to minimize power noise by 30% and enhance power efficiency by 15%, widen the voltage modulation range, and improve overall stability and longevity by 2.5 times longer than reference.
GPU Tweak utility helps you modify and tune clock speeds, voltages, and fan performance via an intuitive interface

Perfect balance of 28nm power with cool and quiet performance

ASUS Exclusive Innovation

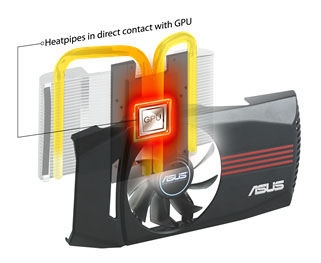

DirectCU

Precision mounted DirectCU copper heatpipes in direct contact with the GPU for rapid heat dissipation – creating 20%* cooler and quiet performamce in idle.

DIGI+ VRM with Super Alloy Power

Acclaimed DIGI+ VRM Super Alloy Power technology delivers precise digital power and enhanced durability for stable overclocking.

GPU Tweak

Detailed specs and actual card status with GPU-Z
Monitoring widget provides real-time and detailed multi-parameter info
2D/ 3D switcher can lock the card in 3D mode for higher benchmarks
Automatically check and update drivers and BIOS versions
Sync GPU clocks and voltages for easier overclocking

Graphics GPU Features

Gigabtic 1GB GDDR5 Memory

On-board memory for the best gaming experience & the best resolution

AMD HD3D™ Technology

Optimize stereoscopic 3D gaming and movie-watching entertainment.

Software CrossFire X Support

Multi-GPU technology for extreme performance

GHz

Meet or exceed a 1GHz reference engine clock for better performance

28nm GPU

Less power consumption & more efficient transistor

PCIE3.0

Delivers double the bandwidth per lane of PCIe Gen 2 for faster GPU – CPU communication

DirectX 11 Support

Bring new levels of visual realism to gaming on the PC and get top-notch performance

Microsoft® Windows® 7 Compatible

Enable PC users to enjoy an advanced computing experience and to do more with their PC

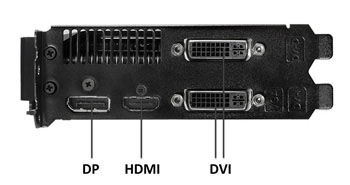

I/O Ports Highlight

Specifications:

Graphics Engine

AMD Radeon HD 7850

Bus Standard

PCI Express 3.0

Video Memory

GDDR5 1GB

Engine Clock

860 MHz

Memory Clock

4800 MHz ( 1200 MHz GDDR5 )

RAMDAC

400 MHz

Memory Interface

256-bit

Resolution

D-Sub Max Resolution : 2048x1536
DVI Max Resolution : 2560x1600

Interface

D-Sub Output : Yes x 1 (via DVI to D-Sub adaptor x 1)
DVI Output : Yes x 2
HDMI Output : Yes x 1
Display Port : Yes x 1 (Regular DP)
HDCP Support : Yes

Accessories

1 x CrossFire cable
1 x DVI to D-Sub adaptor

Power Consumption

up to 150W1 additional 6 pin PCIe power required

Software

ASUS Utilities & Driver

ASUS Features

DirectCU Series

Dimensions

9.8 " x 4.4 " x 1.5 " Inch

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (ASUS) web site.
