ASUS H61M-A Motherboard
LGA1155, H61(B3 Stepping), 2xDDR3-1333, 1xPCI-Ex16 v3.0, 4xSATA-II, 1xGigLAN, 8Chl-HD, VGA, DVI, HDMI, mATX

No Longer Available

Part Number:

219621

(?) Brand:

ASUS Web Site

Manuf No:

H61M-A
H61MA

Shipping Weight:

2 KG (Includes product packaging)
Estimate Shipping

Add to wishlist

Write a Review

Details Files Images & Video

All stock codes associated to this product

H61MA, H61M-A

H61M-A

Overview

Precise Digital Power Design and High-definition Visual Enjoyment with Native HDMI/DVI outputs

DIGI+ VRM Digital Power Design
UEFI BIOS - EZ Mode - Flexible & Easy BIOS Interface
HDMI & DVI Outputs - High-definition Visual Enjoyment
EPU - Energy Efficiency All Around
Superior Components -100% All Solid Capacitors & Extra Durable Stainless Steel Back I/O
Windows 8 Ready Assured Compatibility

Windows 8 Exclusive Features

Fast Boot

Instant OS Login

ASUS has released new hardware and software designs to shorten system boot-up time to 2-seconds* for a smoother user experience that removes annoying delays under Windows 8, and even previous versions of Windows. Faster system boot and restart means Windows starts quicker and higher efficiency - No more waiting around.

ASUS Boot Setting

Multi-startup Options

Thanks to ASUS Windows 8 hardware optimization, ASUS Boot Setting provides better flexibility in customizing your PCs startup process. You can enter the BIOS directly with one click through a user-friendly interface, and quickly select your preferred system boot up method: either get to the OS in seconds or opt for regular boot up. Whatever your choice, settings are saved and persistent, with no need to choose every time you power on.

CPU, Chipset and Graphics Features

LGA1155 socket for Intel 3rd/2nd Generation Core i7/Core i5/Core i3/ Pentium / Celeron Processors

This motherboard supports Intel 3rd/2nd Generation Core i7/Core i5/Core i3/ Pentium / Celeron Processors in LGA1155 package with memory and PCI Express controllers integrated to support 2-channel (2 DIMMs) DDR3 memory and 16 PCI Express 3.0 or 2.0 lanes. This provides great graphics performance. Intel 3rd/2nd Generation Core i7/Core i5/Core i3/ Pentium / Celeron Processors are among the most powerful and energy efficient CPUs in the world.

Intel H61 Express Chipset

The Intel H61 Express Chipset is the latest single-chipset design to support the new 1155 socket Intel Core i7 / Core i5 / Core i3 2nd generation processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability.

Dual-Channel,DDR3 2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1600/1333/1066 MHz support

The motherboard supports DDR3 memory that features data transfer rates of DDR3 2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1600/1333/1066 MHz to meet the higher bandwidth requirements of the latest 3D graphics, multimedia, and Internet applications. The dual-channel DDR3 architecture enlarges the bandwidth of your system memory to boost system performance.

Due to the CPU behayior,DDR3 2133/1866 MHz memory module will run at DDR3 2000/1800 MHz frequency as default

PCIe 3.0 Ready

The latest PCI Express bus standard delivers improved encoding for twice the performance of current PCIe 2.0. Total bandwidth for a x16 link reaches a maximum of 32GB/s, double the 16GB/s of PCIe 2.0 (in x16 mode). PCIe 3.0 provides users unprecedented data speeds, combined with the convenience and seamless transition offered by complete backward compatibility with PCIe 1.0 and PCIe 2.0 devices. Its a must-have feature for PC users aiming to improve and optimize graphics performance, as well as have the latest, most future-proof technology.

PCIe 3.0 speed is supported by Intel 3rd generation Core processors.

ASUS Exclusive Features

HDMI & DVI Outputs

High-definition Visual Enjoyment

Enjoy high quality visuals with a digital display monitor via HDMI or DVI output. High-Definition Multimedia Interface (HDMI) is a set of digital video standards that delivers mulit-channel audio and uncompressed digital video for full HD 1080p visuals through a single cable. Supporting HDCP copy protection such as HD DVD and Blu-ray discs, HDMI provides you with the highest quality home theater experience.

DIGI+ VRM Digital Power Design

ASUS motherboards using the Intel H61 chipset employ precise digital voltage regulation for the CPU, called DIGI+ VRM (Voltage Regulation Modules) digital power design. The CPU voltage and VRM frequency are adjusted via either carefully developed automated modes, or by using user-defined profiles. The effect is that DIGI+ VRM technology ensures greater energy efficiency and the best possible PC stability. Boosted by world-renowned ASUS quality, it creates an ideal computing platform for a diverse range of applications, from gaming to multimedia or office work and heavy multitasking. Engineered and tested to assure unmitigated performance, ASUS H61 boards with DIGI+ VRM remain efficient and stability, for reliable application in every scenario.

Superior Components. Excellent Quality and Durability

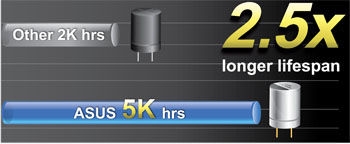

100% All High-quality Solid Capacitors

ASUS high-quality solid capacitors assure a 5,000 hours lifespan equivalent to 2.5 times longer than traditional capacitors. All capacitors pass testing under temperatures as high as 105 degree and meet Japanese Industrial Standards to provide excellent durability and enhanced thermal capacity.

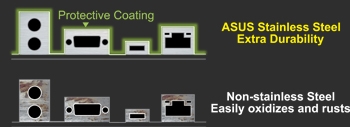

Extra Durable Stainless Steel Back I/O

ASUS Motherboard back I/O panels are made from strong and corrosion-resistant stainless steel, which is bonded with a thin layer of chromium oxide to enhance the anti-corrosion properties. Thats why ASUS stainless steel back I/O panels have a usage life three times longer compared to ordinary panels.

Network iControl

Real-time Network Bandwidth Control

With a single-click on/off button, the application currently in use has its data and network bandwidth prioritized over other programs. Moreover, you can prioritize your favorite software easily by configuring profiles through the intuitive user interface. Within the profile, programs can be pre-scheduled to run in a specific time period to avoid network congestion and long-waits on downloads. Auto PPPoE network connection provides a one-step setup for enhanced online convenience. Overall, it's an intuitive network bandwidth control center.

AI Suite II

One stop Access to Innovative ASUS Features

With its user-friendly interface, ASUS AI Suite II consolidates all the exclusive ASUS features into one simple to use software package. It allows users to supervise , energy management, fan speed control, voltage and sensor readings. This all-in-one software offers diverse and ease to use functions, with no need to switch back and forth between different utilities

UEFI BIOS(EZ Mode)

Full-scale Performance Tuning with Easy BIOS Interface

Media-renowned UEFI BIOS offers the first mouse-controlled graphical BIOS designed with selectable modes and native support for hard drives over 2.2 TB. Users can also drag and drop boot priorities with the exclusive EZ mode, while Advanced Mode offers intricate settings.

New upgrade! Quick and easy info for enhanced system control

F12 BIOS snapshot hotkey
F3 Shortcut for most accessed info
ASUS DRAM SPD (Serial Presence Detect) info, detecting faulty DIMMs and helping with difficult POST situations

ASUS FanXpert

Active Quiet & Cool

ASUS Fan Xpert intelligently allows you to adjust the CPU and chassis fan speeds according to different ambient temperatures caused by different climate conditions in different geographic regions and your PCs loading. The built-in variety of useful profiles offer flexible controls of fan speed to achieve a quiet and cool environment.

ASUS Anti-Surge Protection

Protect Your Device

Anti-Surge Protection Design detects overvoltage conditions and prevents voltage surges from spreading in real time. It also actively cuts off the overvoltage supply to protect the system.

Real-time over voltage detection.
Active protection against potential damage to your motherboards and systems.

EPU

Energy Efficiency All Around

Tap into the world's first real-time PC power saving chip through a simple onboard switch or AI Suite II utility. Get total system-wide energy optimization by automatically detecting current PC loadings and intelligently moderating power consumption. This also reduces fan noise and extends component longevity!

RoHS

GreenASUS and ErP Ready

The motherboard is European Unions Energy-related Products (ErP) ready, and ErP requires products to meet certain energy efficiency requirements in regards to energy consumptions. This is in line with ASUS vision of creating environment-friendly and energy-efficient products through product design and innovation to reduce carbon footprint of the product and thus mitigate environmental impacts.

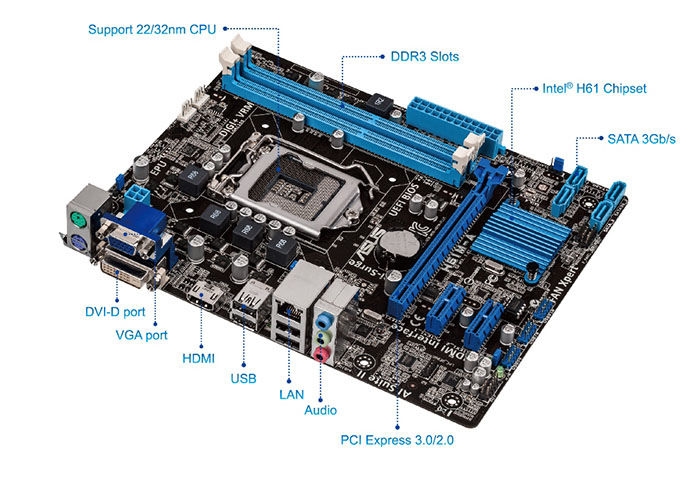

H61M-A Product Overview

Specifications:

CPU

Intel Socket 1155 for 3^rd/2^nd Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors
Supports Intel 22 nm CPU
Supports Intel 32 nm CPU
Supports Intel Turbo Boost Technology 2.0
* The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list

Chipset

Intel H61(B3)

Memory

2 x DIMM, Max. 16GB, DDR3 2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1600/1333/1066 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
* 1600MHz and higher frequency is supported by Intel 3rd generation processors.
* Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists).
* Due to OS limitation, when installing total memory of 4GB capacity or more, Windows 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows OS when you want to install 4GB or more memory on the motherboard.
* Due to the CPU behavior, DDR3 2133/1866MHz memory module will run at DDR3 2000/1800MHz frequency as default.

Graphic

Integrated Graphics Processor
Multi-VGA output support : HDMI/DVI/RGB ports
- Supports HDMI with max. resolution 1920 x 1200 @ 60 Hz
- Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 2048 x 1536 @ 75 Hz
Maximum shared memory of 1024 MB

Expansion Slots

1 x PCIe 3.0/2.0 x16
2 x PCIe 2.0 x1

Storage

Intel H61(B3) chipset :

4 x SATA 3Gb/s port(s), blue

LAN

Realtek 8111F, 1 x Gigabit LAN Controller(s)

Audio

Realtek ALC887 8-Channel High Definition Audio CODEC *¹

USB Ports

Intel H61(B3) chipset :

10 x USB 2.0 port(s) (4 at back panel, , 6 at mid-board)

Special Features

ASUS EPU :

- EPU
ASUS Digital Power Design :

- Industry leading Digital 3 +1 Phase Power Design
- ASUS DIGI+ VRM Utility

ASUS Exclusive Features :

- AI Suite II
- Ai Charger
- Anti-Surge
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- Network iControl
- Disk Unlocker

ASUS Quiet Thermal Solution :

- ASUS Fan Xpert

ASUS EZ DIY :

- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2

100% All High-quality Conductive Polymer Capacitors

Back I/O Ports

1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 2.0
3 x Audio jack(s)

Internal I/O Ports

3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
4 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)

Accessories

User's manual
I/O Shield
2 x SATA 3Gb/s cable(s)

BIOS

64Mb Flash ROM, EFI BIOS, PnP, DMI v2.0, WfM2.0, SMBIOS v2.7, ACPI v2.0a,SLP3.0

Manageability

WOL, PXE, PME Wake Up

Support Disc

Drivers
ASUS Utilities
ASUS Update
Anti-Virus Software (OEM Version)

Form Factor

uATX Form Factor
8.9 inch x 7.1 inch ( 22.6 cm x 18 cm )

Note

*1: Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
