ASUS E2KM1I-DELUXE Motherboard
  • Onboard AMD E2-2000 Dual-Core(1.70GHz), AMD FCH A50M (Hudson M1), 2xDDR3, 1xPCI-Ex16 v2.0, 5xSATA-III, 1xeSATA, 1xGigLAN, 8Chl-HD, USB3.0, DVI, HDMI, WiFi, Mini-ITX

IMG 1 of 3
No Longer Available
Part Number:
219628
(?) Brand:
ASUS Web Site
Manuf No:
E2KM1I-DELUXE
E2KM1IDELUXE
Shipping Weight:
2 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
E2KM1IDELUXE, E2KM1I-DELUXE, 90MB0E40M0UAY0, 90MB0E40-M0UAY0, 2703556
E2KM1I-DELUXE

Overview

AMD E2-2000 Mini-ITX Build with vivid graphics and wireless functions for HTPC Enjoyment.

  • Wi-Fi GO! - DLNA Streaming and Remote Desktop Made Easy
  • USB 3.0 Boost - Faster USB 3.0 Transmission with UASP
  • Network iControl - Real-time Network Bandwidth Control
  • USB Charger+ - 3X Faster Charging for All USB Portable Devices

Windows 8 Exclusive Features

Fast Boot


Instant OS Login

ASUS has released new hardware and software designs to shorten system boot-up time to 2-seconds* for a smoother user experience that removes annoying delays under Windows 8, and even previous versions of Windows. Faster system boot and restart means Windows starts quicker and higher efficiency - No more waiting around.

ASUS Boot Setting


Multi-startup Options

Thanks to ASUS Windows 8 hardware optimization, ASUS Boot Setting provides better flexibility in customizing your PCs startup process. You can enter the BIOS directly with one click through a user-friendly interface, and quickly select your preferred system boot up method: either get to the OS in seconds or opt for regular boot up. Whatever your choice, settings are saved and persistent, with no need to choose every time you power on.

CPU, Chipset and Graphics Features

Integrated AMD Dual-Core Processor E2-2000 with AMD Radeon HD 7340 Graphics

This motherboard supports integrated AMD Dual-Core Processor E2-2000 with AMD Radeon HD 7340 Graphics. This revolutionary APU (Accelerated Processing Unit) combines processing power and advanced DirectX 11 graphics in one small, energy-efficient design to enable accelerated performance and an industry-leading visual experience. It features single-channel DDR3 1333 memory support and accelerates data transfer rate up to 2.5GT/s.


AMD® FCH A50M

AMD® FCH A50M is designed to support up to 2.5GT/s interface speed and PCI Express 2.0 x 16 (at x4 speed) graphics. It supports 6 x SATA6Gb/s ports and 14 x USB 2.0 Ports.

ASUS Exclusive Features

Wi-Fi GO!

Connect Your Life The Perfect Fusion of Desktop, Smartphones and Pads

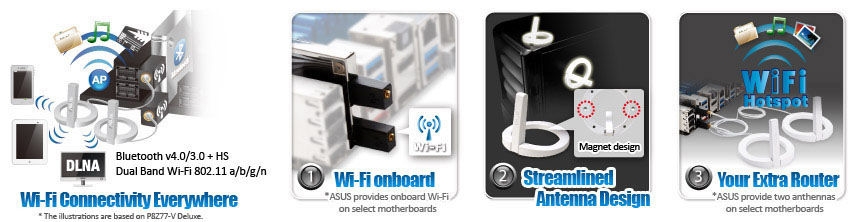

ASUS Wi-Fi GO! makes enjoying home entertainment and remote control capabilities easier than ever by linking PCs, pads, smartphones and TV together. With a Wi-Fi module on board, ASUS Wi-Fi GO! adds a host of useful and free Wi-Fi functions, which provide DLNA streaming so you can enjoy a home theater PC, while also providing remote access to your PC with a smart device. This feature leads the market by integrating Wi-Fi connectivity, DLNA access and all smart devices with a one-stop utility for a futuristic connected lifestyle.

Wi-Fi hotspot setup for convenience: quickly set up and connect anywhere at home thanks to instant soft access point and device detection. Build your network without an extra router!

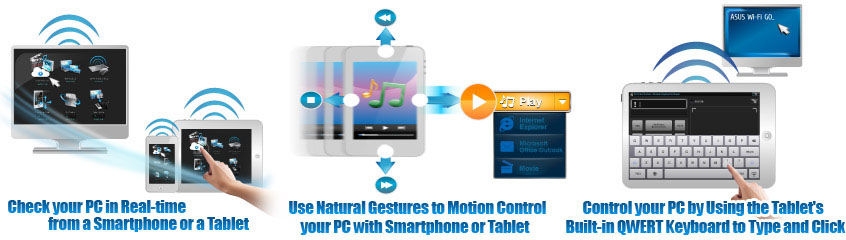

Turn smartphones and tablets into a remote control:

  • Remote Desktop: access your PC from a tablet? No sweat! Control your PC in real-time from a mobile device for complete comfort. This function brings notebook-like convenience, by creating a virtual remote desktop, offering portable access to your data in desktop with a smartphone or pad.
  • Motion control your PC: entertaining and customizable! Using natural gestures, you can move directionally to use applications with a smartphone or tablets motion sensors. For example, in media players you can fast forward, go next, stop, or create a music playing motion control profile. You can even program sensor scenarios to design your own motion-based game!
  • Remote keyboard and mouse: sit back and control your computer by using your tablets built-in QWERTY keyboard to type and click !
    (Ensure to download Wi-Fi GO! Remote to your smart devices either from Android Market or App store.)

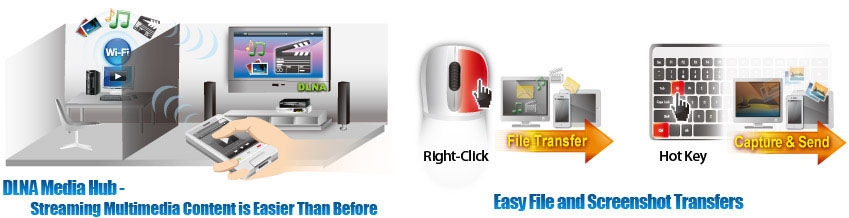

DLNA streaming made easy: enjoy HD content, music and photos from the PC on your DLNA devices via Wi-Fi connectivity, the perfect match for creating your own home theater!

Easy file and screenshot transfers:

File Transfer: send and share files between your PC and smart devices* with only a right click on the mouse.

Capture & Send: capture and send screen shots from your PC to smart devices directly by pressing the hotkey***iPad/iPhone can only send, not receive files from the PC.
 **Hotkey set by users.


Set up Your Home PC with Wi-Fi GO!

Wi-Fi environment setup: connect PC and smart devices on the same home network
Install Wi-Fi GO! software on your PC
Download Wi-Fi GO! Remote to your smart devices (Supported Systems: iOS 4.0 or later & Android 2.3 or later)
Set up complete - get a host of useful free apps with ASUS Wi-Fi GO!

Network iControl

Real-time Network Bandwidth Control

With a single-click on/off button, the application currently in use has its data and network bandwidth prioritized over other programs. Moreover, you can prioritize your favorite software easily by configuring profiles through the intuitive user interface. Within the profile, programs can be pre-scheduled to run in a specific time period to avoid network congestion and long-waits on downloads. Auto PPPoE network connection provides a one-step setup for enhanced online convenience. Overall, it's an intuitive network bandwidth control center.


 USB 3.0 Boost



Faster USB 3.0 Transmission with UASP


New ASUS USB 3.0 Boost technology supports UASP (USB Attached SCSI Protocol), the latest USB 3.0 standard. With USB 3.0 Boost technology, a USB device's transmission speed is significantly increased up to 170%, adding to an already impressive fast USB 3.0 transfer speed. ASUS software automatically accelerates data speeds for compatible USB 3.0 peripherals without the need for any user interaction.

  • Worlds 1st USB 3.0 UASP Support - 170% faster instantly
  • Complete USB 3.0 Solution - Performance boost for most USB devices
  • Simple Plug & Boost - Auto detection design ensures best performance always

AI Suite II


One stop Access to Innovative ASUS Features


With its user-friendly interface, ASUS AI Suite II consolidates all the exclusive ASUS features into one simple to use software package. It allows users to supervise overclocking, energy management, fan speed control, voltage and sensor readings, and even interact with mobile devices via Wi-Fi. This all-in-one software offers diverse and ease to use functions, with no need to switch back and forth between different utilities.

100% All High-quality Conductive Polymer Capacitors


This motherboard uses all high-quality conductive polymer capacitors onboard for durability, improved lifespan, and enhanced thermal capacity.

EPU


Energy Efficiency All Around


Tap into the world's first real-time PC power saving chip through a simple onboard switch or AI Suite II utility. Get total system-wide energy optimization by automatically detecting current PC loadings and intelligently moderating power consumption. This also reduces fan noise and extends component longevity!

ASUS Crystal Sound

DTS Connect


Expand Your PC Audio Experience


To get the most out of your audio entertainment across all formats and quality levels, DTS Connect combines two enabling technologies. DTS Neo:PC upmixes stereo sources (CDs, MP3s, WMAs, internet radio) into as many as 7.1 channels of incredible surround sound. Consumers can then connect their PC to a home theater system.DTS Interactive is capable of performing multi-channel encoding of DTS bitstreams on personal computers, and sending encoded bitstreams out of a digital audio connection (such as S/PDIF or HDMI) designed to deliver audio to an external decoder.

DTS UltraPC II


DTS UltraPC II delivers exceptional 7.1 surround through the most popular PC audio setups - your existing stereo speakers or headphones. In addition to virtual surround, it upgrades original sound to new levels with Audio Restoration, recreating the dynamic range of audio files. Symmetry mode improves the balance of perceived loudness across different input sources and Enhance boosts audio quality through high and low frequency equalization. With these technologies, users experience better home theater audio with ease..

RoHS

GreenASUS and ErP Ready


The motherboard is European Unions Energy-related Products (ErP) ready, and ErP requires products to meet certain energy efficiency requirements in regards to energy consumptions. This is in line with ASUS vision of creating environment-friendly and energy-efficient products through product design and innovation to reduce carbon footprint of the product and thus mitigate environmental impacts.

Specifications:

CPU
AMD APU E2-2000 Dual-Core onboard Processors
Supports AMD Turbo Core Technology

Chipset
AMD FCH A50M (Hudson M1)

Memory
2 x DIMM, Max. 16GB, DDR3 MHz Non-ECC, Un-buffered Memory
Single Channel Memory Architecture
* Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists).
* Due to OS limitation, when installing total memory of 4GB capacity or more, Windows 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows OS when you want to install 4GB or more memory on the motherboard.

Graphic
Integrated AMD Radeon HD 7340 Discrete-Class Graphics
- Supports HDMI with max. resolution 1920 x 1200 @ 60 Hz
- Supports DVI with max. resolution 1920 x 1200 @ 60 Hz

Expansion Slots
1 x PCIe 2.0 x16 (x4 mode)

Storage
Built-in Controller :
5 x SATA 6Gb/s port(s), gray
1 x eSATA port(s), red

LAN
Realtek 8111F, 1 x Gigabit LAN Controller(s)

Wireless Data Network
Wi-Fi 802.11 a/b/g/n
Supports dual band frequency 2.4/5 GHz

Bluetooth
Bluetooth V4.0
Bluetooth V3.0+HS

Audio
Realtek ALC898 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Feature :
- DTS Ultra PC II
- DTS Connect
- Optical S/PDIF out port(s) at back panel

USB Ports
ASMedia USB 3.0 controller :
4 x USB port(s) (2 at back panel, blue)
AMD A50 FCH chipset :
8 x USB 2.0 port(s) (4 at back panel, , 4 at mid-board)

Special Features
ASUS EPU :
- EPU
ASUS Wi-Fi GO!
- Wi-Fi GO! Function: DLNA Media Hub, Smart Motion Control, Remote Desktop, Remote Keyboard & Mouse, File Transfer, Capture & Send
- Wi-Fi GO! Remote for portable Smartphone/Tablet, supporting iOS & Android systems
- Wi-Fi Engine for network sharing and connection: Client Mode, AP Mode
ASUS Exclusive Features :
- AI Suite II
- Ai Charger+
- Anti-Surge
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- Network iControl
- USB 3.0 Boost
ASUS Quiet Thermal Solution :
- Stylish Design Heat-pipe solution
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
100% All High-quality Conductive Polymer Capacitors

Back I/O Ports
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI
1 x HDMI
1 x eSATA
1 x LAN (RJ45) port(s)
2 x USB 3.0
4 x USB 2.0
1 x Optical S/PDIF out
3 x Audio jack(s)
2 x Wi-Fi antenna port(s)

Internal I/O Ports
1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
5 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Chassis Intrusion connector(s)

Accessories
User's manual
ASUS Q-Shield
2 x SATA 6Gb/s cable(s)
2 x Wi-Fi Ring Moving Antenna(s)

BIOS
64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a, Multi-language BIOS

Manageability
WfM 2.0, DMI 2.0, WOL by PME, PXE

Support Disc
Drivers
ASUS utilities
ASUS Update
Anti-virus software (OEM version)

Form Factor
Mini ITX Form Factor
6.7 inch x 6.7 inch ( 17 cm x 17 cm )
