All stock codes associated to this product
D3W26A, 2322553

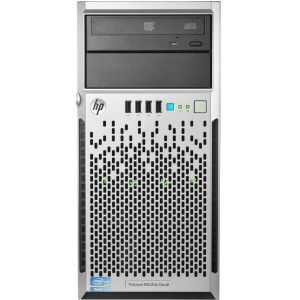

ML310e Gen8 E3-1220v2 X3.1 4-core 1P; 12GB (3x 4GB); 2x 500GB HP 6G SATA 7.2K LFF HDD; SA B120i Cntlr; Dual-port 1Gb 330i NIC; iLO; 460W HP PSU; SATA DVD; SBS 2011 Std w/5x CALs
D3W26A
Brand Name: HP
Form Factor: Micro Tower
Green Compliant: Yes
Maximum Memory: 32 GB
Number of Processors Installed: 1
Number of Processors Supported: 1
Operating System: Windows Small Business Server 2011 Standard
Processor Core: Quad-core (4 Core)
Processor Manufacturer: Intel
Processor Model: E3-1220V2
Processor Speed: 3.10 GHz
Processor Type: Xeon
Product Family: ProLiant ML310e G8
Product Type: Server
RAID Supported: Yes
Rack Height: 4U
Standard Memory: 12 GB
Total Hard Drive Capacity: 1 TB
Specifications:
| Controllers |
| Controller Type: |
Serial ATA/300 |
| RAID Levels: |
0, 1, 1+0 |
| RAID Supported: |
Yes |
| Display & Graphics |
| Graphics Controller Manufacturer: |
Matrox |
| Graphics Controller Model: |
G200 |
| General Information |
| Brand Name: |
HP |
| Manufacturer Part Number: |
D3W26A |
| Manufacturer Website Address: |
www.hp.com |
| Manufacturer: |
Hewlett-Packard |
| Marketing Information: |
The HP ProLiant ML310e Gen8 is perfect entry server for growing business. It provides an affordable and steadfast solution to small and medium business for small and medium business who are budget conscious and who have no in-house IT resources.
|
| Product Line: |
ProLiant |
| Product Model: |
D3W26A |
| Product Name: |
ProLiant ML310e G8 D3W26A Server |
| Product Series: |
ML310e G8 |
| Product Type: |
Server |
| I/O Expansions |
| Number of 3.5" Bays: |
4 |
| Number of External 5.25" Bays: |
2 |
| Number of PCI Express x16 Slots: |
1 |
| Number of PCI Express x4 Slots: |
1 |
| Number of PCI Express x8 Slots: |
2 |
| Number of Total Expansion Bays: |
6 |
| Number of Total Expansion Slots: |
4 |
| Interfaces/Ports |
| Network (RJ-45): |
Yes |
| Remote Management: |
Yes |
| Total Number of USB Ports: |
10 |
| Memory |
| Maximum Memory: |
32 GB |
| Memory Card Reader: |
Yes |
| Memory Card Supported: |
Secure Digital (SD) Card |
| Memory Standard: |
DDR3-1600/PC3-12800 |
| Memory Technology: |
DDR3 SDRAM |
| Number of Total Memory Slots: |
4 |
| Standard Memory: |
12 GB |
| Miscellaneous |
| Certifications & Standards: |
- ACPI 2.0b Compliant
- PCIe 3.0 Compliant
- PXE Support
- WOL Support
- Microsoft Logo Certifications
- FCC Rating Class B
- CISPR 22
- EN55022
- EN55024
- FCC CFR 47, Pt 15
- ICES-003
- CNS13438
- GB9254
- K22
- K24
- EN 61000-3-2
- EN 61000-3-3
- EN 60950-1
- IEC 60950-1
|
| Compatibility: |
- VMware
- Microsoft Windows Server
- Red Hat Enterprise Linux (RHEL)
- SUSE Linux Enterprise Server (SLES)
|
| Green Compliance Certificate/Authority: |
WEEE |
| Green Compliant: |
Yes |
| Package Contents: |
- ProLiant ML310e G8 D3W26A Server
- 6' Country Specific NEMA Power Cord
|
| Network & Communication |
| Ethernet Technology: |
Gigabit Ethernet |
| Physical Characteristics |
| Depth: |
475.2 mm |
| Form Factor: |
Micro Tower |
| Height: |
368.3 mm |
| Rack Height: |
4U |
| Weight (Approximate): |
11.47 kg |
| Width: |
175.0 mm |
| Power Description |
| Input Voltage: |
110 V AC |
| Input Voltage: |
220 V AC |
| Maximum Power Supply Wattage: |
460 W |
| Number of Power Supplies Installed: |
1 |
| Processor & Chipset |
| 64-bit Processing: |
Yes |
| Cache: |
8 MB |
| Chipset Manufacturer: |
Intel |
| Chipset Model: |
C204 |
| Direct Media Interface: |
5 GT/s |
| Hyper-Threading: |
No |
| Number of Processors Installed: |
1 |
| Number of Processors Supported: |
1 |
| Processor Core: |
Quad-core (4 Core) |
| Processor Manufacturer: |
Intel |
| Processor Model: |
E3-1220V2 |
| Processor Speed: |
3.10 GHz |
| Processor Type: |
Xeon |
| Software |
| Operating System: |
Windows Small Business Server 2011 Standard |
| Storage |
| Hard Drive Configuration: |
2 x 500 GB |
| Hard Drive Interface: |
Serial ATA/600 |
| Hard Drive RPM: |
7200 |
| Number of Hard Drives: |
2 |
| Total Hard Drive Capacity: |
1 TB |
| Warranty |
| Limited Warranty: |
1 Year |
