With a single-click on/off button, the application currently in use has its data and network bandwidth prioritized over other programs. Moreover, you can prioritize your favorite software easily by configuring profiles through the intuitive user interface. Within the profile, programs can be pre-scheduled to run in a specific time period to avoid network congestion and long-waits on downloads. Auto PPPoE network connection provides a one-step setup for enhanced online convenience. Overall, it's an intuitive network bandwidth control center.
AI Suite II
One-stop Access to Innovative ASUS Features
With its user-friendly interface, ASUS AI Suite II consolidates all exclusive ASUS features into one simple-to-use package. It allows users to supervise overclocking, energy management, fan speed, voltage, and sensor readings. This all-in-one software offers diverse and easy to use functions, with no need to switch back and forth between different utilities.
ASUS Anti-Surge Protection
Anti-Surge Protection Design detects overvoltage conditions and prevents voltage surges from spreading in real time. It also actively cuts off the overvoltage supply to protect the system.
1. Real-time over voltage detection.
2. Active protection against potential damage to your motherboards and systems.
Fan Xpert
ASUS Fan Xpert intelligently allows you to adjust the CPU and chassis fan speeds according to different ambient temperatures caused by different climate conditions in different geographic regions and your PCs loading. The built-in variety of useful profiles offer flexible controls of fan speed to achieve a quiet and cool environment.
ESD
Protect Your Computer with ESD Guards. Electrostatic discharge (ESD) conditions can happen while plugging or unplugging any USB peripherals-causing damage to the computer. ASUS ESD Guards clamp the ESD voltage and shunt the majority of the ESD current away for a more reliable computing environment.

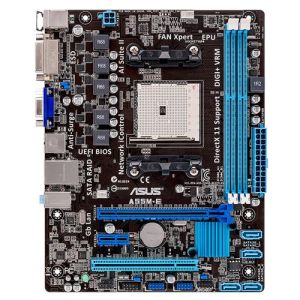

A55M-E Product Overview
Specifications:
CPU
AMD Athlon/A- Series Processors
Supports CPU up to 4 cores
Supports AMD Turbo Core 3.0 Technology
Chipset
AMD A55 FCH (Hudson D2)
Memory
2 x DIMM, Max. 32GB, DDR3 1866/1600/1333/1066 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Support AMD Memory Profile (AMP) memory
* The Max. 32GB memory capacity can be supported with DIMMs of 16GB (or above). ASUS will update QVL once the DIMMs are available on the market.
* Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists).
Graphic
Integrated AMD Radeon HD 7000/8000 Series Graphics in A-series APU
- Supports DVI with max. resolution 2560 x 1600 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1600 @ 60 Hz
AMD Dual Graphics technology support *
Supports DirectX 11
Expansion Slots
1 x PCIe 2.0 x16
1 x PCIe 2.0 x1
1 x PCI
Storage
4 x SATA 3Gb/s port(s), blue
Support Raid 0, 1, 10, JBOD
LAN
1 x Gigabit LAN Controller(s)
Audio
Realtek ALC887-VD 8-Channel High Definition Audio CODEC
USB Ports
AMD A55 FCH (Hudson D2) chipset :
8 x USB 2.0/1.1 port(s) (4 at back panel, , 4 at mid-board)
Special Features
ASUS EPU :
- EPU
ASUS Digital Power Design :
- ASUS DIGI+ VRM Utility
ASUS Power Design :
- 3 +2 Phase Power Design
ASUS Exclusive Features :
- AI Suite II
- Anti-Surge

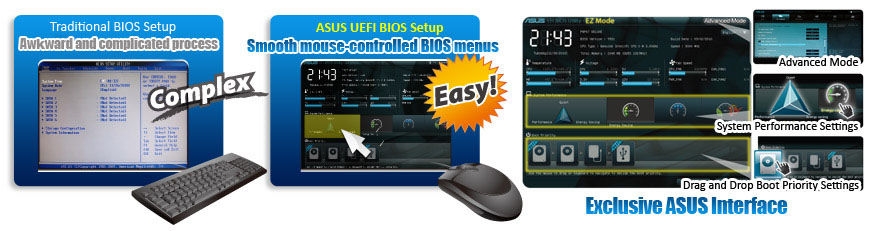

- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- Network iControl
ASUS Quiet Thermal Solution :
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
100% All High-quality Conductive Polymer Capacitors

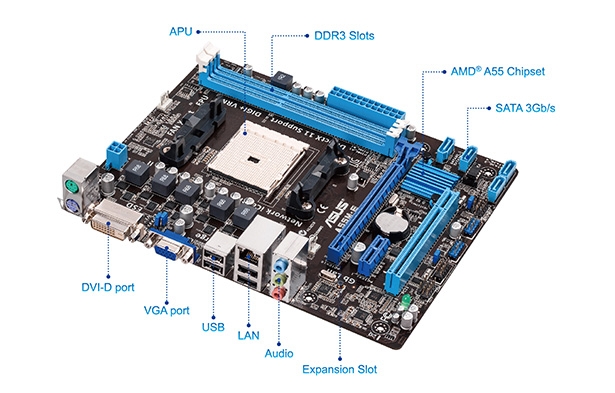

Back I/O Ports
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI
1 x D-Sub
1 x LAN (RJ45) port(s)
4 x USB 2.0
3 x Audio jack(s)
Internal I/O Ports
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x COM port(s) connector(s)
4 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x System panel(s)
Accessories
User's manual
I/O Shield
2 x SATA 3Gb/s cable(s)
BIOS
32 Mb Flash ROM, UEFI BIOS, PnP, DMI v2.0, WfM2.0, SM BIOS V2.6, ACPI V2.0a
Support Disc
Drivers, ASUS utilities, ASUS Update, Anti-virus software (OEM version)
Form Factor
uATX Form Factor
8.9 inch x 7 inch ( 22.6 cm x 17.8 cm )
Note
Refer to https://www.amd.com/us/products/technologies/dual-graphics/Pages/dual-graphics.aspx#3 for the discrete GPUs which support Dual Graphics technology
