All stock codes associated to this product
Z77AG45GAMING, Z77A-G45-GAMING

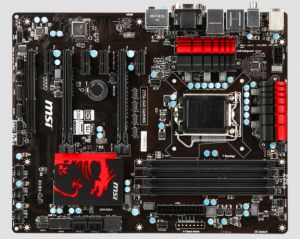

Z77A-G45 GAMING
Intel Z77 Express Chipset
- Supports 3rd Gen & 2nd Gen Intel Core / Pentium / Celeron processors for LGA 1155 socket
- DDR3-3000 (OC) Memory
- USB 3.0 + SATA 6Gb/s
- Killer Ethernet: Kill Your Lag
- Military Class III: Top Quality & Stability
- OC Genie II: Overclock in 1 Second
- Click BIOS II: World's 1st UEFI and Software Graphical User Interface
- PCI Express Gen 3: World's 1st PCI Express Gen 3 Motherboard Brand
- Multi-GPU Support: NVIDIA SLI & AMD CrossFire Support
- Sound Blaster Cinema: Realistic Surround Sound Experience
- Gaming Device Port: Optimized with Triple Gold-plating for High Frequency Gaming Devices
- Total Fan Control: Optimize All Fan Speed As You Wish
- Lucid Virtu MVP: Uncompromised Game Response Performance
Let the Games Begin
MSI Z77 GAMING motherboards are designed to provide gamers with best-in-class features and technology. Backed by the imposing looks of MSI's dragon, each motherboard is an engineering masterpiece tailored to gaming perfection.
The Best Gaming Weapons at Hand
- The highest frag and the lowest lag with Killer™ E2200
- Game networking
- Military Class III components
- Gaming device port
- Optimized for multiple graphics cards
- Boosting performance thanks to OC Genie II
- Top quality audio solution with Sound Blaster Cinema
- Supports DDR3 3000 memory for super fast loading

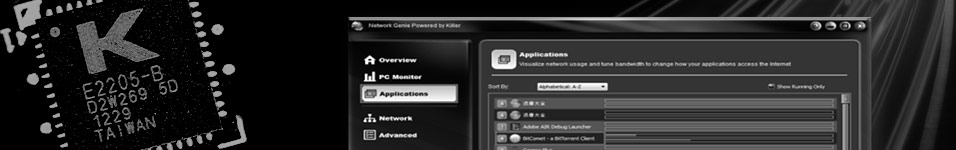

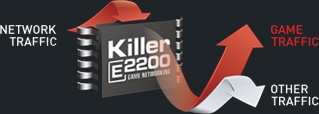

Killer™ E2200 Game Networking
Kill Your Lag!
The Killer™ E2200 Intelligent Networking Platform is built for maximum networking performance for online games and high-quality streaming media. Featuring Advanced Stream Detect™, Killer E2200 automatically detects and accelerates game traffic ahead of other network traffic for smoother, stutter-free in-game performance and the competitive edge. With this exclusive, automatic traffic prioritization, games and real-time chat get priority over low-level system chatter, giving you the lowest latency for game data on the most controllable network hardware available.
Through the detection and prioritization of gaming traffic you can finally fully utilize your network without fear of being kicked from an on-line game because of high ping. This enables true multi-tasking without manually enabling or disabling applications, updates and installations. Killer networking actually allows you to use your PC 24 hours a day.

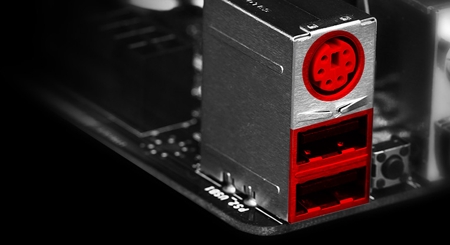

Gaming Device Port
You want more FPS, lower ping, but why use a pro-gaming mouse with old-fashioned standards? MSI Gaming Device Port is optimized for high polling rate mice (500 to 1000 Hz) which lowers your mouse's response time from 8 milliseconds to 1 millisecond! This gives a much smoother mouse response in games. The additional gold plating on the ports enhances the durability drastically and ensures your PS/2 and USB ports are always working when you ship out to a LAN party.
Gaming Benefits
- More responsive
- Smoother gameplay
- Faster reactions
Technical Benefits
- 3x more gold than regular connectors
- 10x longer lifetime when plugging and unplugging
- prevents oxidation
Top Quality Audio With Sound Blaster Cinema
Hear your enemies perfectly, even on an ear-drum shattering battlefield. Thanks to Sound Blaster Cinema, you're getting amazing surround sound with just stereo headphones. Your most important gaming sound effects are reproduced crystal clear allowing you to focus on your game even during extremely long gaming sessions.
Powered by the SBX Pro Studio technologies, Sound Blaster Cinema enables you to clearly hear specific sounds in gaming environments, making your ears a decisive tool on the battlefield.

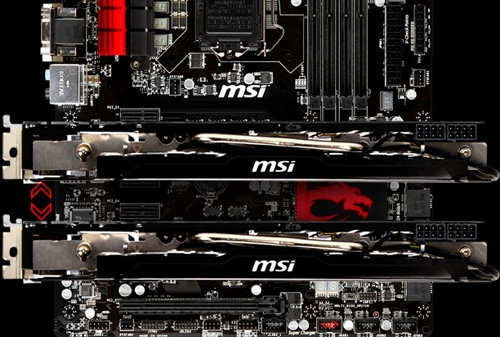

Optimized for Multiple Graphics Cards
MSI Z77 GAMING motherboards feature one or more PCI-Express 3.0 slots, perfectly aligned and with enough space for an optimal airflow when using multiple graphics cards. That way, you will never have to worry about an overheating PC, while you are enjoying the best graphics jumping off from your monitor when running a NVIDIA® SLI™ or AMD Crossfire gaming setup.
Military Class III Components
Military Class III components is the next step in high quality components. The Super Ferrite Choke and Solid CAP will make sure that your PC runs more stable under extreme gaming conditions.
Solid CAP
With their aluminum core design, Solid CAP's have been a staple in high-end design mainboard designs and provides lower Equivalent Series Resistance (ESR) as well as its over-10-year lifespan.
Super Ferrite Choke
Super Ferrite Chokes use a Ferrite core that is Super-Permeable. This allows the Super Ferrite Chokes to run at a 35 degree Celsius lower temperature, have a 30% higher current capacity, a 20% improvement in power efficiency and better overclocking power stability.

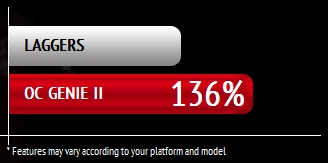

OC Genie II
MSI is the world's first to built-in the OC Genie automatically overclocking technology on its motherboard platforms. Now we have implemented the revolutionary OC Genie II button on our GAMING motherboard series. Just press the OC Genie button on the motherboard, or enable the OC Genie function in the BIOS menu and the system's performance will be boosted.

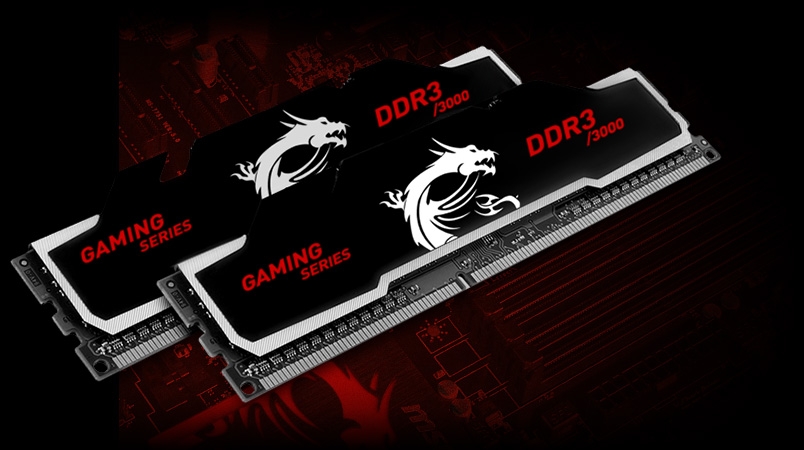

Supports DDR3-3000 (OC) Memory for Super Fast Loading
Tired of everlasting loading screens? The MSI Z77 Gaming series motherboards offer support for DDR3 3000 MHz memory modules. That way, you will not have to miss out on any gaming action because your in-game levels will be loaded superfast!
Note: The gaming memory module photo is for reference only. Not a retail product.
Click BIOS II
Click BIOS 2 gives an easy to navigate full featured graphical user interface to the traditional BIOS features. Support-ing the latest hardware like 3TB hard drives and a wide range of languages.
Total Fan Control
Total Fan Control gives you complete control of all your fans to enable you to find the best balance of fan performance and silence. Because you can also monitor and record all your fan information, a great pool of information is available to base the fan settings on.
Dragon Heat-sink
With an awesome product comes an inspiring heat sink! Styled after the iconic MSI GAMING dragon. The heat sink is oversized to provide the best thermal transfer and heat dissipation to enable your PC to just game 24 hours per day.
Specifications:
 CPU
Supports3rd Gen Intel Core i7 / Core i5 / Core i3 / Pentium / Celeron processors for LGA 1155 socket
Please refer to CPU Support for compatible CPU; the above description is for reference only.
|
 |
Chipset
Intel Z77 Chipset
|
|
|
Main Memory
Support four DDR3 DIMMs 1066/1333/1600*/1866*/2000*/2133*/2200*/2400*/2600*/2667*/2800*/3000*(OC) DRAM (32GB Max)
- Supports Dual-Channel mode
* To support DDR3 2200*/2400*/2600*/2667*/2800*(OC), you must install an Intel 22nm CPU
|
|
Slots
2 x PCIe 3.0 x16 slots
1 x PCIe 2.0 x16 slot
- PCI_E7 supports up to PCIe 2.0 x4 speed
4 x PCIe x1 slots
|
|
On-Board SATA
SATAII controller integrated in Intel Z77chipset
- Up to 3Gb/s transfer speed.
- Supportsfour SATAII ports (SATA3~6) by Z77
SATAIII controller integrated in Intel Z77chipset
- Up to 6Gb/s transfer speed.
- Supportstwo SATAIII ports (SATA1~2) byZ77
RAID
- SATA1~6 support Intel Rapid Storage Technology enterprise (AHCI/ RAID 0/ 1/ 5/ 10) by Intel Z77
|
|
USB 3.0
4 x USB 3.0 ports by Intel Z77 (rear x 2, front x 2)
|
|
Audio
Chipset integrated by Realtek ALC892
- Flexible 8-channel audio with jack sensing
- Compliant with Azalia 1.0 Spec
|
|
LAN
Supportsone PCI Express LAN 10/100/1000 Fast Ethernet killer E2205
|
|
Internal I/O Connectors
- ATX 24-Pin power connector
- 8-pin ATX 12V power connector
- CPU x 1 / System x 4 FAN connectors
- 1 x Clear CMOS jumper
-4 x Serial ATAII connectors
-2 x Serial ATAIII connectors
- 3 x USB 2.0 connectors
- 1 x USB 3.0 connector
- 1 x Serial port connector
- 1 x TPM Module connector
- 1 x Front Panel Audio connector
- 1 x Front Panel connector
- 1 x Chassis Intrusion connector
|
|
Back Panel I/O Ports
- 1 x PS/2 keyboard/ mouse port
- 1 x Clear CMOS button
- 1 x Coaxial S/PDIF-out port
- 1 x Optical S/PDIF-out port
- 4 x USB 2.0 ports
- 2 x USB 3.0 ports
-1 x 6 in 1 audio jack
- 1 x HDMI port with max. resolution up to 1920x1200 @60Hz
- 1 x DVI port with max. resolution up to 1920x1200 @60Hz
- 1 xGradphicsCardport with max. resolution up to 2048x1536 @75Hz
MSI Reminds You...
HDMI, DVI-D & Graphics Card ports support dual-display function by any two output ports (HDMI+DVI,DVI+VGA or VGA+HDMI).
|
|
BIOS
The motherboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.
|
|
Dimension
304.80cm(L) x 243.84cm(W) ATX Form Factor
|
|
Mounting
9 mounting holes.
|
