VT-FD8363 | Vivotek FD8363 Fixed Dome Network Camera - 2 Megapixel CMOS

Payal - Techbuy Home Computers Custom PC Systems Tablets Networking Printers Phones Point of Sale Gaming

HOME / Back -> Surveillance | Security -> Cameras -> Vivotek

Vivotek FD8363 Fixed Dome Network Camera - 2 Megapixel CMOS Sensor, 30 fps @ 1920x1080, Vandal-Proof IK10-rated And Weather-Proof IP66-Rated Housing, Built-In MicroSD/SDHC/SDXC Card Slot - White

No Longer Available

Part Number:

221431

(?) Brand:

Vivotek

Manuf No:

VT-FD8363
VTFD8363

Shipping Weight:

2 KG (Includes product packaging)
Estimate Shipping

Date Added:

20/5/2013

Add to wishlist

Write a Review

Details Files Finance Images & Video

All stock codes associated to this product

VTFD8363, VT-FD8363, II18478

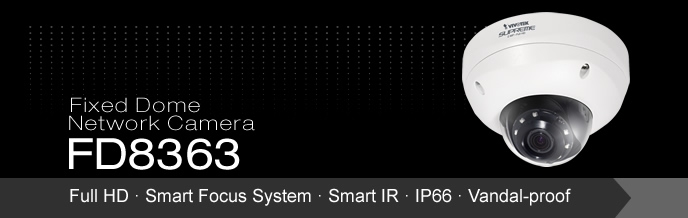

Full HD Smart Focus System Smart IR IP66 Vandal-proof Fixed Dome Network Camera FD8363

Overview

VIVOTEK FD8363 is a professional outdoor dome network camera, offering 2-Megapixel or 1080p Full HD resolution with superb image quality up to 30 fps. As with other true day/night models, the camera comes with a removable IR-cut filter and 15-meter IR illuminators to provide great clarity 24 hours a day. It is especially suitable for monitoring wide open outdoor areas such as building entrances, airports, or applications requiring accurate identification.

For installers, properly adjusting the focus of a megapixel network camera can be difficult due to the image detail. Thus, VIVOTEK has introduced the revolutionary Smart Focus System, including Easy Focus Button and Remote Focus to make installation and image adjustment easier. VIVOTEK has adopted lenses with a built-in stepper motor that the installer can use to remotely control the focal length and precisely adjust the camera focus, offering hassle-free installation and maintenance.

The IP66-rated housing is designed to help the camera body withstand rain and dust and ensures operation under a multitude of harsh weather conditions, while its metal vandal-proof housing effectively provides robust protection from vandalism. With other advanced features such as WDR enhanced, tamper detection, 802.3af compliant PoE, microSD/SDHC/SDXC card slot for on-board storage, video cropping, and e-PTZ functionality, the FD8363 provides the most robust solution suitable for demanding outdoor environments.

Features

2-Megapixel CMOS Sensor
30 fps @ 1920x1080
3 ~ 9 mm Motorized, DC-iris Lens
Removable IR-cut Filter for Day & Night Function
Built-in IR Illuminators, Effective up to 15 Meters
Built-in Smart IR to Avoid Overexposure
WDR Enhancement for Unparalleled Visibility in High Contrast Environments
Real-time H.264, MPEG-4, and MJPEG Compression (Triple Codec)
Smart Focus System for Remote and Easy Focus Adjustment
Vandal-proof IK10-rated and Weather-proof IP66-rated Housing
Built-in 802.3af Compliant PoE
Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage

These specifications are subject to change without notice.

Specifications:

System Information

CPU	Multimedia SoC (System-on-Chip)
Flash	128 MB
RAM	256 MB

Camera Features

Image sensor	1/2.7" Progressive CMOS
Maximum Resolution	1920x1080
Lens Type	Vari-focal, remote focus
Focal Length	f = 3 ~ 9
Aperture	1.2 (wide), 2.1 (tele)
Auto-iris	DC-iris
Field of View	38 ~ 104 (horizontal) 22 ~ 71 (vertical) 43 ~ 111 (diagonal)
Shutter Time	1/5 sec. to 1/32,000 sec.
WDR Technology	WDR Enhanced
Day & Night	Removable IR-cut filter for day & night function
Minimum Illumination	0.08 Lux @ F1.2, 50 IRE ( Color ) 0.001 Lux @ F1.2, 50 IRE ( B/W )
Pan range	360
Tilt range	180
Pan / Tilt / Zoom	ePTZ 48x digital zoom (4x on IE plug-in, 12x built-in)
IR Illuminators	Built-in IR illuminators, effective up to 15 meters IR LED*8
On-board Storage	MicroSD/SDHC/SDXC card slot

Video

Compression	H.264, MJPEG & MPEG-4
Maximum Frame Rate	H.264: 30 fps at 1920x1080 MPEG-4: 30 fps at 1920x1080 MJPEG: 30 fps at 1920x1080
Maximum Streams	4 simultaneous streams
S/N Ratio	Above 52 dB
Dynamic Range	55 dB
Video Streaming	Adjustable resolution, quality and bit rate Configurable video cropping for bandwidth saving
Image Settings	Adjustable image size, quality, and bit rate Time stamp, text overlay, flip & mirror Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks Scheduled profile settings

Audio

Audio Capability	Audio input / Audio output (Full duplex)
Compression	GSM-AMR AAC G.711
Interface	External microphone input External line output

Network

Users	Live viewing for up to 10 clients
Protocols	IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP and 802.1X
Interface	10 Base-T / 100BaseTX Ethernet (RJ-45)
ONVIF	Supported, specification available at www.onvif.org

Intelligent Video

Video Motion Detection

Triple-window video motion detection

Alarm and Event

Alarm Triggers	Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection
Alarm Events	Event notification using digital output, HTTP, SMTP, FTP and NAS server File upload via HTTP, SMTP, FTP and NAS server

General

Smart Focus System	Remote focus & easy focus
Connectors	RJ-45 for network/PoE connection Audio input/output AV output AC 24V power input DC 12V power input Digital input1 Digital output1
LED Indicator	System power and status indicator
Power input	12V DC 24V AC IEEE 802.3af PoE Class 3
Power consumption	DC 12V: 6.9 W PoE: 9.3W AC 24V: 8.5W
Dimensions	: 173 mm x 115 mm
Weight	Net: 1220 g
Casing	Vandal-proof IK10-rated metal housing Weather-proof IP66-rated housing
Safety Certifications	CE, C-Tick, FCC Class A, LVD, VCCI
Operating Temperature	Starting Temperature: -10C ~ 50C (14F ~ 122F) Working Temperature: -20C ~ 50C (-4F ~ 122F)
Warranty	36 Months

System Requirements

Operating System	Microsoft Windows 7/Vista/XP/2000
Browser	Mozilla Firefox 7~10 (Streaming only) Internet Explorer 7.x or 8.x
Other Players	VLC: 1.1.11 or above QuickTime: 7 or above
