Vivotek ND8401 Network Video Recorder - 4x Hot-Swap 3.5" SATA I/II HDD, Real-Time 16 Channel Live View & 4-CH Synchronous Playback, RAID 0,1,5,10, H.264, MPEG-4 & MJPEG, USB2.0, 1xRS232, 2xGigLAN

No Longer Available

Part Number:

221433

(?) Brand:

Vivotek

Manuf No:

VT-ND8401
VTND8401

Shipping Weight:

6 KG (Includes product packaging)
Estimate Shipping

Add to wishlist

Write a Review

Details Files Finance Images & Video

All stock codes associated to this product

VTND8401, VT-ND8401

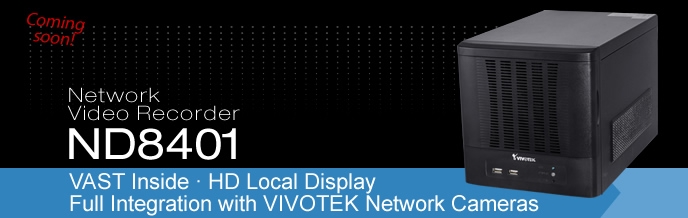

VAST Inside HD Local Display Full Integration with VIVOTEK Network Cameras Network Video Recorder ND8401

Overview

VIVOTEK ND8401 is a 16-CH Network Video Recorder designed for sophisticated recording applications. The unit is equipped with an Intel Dual-core Atom Processor with maximum recording throughput at a robust 96 Mbps. RAID 0/1/5/10 is supported with four HDDs, with an external eSATA port for additional expansion. Like VIVOTEK NVR ND8301, a local display output port is available with full HD resolution (1920x1080), eliminating the need for a separate PC to view video from the unit. Setup of parameters such as IP address, HDD to logical volumes, and basic camera configuration can easily be performed with the setup wizard, making the ND8401 the easiest NVR to use yet. When connecting ND8401 to more than one of the same model of VIVOTEK camera, the "Shepherd" program can be used to duplicate the configuration to multiple cameras.

VIVOTEK's professional software VAST is installed in ND8401 with performance tuning, allowing for simple and effective management of a surveillance system using the LiveClient and Playback programs. As VIVOTEK's camera features are fully integrated into VAST, cutting-edge technologies such as Activity Adaptive Recording can be utilized to conserve bandwidth and optimize recording. A CMS server running VAST software can also directly control the ND8401, and compatibility with the iViewer application allows for remote access to the ND8401 on handheld devices. By integrating all of the components together using VIVOTEK's ND8401, network cameras, VAST and iViewer software, users can realize a fully-featured and robust next-generation surveillance system.

Features - Hardware

Dual-core Intel AtomTM Processor
RAID 0, 1, 5, 10 Storage Solution
4 Bay hot-swap HDD Tray, Max. 12TB
External eSATA Interface
Full HD Local Display
Standalone Desktop NVR Design
Dual Gigabit Ethernet Ports
USB Port* 4
Size: 204mm (W) x 330mm (D) x 215mm (H)

Features - Software

Easy Installation and Configuration (Shepherd/Setup Wizard)
VAST Inside (Live Client/Playback)
Real-time 16-CH Live View & 4-CH Synchronous Playback
H.264, MPEG-4 and MJPEG
Multiple Recording Types & Event Trigger Sources
Multiple Video Search Modes
E-map
Supported by VAST Central Management Software (VAST CMS support to be ready in Q1, 2013)
Full Integration with VIVOTEK Network Cameras
VIVOTEK iViewer support (iOS/Android)

Specifications:

System	CPU: Dual-core Intel Atom^TM RAM: 2GB DDRIII OS: Windows 7 Embedded
Backup	Manual/Scheduled backup
Camera Compatibility	Full integration with VIVOTEK network cameras
EasySetup	"Setup Wizard" for Network/HDD/Camera easy setup
Export	Format: AVI/3GPP/EXE
Language Support	English, French, German, Italian, Spanish, Traditional Chinese, Simplified Chinese, Japanese, Portuguese, Czech
Local LiveView Monitor	Display Layout: 1X1/2X2/3X3/4X4/5X5/1+5/1+12/1+31 E-Map Snapshot PiP Display Performance: MPEG-4: 2 streams 30fps @ 1080p; 16 streams 30fps @ CIF H.264: 1 stream 30fps @ 1080p; 7 streams 30fps @ CIF Auto Patrol (display layout) Pan/Tilt/Zoom control of VIVOTEK cameras Instant event notification Instant Replay: 20 sec., 30 sec., 1 min., 5 min., 15 min. Full HD local display by VGA connector
Local Playback	Display Layout: 1x1/2x2/3x3/4x4/1+5/1+12 Playback Mode: play, pause, stop, next/frame, next/previous time interval, speed control Search Mode: browsing/time/event Bookmark
Mobile APP Support	VIVOTEK iViewer (iOS/Android)
Recording	Throughput: max. 96 Mbps Recording Policy: scheduled recording (event/continuous modes), manual recording Video Compression: H.264/MPEG-4/MJPEG Resolution: up to 5-Megapixel recording Format: 3GPP Auto Recycling: buffer size setting, time setting Activity adaptive recording
Storage	4 x hot-swap 3.5" SATA I/II HDD, up to 12TB 1 x external eSATA interface RAID0,1,5,10
channels	16-CH
Connectors	2 x RJ45, Gigabit 4 x USB2.0 1 x RS232
Networking	IPv4, TCP/IP, HTTP, RTSP/RTP/RTCP, IGMP, SMTP, DHCP, NTP, DNS, DDNS 2 x Ethernet Gigabit ports
Alarm and Event Management	Trigger Source: motion, temperature, tampering, DI/O, IR, PIR, IVA, video lost, recording error, recording status, substation connection status, storage connection status, storage capacity status, license status, network status & memory status Actions: email, start recording, move to the preset position, set DO, GSM short message & send CGI command
Security	5 levels of user roles Multi-level user access with password protection
Dimensions	204mm (W) x 330mm (D) x 215mm (H)
Weight	Net: 5240 g (without HHD)
LED Indicator	1 x Power status 1 x HDD status
Power	Input: AC 100-240 V, 50-60 Hz Power Consumption: max. 58W
Approvals	CE, FCC Class B, VCCI, C-Tick
Operating Environments	Temperature: 0C ~ 40C ( 32F ~ 104F ) Humidity: 20%~95% RH
Warranty	24 months
