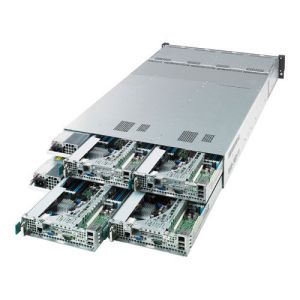

Based on the Intel Socket R E5-2600 processor platform, the latest ASUS flagship server offers customers four individual nodes in a 2U space, with 16 DIMM slots supporting up to 512GB R-DIMM memory per node. Features include high efficiency 1+1 1620W 80+ Platinum power supplies, a fully modular design, hot-swap functionality, remote management, and high reliability, making the RS724Q-E7/RS12 an ideal choice for HPC, could computing, data center, and virtualization applications.
The RS724Q-E7/RS12 supports 96 cores in a 2U chassis and 16 DIMM slots for up to 512 GB R-DIMM memory per node, delivering outstanding performance and extreme computing density.
Massive Storage Capacity
Three hot-swappable 3.5 hard drives per node in SATA 3Gb/s provide large amounts of high speed storage for all professional applications.
High Power Efficiency
Built with 1+1 redundant 1620W 80+ Platinum power supplies, the RS724Q-E7/RS12 offers enhanced efficiency for HPC applications. The PSU hot-swap design allows the server to keep working even if one power supply requires maintenance.
Extreme Interconnection Speed for HPC Applications
Onboard InfiniBand QDR (40Gb/s) makes the RS724Q-E7/RS12 highly available for HPC applications with high bandwidth and low latency.
Modular Design for Independent Maintenance
The RS724Q-E7/RS12 utilizes several considerate designs for easy maintenance: hot-swappable hard drives, fans and power supplies, plus hot-pluggable nodes for effortless online service and replacement. Each node has its own front panel for the convenience of separate operation and caretaking.
Comprehensive RAID
Optional ASUS RAID PIKE upgrade kits are supported. With SAS/SATA 6G PIKE card, users can upgrade the server from SATA to SAS storage by simply re-connecting the cable from the onboard SATA to the PIKE riser SAS port, affording greater flexibility.
Complete Server Remote Management
By default web GUI ASMB6-iKVM module, users can have full control of the server with out-of-band server-based management (IPMI 2.0 standard) and 24x7 real-time remote monitoring. ASWM Enterprise software provides one-to-multiple centralized management, including BIOS flashing, remote control, power control and asset management, all through a user-friendly interface.
Specifications
- Processor / System Bus
2 x Socket 2011 per Node
Intel Xeon processor E5-2600 product family (115W)
QPI 6.4 / 7.2 / 8.0 GT/s
- Core Logic
Intel C602-A PCH
Mellanox ConnectX-3 QDR
- Memory
Total Slots : 16 (4-channel per CPU, 8 DIMM per CPU) per Node
Memory Type :
DDR3, 800/1066/1333/1600, RDIMM
DDR3, 1066/1333, UDIMM, with ECC
DDR3, 1066/1333, LRDIMM
Memory Size :
1GB, 2GB, 4GB, 8GB, 16GB, 32GB RDIMM
1GB, 2GB, 4GB, 8GB UDIMM
8GB, 16GB, 32GB LRDIMM
- Expansion Slots
1 * PCI-E x16 (Gen3 x16 Link) (Low profile/HL ) per Node
- Storage
SATA Controller :
Intel C602-A
2 x SATA2 3Gb/s ports
2 x SATA3 6Gb/s ports
Intel Rapid Storage Technology(RST) (For Windows Only)
(Support Software RAID 0, 1, 5 )
SAS Controller :
ASUS PIKE 2008 8-port SAS2 6G RAID card (Optional)
ASUS PIKE 2008/IMR 8-port SAS2 6G RAID card(Optional)
ASUS PIKE 2108 8-port SAS2 6G RAID card (Optional)
- HDD Bays
Total 12 x 3.5" HDD Bays in 2U
(3 * Hot-swap 3.5" HDD Bays per Node )
- Networking
2 x Intel 82574L + 1 x Mgmt LAN
1 x Single Port Mellanox ConnectX-3 QDR InfiniBand with QSFP interface
- Graphic
Aspeed AST2300 with 16MB VRAM
- On Board I/O
per Node
1 x External Serial Port
3 x RJ-45 ports (One for ASMB6-iKVM)
2 x USB 2.0 ports
1 x VGA port
1 x Internal A Type USB Port
- OS Support
Windows Server 2008 R2
Windows Server 2008 Enterprise 32/64-bit
RedHat Enterprise Linux AS5.6/6.0 32/64-bit
SuSE Linux Enterprise Server 11.2 32/64-bit
VMWare ESX4.1/ESXi4.1
*(Subject to change without any notice)
- Management Solution
ASWM Enterprise 2.0
default 1 x ASMB6-iKVM for KVM-over-IP
- Safety
Europe (CE, EN55022 compliance to EU Directive 89/366/EEC)
- EMI
US (FCC, CFR47 Part 15, Class A)
Europe (CE, EN55022 & EN55024)
Australia (C-TICK)
Taiwan (BSMI)
- Dimensions
750mm * 444mm * 87mm
- Form Factor
2U
- Weight
25Kg
- Power Supply
1+1 Redundant 1620W 80PLUS Platinum Power Supply
1000W: 100-120Vac, 12-10A, 50-60Hz, Class 1
1200W: 100-140Vac, 12-10A, 50-60Hz, Class 1
1620W: 180-240Vac, 10.5-8A, 50-60Hz, Class 1
- Environment
Operation temperature: 10 ~ 35 / Non operation temperature: -40 ~ 70
Non operation humidity: 20% ~ 90% ( Non condensing)
- Accessory Box
1 x Bag of Screws
2 x AC Power Cable
1 x Infiniband Support DVD
1 x RS72xQ-E7 Support DVD (15091-02P00000)
1 x RS72xQ-E7 User's Guide (15060-01E00000)
1 x ASWM ENTERPRISE DVD (15091-01J20000)
1 x ASUS ASWM Enterprise User's Guide (15060-01800100)
1x ASMB6-iKVM SDVD (15091-01H00000)
1x ASWM6-iKVM User Guide (15060-01U00000)
- Optional Items
PIKE Riser Card (RE16R-R12B-PIKE) (90-S00CS0160T)
ASUS PIKE 2008 RAID card (90-S00CS0130T)
ASUS PIKE 2008/IMR RAID card (90-S00CS0140T)
ASUS PIKE 2108 H/W RAID card (90-S00CS0150T)
Part List
- Chassis
ASUS R21A 2U Rackmount Chassis
- MB
Z9PH-D16/QDR
- HDD Backplane
1 x SAS/SATA Backplane (BP12LX-R21A) (60SC0150-SC0A01)
- Front Panel Board
2 x Front I/O Board (FPB-R21A) (60SC0140-SC0A01)
- Power Distribution Board
1 x Redundant Power Supply Power Distribution Board
(PDB-R21A) (60SC0170-SC0A02) +
(PSB-R21A) (60SC0160-SC0A01)
- Midplane/Connection Board/Convert Board
1 x Midplane (MP8LX-R21A-M) (60SC0120-SC0A01)
4 x Connection Board (CB-R21A/2600) (61-C1SEJ5-01)
- Riser Card
4 x PCI-E Riser Card (RE16R-R12B) (60SC01D0-SC0B01)
- CPU Heatsink/ Cooler
8 x CPU Heatsink (13071-00090300)
- Power Supply Unit
2 x 1620W Redundant Power Supply (04G180001700)
- HDD Tray
12 x Hot-swap 3.5" HDD trays (13GS1I0AM010-1)
- Fan
4 x System Fans (80mm x 38mm) (13G074187000)
16 x Fan Rivet (13G094011000)
- Air Duct/Mylar
Air Duct (13GS1K00P020-1)
- Mounting Rails
1 x Friction rail kit (13GS190AM042-1)
- Cable
Enclousre:
2x PMBUS CABLE 8P TO 8P L:180MM (14G000611210)
2x FPB CABLE PH2.0 2*8P TO 2*4P*2 (14G030046900)
4x MINI SAS CABLE 36P TO 36P L260 (14G000130900
1x FAN CABLE 2*6 TO 2*4P*2 100/55 (14G000015420)
Node:
1x FPB CABLE 16P/20P*2,L:380MM (14G030042610)
1x W.H CABLE 10P TO 8P,L=700MM (14G030028210)
1x W.H CABLE 6P TO 6P,L=380MM (14G03001120D)
1x SATA CABLE 7P*3 TO 7P*3 L=650 (14G000130801)
1x W.H CABLE 4P TO 3P*2,L=150MM (14G030046810)
1x FAN CABLE 2*4P TO 4P*4,L=115M (14G000015430)
1x PMBUS CABLE 6P TO 6P L:80MM (14001-00070000)
