All stock codes associated to this product
D9L45PA, 887758594865
Z420
(D9L45PA)
Features:
HP workstations are designed to meet the demands of professionals, who work with large and complex datasets and intricate 3D models. HP is a leader in the Workstation industry and our Workstations set the standard for innovation, performance and reliability.

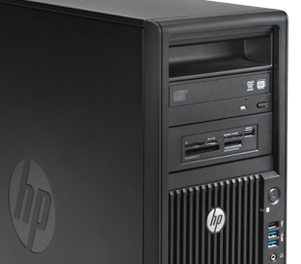

Designed With Ease.
Enjoy the control that comes with being able to swap out parts or make upgrades on your own. The HP Z420 Workstation features a smart chassis that offers tool-less access to the inside, easy configurability and an optional bay handle for seamless deployment. And with optional liquid cooling designed to deliver whisper-quiet performance, the HP Z420 is built to make your work flow more smoothly.
Enjoy Superb Performance.
Achieve the highest performance available in a single-processer personal workstation. The HP Z420 Workstation offers your choice of Intel Xeon E5-1600 and E5-2600 series processors with base clock frequencies of up to 3.6GHz and the new Intel C602 chipset. Delivering support for up to 8 cores of processing power, the HP Z420 never slows you down.
Never Compromise On Graphics.
Built to support next generation PCIe Gen3 graphics, the HP Z420 currently offers a breadth of AMD and NVIDIA professional graphics cards from Pro 2D to high-end 3D, up to the NVIDIA Quadro 6000. With a 600W 90% efficient power supply and support for up to 8 HP Performance Displays, the HP Z420 can maximize your productivity with the freedom of seeing and doing more all at once.
Build It Your Way.
Build the HP Z420 Workstation the way you want with multiple SATA and SAS RAID configuration options that support a wide range of high-performance, high capacity storage solutions. Always know you’re a step ahead with 8 DIMM slots in 4-channel memory architecture, delivering up to 64GB of 1600MHz memory.
Specifications:
|
|
|
Audio
|
Integrated High Definition Realtek ALC262 Audio
|
|
|
|
Expansion slots note
|
The PCIe x8 connectors are open ended, allowing a PCIe x16 card to be seated in the slot.
|
|
Expansion slots
|
2 PCIe Gen3 x16; 1 PCIe Gen3 x8; 1 PCIe Gen2 x8 (x4); 1 PCIe Gen2 x4 (x1); 1 PCI
|
|
|
|
Keyboard
|
HP USB Keyboard
|
|
Pointing device
|
HP USB Optical Mouse
|
|
|
|
Memory slots
|
8 DIMM
|
|
Memory upgrade
|
Upgradeable to 64 GB
|
|
Memory, standard
|
8 GB 1600 MHz DDR3 ECC Unbuffered RAM
|
|
|
|
Network interface
|
Integrated Intel 82579 LAN
|
|
|
|
Ports
|
4 USB 3.0; 5 USB 2.0; 2 IEEE 1394a; 2 PS/2; 1 RJ-45; 2 microphone; 1 audio line out; 1 audio line in; 1 headphone
|
|
Ports note
|
6 internal USB 2.0 available by 3 separate 2x5 headers; 1 serial available via optional Serial Port Adapter
|
|
|
|
Power
|
600W 90% efficient, wide ranging, active PFC
|
|
|
|
Processor
|
Intel Xeon E5-1620 (3.6 GHz, 10 MB cache, 4 cores)
|
|
Number of processors
|
1
|
|
Chipset
|
Intel C602
|
|
Processor family
|
Intel Xeon E5 processor
|
|
|
|
Operating system
|
Windows 7 Professional 64 (available through downgrade rights from Windows 8 Pro 64)
|
|
Operating system note
|
This system is preinstalled with Windows 7 Professional software and also comes with a license and media for Windows 8 Pro software. You may only use one version of the Windows software at a time. Switching between versions will require you to uninstall one version and install the other version. You must back up all data (files, photos, etc.) before uninstalling and installing operating systems to avoid loss of your data.
|
|
|
|
Storage controller
|
Integrated SATA 6.0 Gb/s
|
|
External drive bays
|
Three 5.25"
|
|
Hard drive description
|
1 TB 7200 rpm SATA
|
|
Internal drive bays
|
Three 3.5"
|
|
Optical drive
|
SATA SuperMulti DVD+/-RW
|
|
|
|
Security management
|
Serial, Parallel, USB, Audio, Network Enable/Disable; Removable Media Write/Boot Control; Power-On Password; Setup Password
|
|
Form factor
|
Convertible Minitower
|
|
|
|
Graphics
|
NVIDIA Quadro K600 (1 GB)
|
|
Graphic card number installed
|
1
|
|
Dimensions
|
|
Minimum dimensions (W x D x H)
|
17.78 x 44.52 x 44.76 cm
|
|
Dimension note (metric)
|
Standard minitower orientation
|
|
Weights
|
|
Weight
|
Starting at 12.5 kg
|
|
Weight note (metric)
|
Exact weight depends upon configuration.
|
