All stock codes associated to this product
ZWAP3205V2, ZWAP-3205V2
WAP3205 v2
Wireless N300 Access Point
- 802.11n compliant with data transfer rates of up to 300 Mbps*
- Two 5 dBi antennas enhance wireless signals for stable data transmission
- Four operating modes to satisfy different needs for wireless coverage extension
- AP/Universal Repeater/Client mode switch simplifies operating mode setup
- One-touch WPS button for wireless security setup
- Two Ethernet ports for connecting wired devices to wireless networks
- Effortless wireless access control with wireless on/off button
- Environment-friendly LED light on/off button
Benefits
Easily Enhance Wireless Coverage for Your Needs
Complying with the 802.11n standard, the ZyXEL WAP3205 v2 Wireless N300 Access Point can enhance wireless speeds up to 300 Mbps* and extend the coverage. With the AP/Universal Repeater/Client mode switch, you can setup the operating modes of WAP3205 v2 according to your needs easily and instantly.
Sharing Internet Access Wirelessly
The 802.11n standard-compliant WAP3205 v2 brings you wireless speeds of up to 300 Mbps* for multimedia streaming. The all-in-one design allows WAP3205 v2 to perform as an AP, a WLAN client, a universal repeater or a Wireless Distribution System (WDS) according to your needs for wireless coverage extension and access sharing.

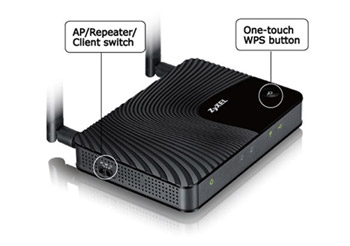

Simple Operation Modes Setup
You can easily set up the operating modes of WAP3205 v2 to meet your needs through the AP/Universal Repeater/Client mode switch without complicated configuration.
One-Touch WPS Button
The one-touch Wi-Fi Protected Setup (WPS) push button of WAP3205 v2 only takes a few seconds to setup a secured wireless network.
Green
Power on/off switch
Just push the wireless on/off button of WAP3205 v2, you can easily save energy when the device is not in use.
Wireless scheduling
Save unnecessary power consumption and reduce wireless radiation when wireless connection is not in use.
Wireless output management
WAP3205 v2 makes it easy for users to adjust the output power to reduce interference that affects your neighbors.
Specifications:
System Specifications
Wirless Standard
Wireless Transfer Rate
- Receive: 300 Mbps*
- Transmit: 300 Mbps*
Wireless Security
- 64/128 bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
WLAN Features
- 4-in-1 operation modes, including access point, WLAN client, universal repeater, and WDS
- Wi-Fi Protected Setup (WPS)
- Wi-Fi Multimedia (WMM)
- Wireless scheduling
- Wireless output power management
- Auto channel selection
- MAC address filtering
System Management
- HTTP
- Diagnostic logs
- Online firmware upgrade
Hardware Specifications
- LAN: Two 10/100 Mbps Ethernet RJ-45 ports with auto MDI/MDIX support
- LED indicator:
- Power
- LAN (1 - 2)
- Wireless
- WPS
- Antenna: Two 5 dBi detachable antennas
- Switch: AP/Universal Repeater/Client mode switch for setting up operation mode

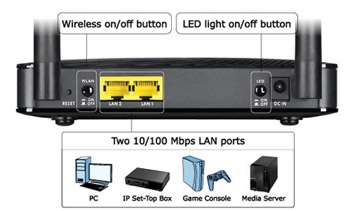

- Button/Switch:
- Wireless on/off button
- LED light on/off button
- WPS button
- Reset button
- Power rating: 12 V DC, 1 A
- Power consumption: 8 watt max.
- Front Panel
Physical Specifications
- Item dimensions (W x D x H): 159 x 111 x 23 mm (6.26 x 4.37 x 0.91)
- Item weight: 255 g (0.56 lb.)
- Packing dimensions (W x D x H): 247 x 61 x 155 mm (9.72 x 2.4 x 6.1)
- Packing weight: 650 g (1.44 lb.)
Environmental Specifications
- Operating Environment
- Temperature: 0Cto 40C (32Fto 104F)
- Humidity: 10%to 90% (Non-condensing)
- Storage Environment
Certification
- Safety: CE LVD
- EMC: CE, FCC
Package Contents
- Wireless Access Point
- Two detachable antennas
- Power adapter
- Ethernet cable
- Quick start guide
- Support CD
- Warranty card
Networking
