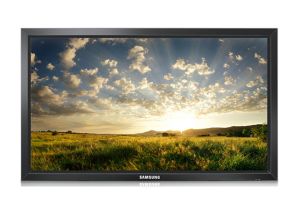

Samsung SyncMaster 650MP LFD - this is a powerful display tool that's designed to garner attention and produce brilliant images in a larger-than-life format. With a Slide-in PC Box and its expansion capabilities, this is the LFD you've been waiting for.
Samsung SyncMaster 650MP LFD - this is a powerful display tool that's designed to garner attention and produce brilliant images in a larger-than-life format. With a Slide-in PC Box and its expansion capabilities, this is the LFD you've been waiting for.
With the Slide-in PC Box, you can take advantage of a wide variety of functional support. As an added convenience, the Slide-in network can be installed to the back side of the LFD monitor.

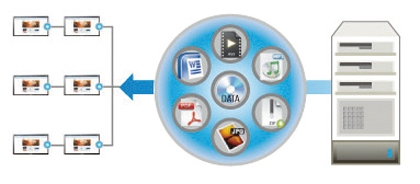

Enhanced networking capabilities
The Slide-in PC Box on the LFD monitor provides you with another layer of convenience. The module allows for easy networking for greater efficiency and overall performance. Plus, some models come with our easy-to-use content management software, MagicInfo, designed to help you get up and running quickly.
Stunning, high-quality images
Designed with performance in mind, it allows the LFD to produce images that are far greater in detail than compared to conventional digital TVs and other MX series. And with a response time of 5.5ms, fast-moving images appear natural and crystal clear.
Higher impact wall displays
A video wall processor built into every Samsung LFD allows you to create impressive video walls in configurations from 1 x 5 to 5 x 5.
Matrix Video Wall
Matrix Display for Video Wall
Built-In Image Enlarging Processor suports various video wall formats. If user wants to install Video Wall as these formats, user doesn't need any other Video Controller Device. Also if viewer uses video & PC Interface, additional Input Signal Distributor is not necessary.

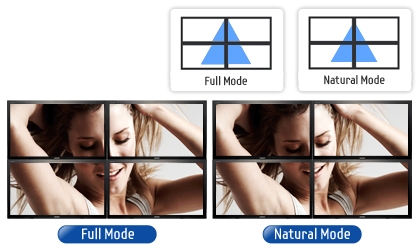

2 Way Multi Display format
In the case of Multi Display video wall, a major isue is how to display naturaly without picture distortion. So Samsung's New Plasma Monitor suports two types of video wall formats. The first is Full mode which displays the picture regardles of cabinet bezel. The second, Natural Mode, considers bezel's depth when displaying picture.

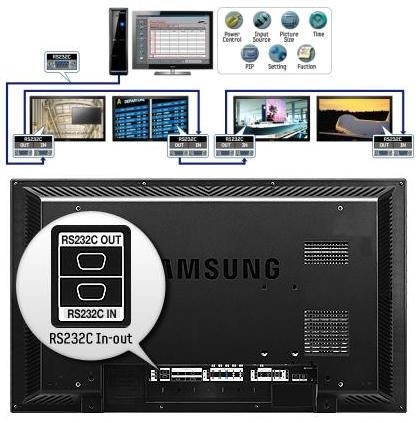

RS232C In-Out
RS232C, a standard of serial communication, is used for the communication between PC and displays. Therefore, A Multiple Display Control (MDC), helping various displays to be easily and simultaneously operated on PC, is possible with RS232C function.
A smart sensor that automatically saves energy.
Stop worrying about the lighting conditions affecting your display. This Samsung LFD adjusts its brightness levels as ambient light changes so your images are always crystal-clear. And while it compensates for low-light and high-light environments, youll save energy and stay eco-friendly.
Stay in the loop with DVI-out.
Enjoy superior picture quality with a DVI-out interface that lets you share content between multiple LFDs thanks to an easier-to-connect video matrix. LFDs used to have to be connected to the PC individually, but digital loop out allows you to connect them without connecting to a PC. Better yet, the digital loop out produces a single image without any loss of quality, and there’s no need for a separate video signal distributor. It’s easy to install and the most cost-effective way to connect multiple displays.
VESA Wall Mount Standard
VESA Flat Display Mounting Interface Standard Support
Customer can find 3rd party installation company in anywhere easily
Specifications:
Display
| H-Scanning Frequency |
30kHz ~ 81kHz |
|
| Maximum Pixel Frequency |
148.5MHz |
|
| V-Scanning Frequency |
56Hz ~ 85Hz |
|
Panel
| Diagonal Size |
65" |
|
| Type |
AMV3 |
|
| Resolution |
1920*1080 (16:9) |
|
| Pixel Pitch(mm) |
0.744(H) x 0.744(V) |
|
| Active Display Area |
1428.48(H) x 803.52(V) |
|
| Brightness |
500cd/m2 |
|
| Contrast Ratio (Dynamic) |
10000:1 |
|
| Viewing Angle(Horizontal/Vertical) |
178/178 |
|
| Response Time (G-to-G) |
8ms |
|
| Display Color |
8 bit - 1073.7M |
|
| Color Gamut |
72% |
|
| Contrast Ratio |
5000:1 |
|
Connectivity
| Input |
RGB |
Analog D-SUB, DVI-D |
| |
Video |
CVBS, Component, BNC, HDMI |
| |
Audio |
RCA(L/R) , Stereo mini Jack |
| Output |
RGB |
DVI-D(Loop-out) |
| |
Video |
BNC |
| |
Audio |
Stereo mini Jack |
| External Control |
|
RS232C(in/out) |
Specification
| Dimension (W x H x D) |
Set Dimension (WxHxD) |
1554 X 924 X 123.9 |
| |
Package Dimension (W x H x D) |
1690 X 1060 X 450 |
| Weight |
Set Weight |
58 |
| |
Shipment Weight |
67.4 |
| VESA Mount |
|
800 x 400mm |
| Stand Type |
|
Foot Stand(optional) |
| Media Player Option Type |
|
SBB-NT |
Operation Time
| Operating Temperature |
0~ 40 |
|
| Humidity |
10~80% |
|
General Feature
| Key |
Economy and Reliability |
|
| Special |
Lamp Error Detection, Anti Retention, Brightness Sensor, Temperature Sensor, Built-In Fan Control, RS232C MDC, Built in Speaker (15W + 15W), Plug and Play (DDC2B, DDC/CI), PIP/PBP, Video Wall(5x5), Button Lock, Digital Daisy Chain, Slide In Moduler Design |
|
Power
| Power Supply |
|
AC 100 - 240 V~ (+/- 10 %), 50/60 Hz |
| Power Consumption |
Off Mode |
less than 1W |
| |
On Mode |
470 (max) / 430 (typ) |
| |
Sleep Mode |
less than 2W |
| Type |
|
Internal |
Accessory
| Included |
|
Quick Setup Guide, Warranty Card,Application CD,D-Sub cable, Power Cord,Remote Controller, Batteries |
| Optional |
Mount |
WMN7070D |
| |
Stand |
STN-L65D |
Certification
| EMC |
FCC (USA) FCC Part 15, Subpart B class BCE (Europe) EN55022, EN55024VCCI (Japan) V-3 (CISPR22)KCC (Korea) :KN22, KN24BSMI (Taiwan) : CNS13438 (CISPR22)C-Tick (Australia) : AS/NZS3548 (CISPR22) CCC(China) :GB 9254-2008, GB 17625.1-2003 |
|
| Safety |
UL (USA) : UL 60950-1CSA (Canada) : CSA C22.2 No. 60950-1 TUV (Germany) : EN60950-1NEMKO (Norway) : EN60950-1 KC (Korea) : K60950-1 CCC (China) : GB 4943-2001PSB (Singapore) : IEC60950-1GOST (Russia) : IEC60950-1, EN55022SIQ (Slovenia) : IEC60950-1, EN55022PCBC (Poland) : IEC60590-1, EN55022NOM (Mexico) : NOM-019-SCFI-1993IRAM (Argentina) :IEC60950-1SASO (Saudi Arabia) : IEC60950-1 |
