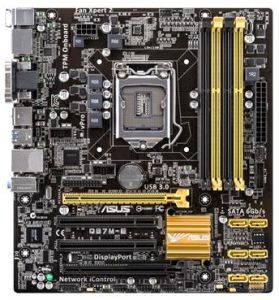

All stock codes associated to this product
Q87ME, Q87M-E, 2703559
Overview
Q87 motherboards for enterprises feature high-endurance 5X Protection
and Intel vPro business-grade technology
- ASUS 5X Protection: All-round protection provides the best quality,
reliability, and durability
- USB 3.0 BOOST (UASP Support): 170% faster transfer speeds than traditional
USB 3.0
- Network iControl: Real-time network bandwidth management
- Fan Xpert 2: Comprehensive controls for the perfect cool and quiet balance
- CrashFree BIOS 3: Restore corrupted BIOS data from USB storage
- AI Suite 3: One-stop access to innovative ASUS features
5X Protection
ASUS 5X Protection
All-round protection provides the best quality, reliability, and
durability
ASUS motherboards guard your PC with 5X Protection. We use quality components
like DIGI+ VRM digital power design for precise CPU power on demand, ESD units
tested to strict standards that eliminate electrostatic interference, and
resettable fuses around DRAM slots to prevent overcurrent and short-circuit
damage. We also use corrosion-resistant back I/O shields, all examples of ASUS
providing the best possible reliability and durability.
New UEFI BIOS
New UEFI BIOS – friendlier and more Intuitive
Exclusive EZ Mode adds useful info to become even easier
Media-renowned UEFI BIOS from ASUS provides the smoothest mouse-controlled
graphical BIOS, and now features more intuitive functions to quickly take you to
favorite BIOS pages and frequently-accessed settings through custom shortcuts.
You can even write quick notes in-BIOS for future reference, view an activity
log of setting changes and modifications, and rename SATA ports. EZ Mode has a
whole new look, upgraded with extra-friendly capabilities like detailed fan
controls, XMP profile settings, SATA information, and fast clock adjustment.
Together, these perfect your BIOS experience.
Fan Xpert 2
Comprehensive controls for the perfect cool and quiet balance
Seeing an opportunity for more fine-tuned control, hardware-level ASUS Fan
Xpert 2 featuring Fan Auto Tuning, providing an tailored fan speed setting for
each fan with the exclusive, automatic fan speed detection to achieve the best
balance of cooling performance and low noise. It even provides a "RPM Fixed
Mode" for users who wish to reduce noise levels to near 0dB with a specific fan
speed control.
Performance Optimization
USB 3.0 Boost (UASP Support)
170% faster transfer speeds than traditional USB 3.0
ASUS USB 3.0 Boost technology supports UASP (USB Attached SCSI Protocol) in
Windows 8. With USB 3.0 Boost technology, a USB device's transmission speed is
significantly increased up to 170%, adding to already fast USB 3.0 performance.
ASUS software automatically accelerates data rates for compatible USB 3.0
peripherals without any user interaction.
- World’s 1st USB 3.0 UASP support – instantly 170% faster.
- Complete USB 3.0 solution – performance boost under Turbo Mode or UASP
Mode for most USB devices.
- Simple plug and boost – auto detection design ensures best
performance.
EZ DIY
Q-DIMM
Easy memory removal
Even if you work with a smaller case, plugging in memory is easy with
one-sided clips that are right at the edge of the board and always accessible.
Just push down on the clip and push or pull RAM modules in or out – couldn’t be
simpler!
Windows 8 Exclusive Features
ASUS Boot Setting
Multiple startup options
Thanks to ASUS Windows 8 hardware optimization, ASUS Boot Setting provides
better flexibility in customizing your PC’s startup process. You can shorten
system boot-up time to 2-seconds* for a smoother user experience under Windows
8, and even previous versions of Windows. Also, you can enter the BIOS directly
with one click through a user-friendly interface, and quickly select your
preferred system boot up method: either get to the OS in seconds or opt for
regular boot up. Whatever your choice, settings are saved and persistent, with
no need to choose every time you power on.
*On select models
Additional Features
AI Suite 3
One-stop access to innovative ASUS features
ASUS AI Suite 3 offers a brand new user experience through a clearer and more
attractive interface with support for larger monitors. It consolidates all
exclusive ASUS features into one simple-to-use package, allowing you to
supervise overclocking, energy consumption, fan speeds, voltages and more. This
all-in-one app offers diverse and easy to use functionality, with no need to
switch back and forth between different utilities.
Multi-GPU/Monitors
4K Ultra HD ready
Discover future visual experiences
Following up on popular 1080p full HD, 4K Ultra HD is the next big thing, and
you’re ready for the upgrade thanks to integrated graphics that natively support
up to 4096 x 2160 via HDMI or DisplayPort. That’s four times the pixel count of
1080p (1920 x 1080), offering incredible visual clarity, detail, and
realism.
CPU and Chipset Features
Intel LGA1150 4th Generation Core i7/Core i5/Core i3/Pentium/Celeron
Processors Ready
This motherboard supports Intel 4th generation Core
i7/i5/i3/Pentium/Celeron processors in the LGA1150 package, with iGPU, memory
and PCI Express controllers integrated to support onboard graphics output with
dedicated chipsets, 2-channel (4 DIMM) DDR3 memory and 16 PCI Express 3.0/2.0
lanes. This provides great graphics performance. Intel 4th generation Core
i7/i5/i3/Pentium/Celeron processors are among the most powerful and energy
efficient CPUs in the world.
Intel Q87 Express Chipset
The Intel Q87 Express chipset is a single-chipset design that supports
socket LGA1150 4th generation Intel Core i7/i5/i3/Pentium/Celeron
processors. It provides improved performance by utilizing serial point-to-point
links, allowing increased bandwidth and stability. It natively supports up to
six USB 3.0 ports for up to ten times faster transfer rates than USB 2.0.
Moreover, the Intel Q87 Express chipset also supports iGPU functionality,
letting users enjoy the latest Intel integrated graphics performance.
GreenASUS
Motherboards are EU Energy-related Products (ErP) ready, which requires
products meet high efficiency standards with regards to energy consumption. This
is in line with the ASUS vision of creating environmentally-friendly and
energy-efficient products through design and innovation that reduce the carbon
footprint of products and thus mitigate ecological impact.
Specifications
|
CPU |
Intel Socket 1150 for 4th Generation Core i7/Core i5/Core
i3/Pentium/Celeron Processors |
|
Supports Intel 22 nm CPU |
|
Supports Intel Turbo Boost Technology 2.0 |
|
* The Intel Turbo Boost Technology 2.0 support depends on the CPU
types. |
|
Chipset |
Intel Q87 |
|
Memory |
4 x DIMM, Max. 32GB, DDR3 1600/1333/1066 MHz
Memory |
|
Dual Channel Memory Architecture |
|
Graphic |
Integrated Graphics Processor |
|
MultiVGA output support HDMI/DVID/RGB/DisplayPort
ports |
|
Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @
60 Hz |
|
Supports DVID with max. resolution 1920 x 1200 @ 60
Hz |
|
Supports RGB with max. resolution 1920 x 1200 @ 60
Hz |
|
Supports DisplayPort with max. resolution 4096 x 2160 @ 24 Hz / 3840 x
2160 @ 60 Hz |
|
Supports up to 3 displays simultaneously |
|
MultiGPU Support |
Supports AMD QuadGPU CrossFireX Technology |
|
Expansion Slots |
1 x PCIe 3.0/2.0 x16 (yellow) |
|
1 x PCIe 2.0 x16 (x4 mode, dark brown) |
|
2 x PCI |
|
|
|
Storage |
|
|
Intel Q87 chipset |
6 x SATA 6Gb/s port(s), yellow |
|
Support Raid 0, 1, 5, 10 |
|
|
|
LAN |
Intel I217LM, 1 x Gigabit LAN Controller(s) |
|
Audio |
Realtek ALC887VD 8Channel High Definition Audio
CODEC |
|
Supports Jackdetection, Multistreaming, Front Panel Jackretasking,
Antipop Function |
|
|
|
USB Ports |
|
|
Intel Q87 chipset |
4 x USB 3.0 port(s) (2 at back panel, , 2 at
midboard) |
|
Intel Q87 chipset |
10 x USB 2.0 port(s) (4 at back panel, , 6 at
midboard) |
|
|
|
Special Features |
|
|
ASUS 5X Protection |
ASUS DIGI+ VRM 4 Phase digital power design |
|
ASUS Enhanced DRAM Overcurrent Protection Short circuit damage
prevention |
|
ASUS ESD Guards Enhanced ESD protection |
|
ASUS HighQuality 5KHour Solid Capacitors 2.5x long lifespan with
excellent durability |
|
ASUS Stainless Steel Back I/O 3x more durable corrosionresistant
coating |
|
ASUS EPU |
EPU |
|
ASUS Exclusive Features |
GPU Boost |
|
AI Suite 3 |
|
Ai Charger |
|
AntiSurge |
|
ASUS UEFI BIOS EZ Mode featuring friendly graphics user
interface |
|
Network iControl |
|
USB 3.0 Boost |
|
ASUS Quiet Thermal Solution |
ASUS Fan Xpert 2 |
|
ASUS EZ DIY |
ASUS CrashFree BIOS 3 |
|
ASUS EZ Flash 2 |
|
ASUS MyLogo 2 |
|
ASUS QDesign |
ASUS QSlot |
|
ASUS QDIMM |
|
100% All Highquality Conductive Polymer
Capacitors |
|
TPM IC Onboard |
|
|
|
|
Operating System Support |
Windows 8 |
|
Windows 7 |
|
Back I/O Ports |
1 x PS/2 keyboard (purple) |
|
1 x PS/2 mouse (green) |
|
1 x DVID |
|
1 x DSub |
|
1 x DisplayPort |
|
1 x HDMI |
|
1 x LAN (RJ45) port(s) |
|
2 x USB 3.0 |
|
4 x USB 2.0 |
|
3 x Audio jack(s) |
|
Internal I/O Ports |
1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0
port(s) |
|
3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0
port(s) |
|
1 x LPT1 header |
|
2 x COM port(s) connector(s) |
|
6 x SATA 6Gb/s connector(s) |
|
1 x CPU Fan connector(s) |
|
2 x Chassis Fan connector(s) |
|
1 x 24pin EATX Power connector(s) |
|
1 x 8pin ATX 12V Power connector(s) |
|
1 x Front panel audio connector(s) (AAFP) |
|
1 x Internal speaker connector(s) |
|
1 x System panel(s) |
|
1 x Chassis Intrusion connector(s) |
|
1 x Clear CMOS jumper(s) |
|
Accessories |
User's manual |
|
I/O Shield |
|
2 x SATA 6Gb/s cable(s) |
|
BIOS |
128 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI
2.0a, Multilanguage BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS
3 |
|
Manageability |
WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE |
|
Support Disc |
Drivers |
|
ASUS Utilities |
|
ASUS Update |
|
Antivirus software (OEM version) |
|
Form Factor |
mATX Form Factor |
|
9.6 inch x 8.8 inch ( 24.4 cm x 22.4 cm
) |
