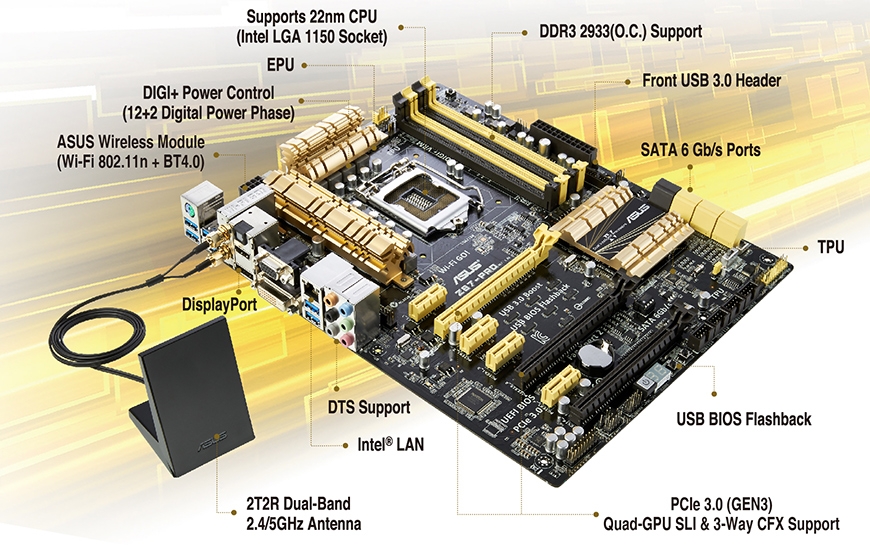

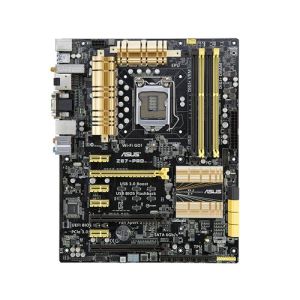

ASUS Z87-PRO Motherboard
LGA1150, Z87, 4xDDR3-1600, 2xPCI-Ex16 v3.0, 1xPCI-Ex16 v2.0, 4xPCI-Ex1 v2.0, RAID, 1xGigLAN, 8Chl-HD, USB3.0, VGA, DVI, HDMI, DisplayPort, WiFi, BT, ATX

No Longer Available

Part Number:

222857

(?) Brand:

ASUS Web Site

Manuf No:

Z87-PRO
Z87PRO

Shipping Weight:

2.5 KG (Includes product packaging)
Estimate Shipping

Add to wishlist

Write a Review

Details Files Images & Video

All stock codes associated to this product

Z87PRO, Z87-PRO

Z87-PRO

Perfect one-stop system optimization and enhanced Wi-Fi control on Intel Z87

Dual Intelligent Processors 4 with 4-Way Optimization
4-Way Optimization - One Click and Done! Top-up Performance, Efficiency, Digital Power, and System Cooling
Wi-Fi GO! - Connect Your Life The Perfect Fusion of Desktop, Smartphones and Pads
Fan Xpert 2 - The Most Customizable Fan Controls

Overview

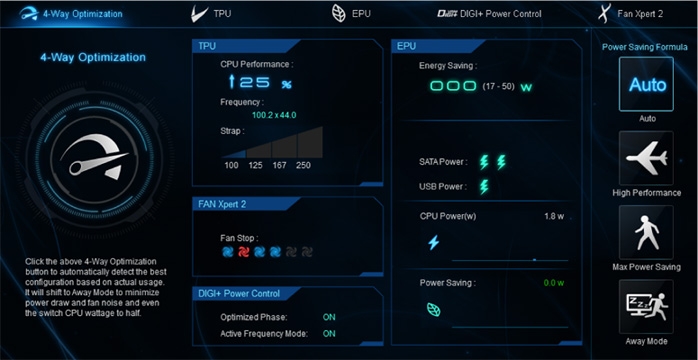

One-click, 4-Way Optimization

Dual Intelligent Processors 4

Dual Intelligent Processors 4 with 4-Way Optimization

One click for better performance, efficiency, digital power control, reduced noise, and improved cooling.

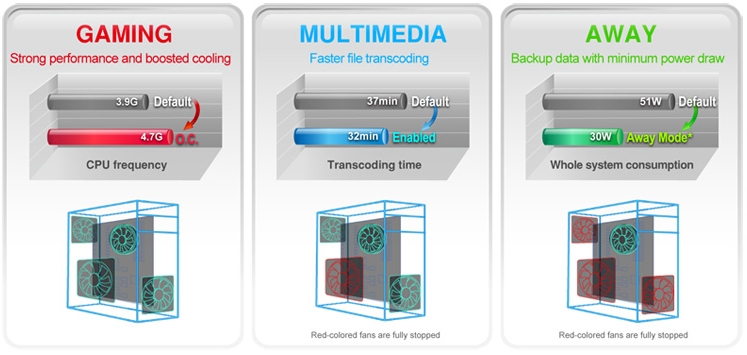

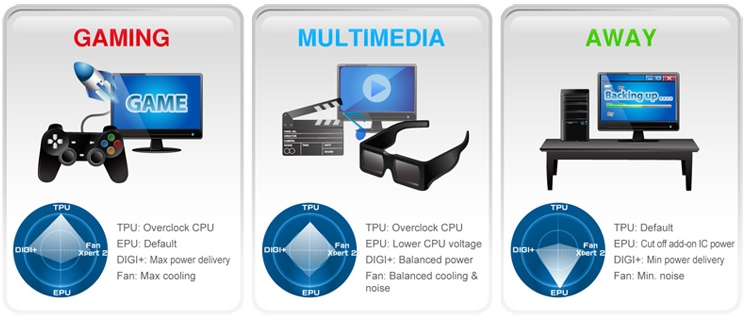

Dynamic Multi-Scenario Design

Figuring out the best settings for your PC a challenge? 4-Way Optimization automatically detects the best configuration for your system based on actual usage.

Proven Performance

The design makes sure your PC is perfect for gaming, entertainment, productivity, and everything else.

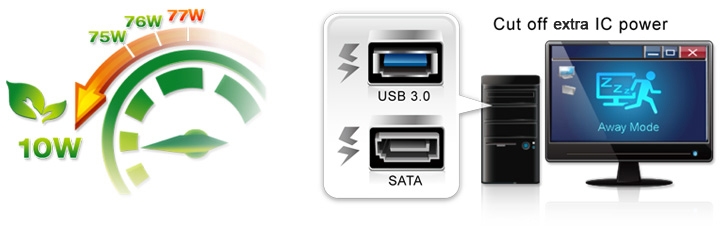

Manual setting in Away Mode

4 Key Tuning Pillars

Performance: unlock CPU/iGPU performance with the TPU
Efficiency: achieve whole system energy efficiency by reducing power consumption and power off extra I/O controllers
Leading digital power: real-time management of CPU-input voltage regulator via DIGI+ Power Control
Customized fan control: detailed supervision of every installed fan improves cooling and reduces noise with Fan Xpert 2

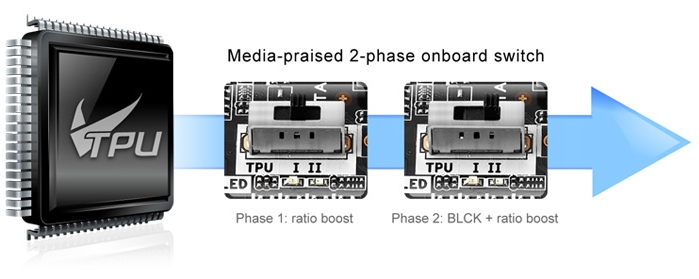

TPU

CPU performance boost

Unleash your computers performance with a simple 2-phase onboard switch or the ASUS AI Suite 3 utility. It works with the TPU chip to offer precise voltage control and advanced monitoring , enabling great freedom to adjust CPU frequencies and ratios for optimized performance in all situations.

EPU

All-round energy efficiency

Tap into the world's first real-time PC power saving chip through a simple onboard switch or the AI Suite 3 utility. Get total system-wide energy optimization by automatically detecting current PC loadings and intelligently moderating power consumption. It can directly reduce CPU wattage to an indicated level on demand, or manually switch to Max Power Saving Mode for further power savings, creating a more energy-efficient PC. Want to download, stream, or backup content while away from your PC? Away Mode makes it easy. It puts your system into an extreme energy-saving stance, even shutting down unused extra I/O controllers.

DIGI+ Power Control

Precise Digital Power Control for both CPU and DRAM

Power control is one of the most essential motherboard designs. Intelligent CPU power draw detection with ASUS DIGI+ Power Control is an innovative, industry-leading technology that fully complies with Intel VRD12.5 specifications, increasing overclocking potential, enhancing system stability, and improving power efficiency with superior flexibility and accurate control.

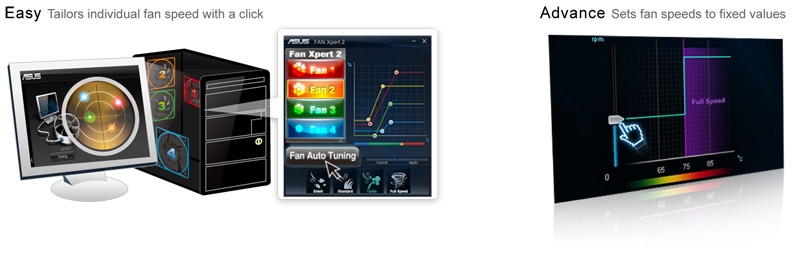

Fan Xpert 2

Comprehensive controls for the perfect cool and quiet balance

Hardware-level ASUS Fan Xpert 2 literally blows away the competition. It can scan each fans characteristics through automatic fan speed detection, delivering custom settings for each 4-pin/3-pin CPU and chassis fan with a single click and achieving the best balance of cooling performance and low noise.

RPM Fixed Mode

For users who wish to reduce noise levels to near 0dB with highly specific fan speed control, which also reacts to system load for greater precision.

Wi-Fi GO!

Connect your life The perfect fusion of desktop, smartphones and pads

ASUS Wi-Fi GO! makes enjoying home entertainment and remotely controlling your PC easier than ever! It is the first integration of Wi-Fi hardware and a host of useful connectivity functions in a single intuitive app anyone can make the most of. Its a one-stop utility that links your desktop with smart devices, which can be used to remotely control your PC for a truly connected lifestyle.

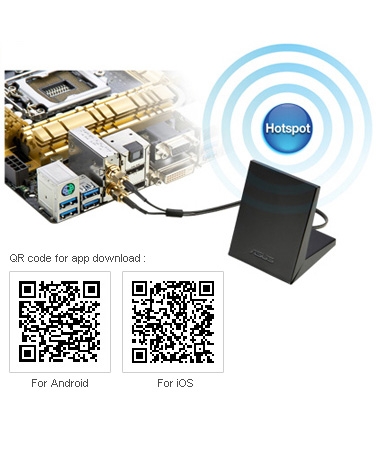

Wi-Fi hotspot setup

Quickly gets an access point via 802.11n Wi-Fi. Bundled with a 2.4GHz/5GHz dual-band 2T2R antenna so you can build your network without an extra router!

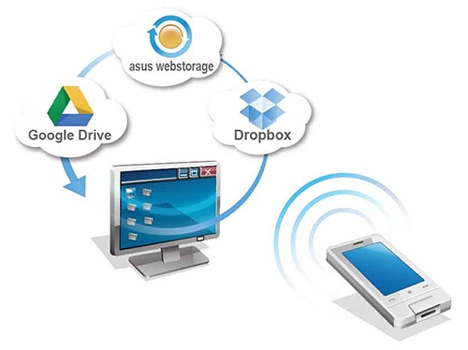

Cloud GO!

One stop to sync and backup for your cloud storage

Your cloud file manager for ASUS WebStorage, Dropbox and Google Drive. Synchronize files across cloud storage accounts with a click, with no more bothersome uploading and downloading to and from different accounts.

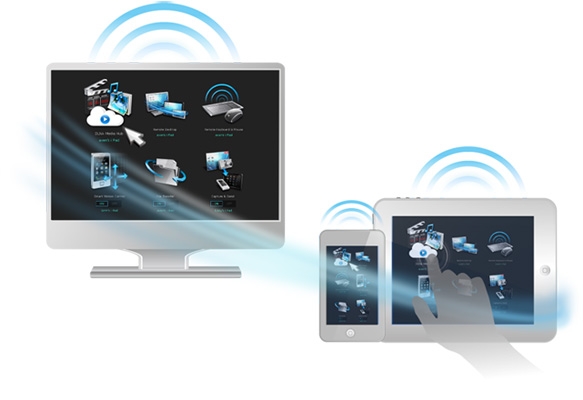

Remote Control

Remote Desktop

Accesses your PC from smart devices with real-time control for complete comfort. This function creates a virtual desktop on smart devices, offering portable access to content and control over your PC from anywhere at home.

Remote Keyboard & Mouse

Sit back and control your computer by using your tablets virtual QWERTY keyboard, which is great for communicating or productivity from the comfort of your living room.

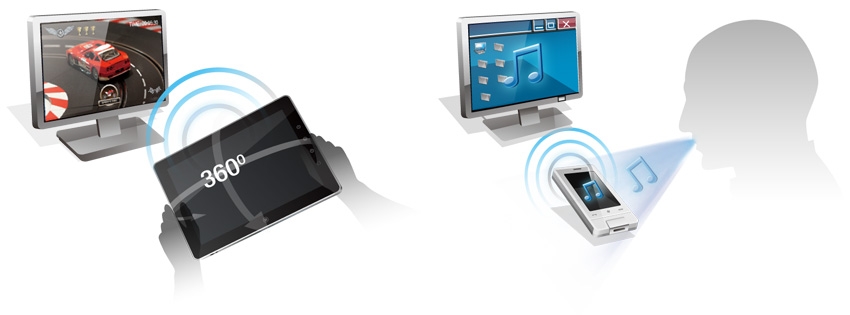

Smart Sensor Control

Enjoy Windows 8-exclusive games and applications using new gyroscope-based* pan, tilt, and roll controls via your smart devices right on your desktop monitor. You can even turn smart devices into a virtual microphone* in apps, games, chat, and social networking on your PC.
*Available for Windows 8

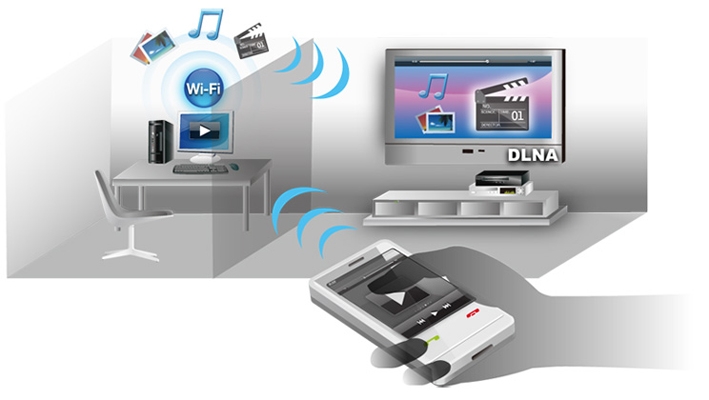

DLNA Media Hub

Streaming multimedia content is easier than before

Enjoy HD content, music, and photos from PC on your DLNA devices via Wi-Fi, perfect for creating your own home theater!

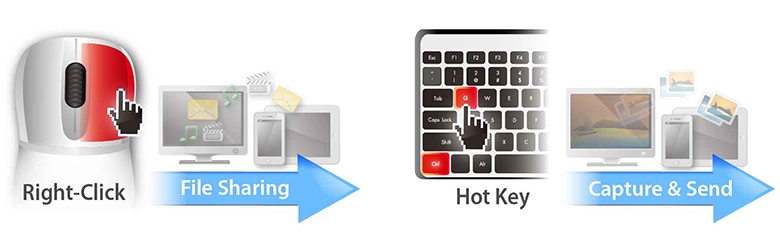

Easy file and screenshot transfers:

File Transfer: send and share files between your PC and smart devices with only a right click on the mouse.
Capture & Send: capture and send screen shots from your PC to smart devices directly by pressing the hotkey*.

*Hotkey set by users.

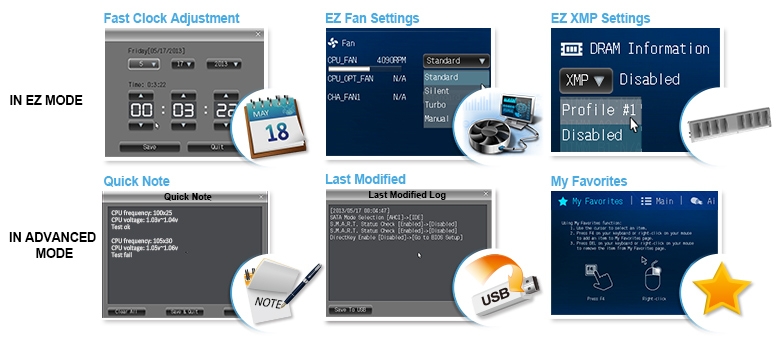

New UEFI BIOS friendlier and more Intuitive

Exclusive EZ Mode adds useful info to become even easier

Media-renowned UEFI BIOS from ASUS provides the smoothest mouse-controlled graphical BIOS, and now features more intuitive functions to quickly take you to favorite BIOS pages and frequently-accessed settings through custom shortcuts. You can even write quick notes in-BIOS for future reference, view an activity log of setting changes and modifications, and rename SATA ports. EZ Mode has a whole new look, upgraded with extra-friendly capabilities like detailed fan controls, XMP profile settings, SATA information, and fast clock adjustment. Together, these perfect your BIOS experience.

1.Fast Clock Adjustment

Easily change the time and date in EZ Mode using the mouse.

2.EZ XMP Settings

Quickly apply XMP settings in UEFI BIOS EZ Mode, achieving better DRAM performance.

3. EZ Fan Settings

As demanded by the community, detailed fan controls come to EZ Mode so you can switch fan profiles for quick cooling and noise-level supervision.

4. SATA Information

Displays each SATA port details for you to easily recognize devices.

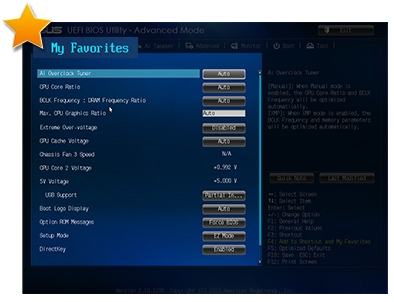

My Favorites

Get all your favorite functions on one page

F4 or right click to add settings to My Favorites under Advance Mode, which cuts time spent on searching and further speeds up system tuning.

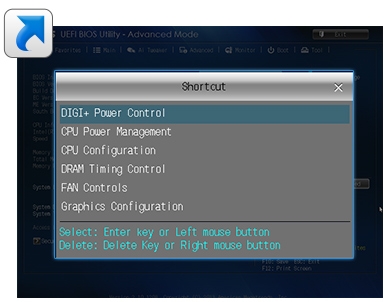

Shortcut

One press to apply and access frequent settings

Now you can customize your own shortcut log by pressing F4 or right clicking to create shortcuts to frequently-used settings. Instantly access them by simply hitting the F3 hotkey.

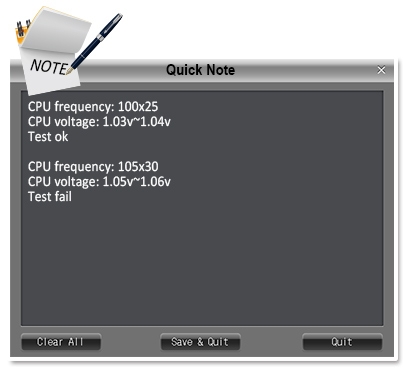

Quick Note

You no longer need to have a pen and paper notepad around. Quick Note works inside the BIOS so you can just type remarks and ideas to help you remember important settings info and save time on trial and error.

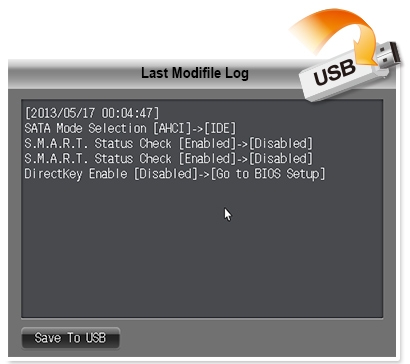

Last Modified

Always forget those important BIOS changes you did? This friendly function creates a tuning log to track your BIOS settings history , which can be saved onto a USB drive.

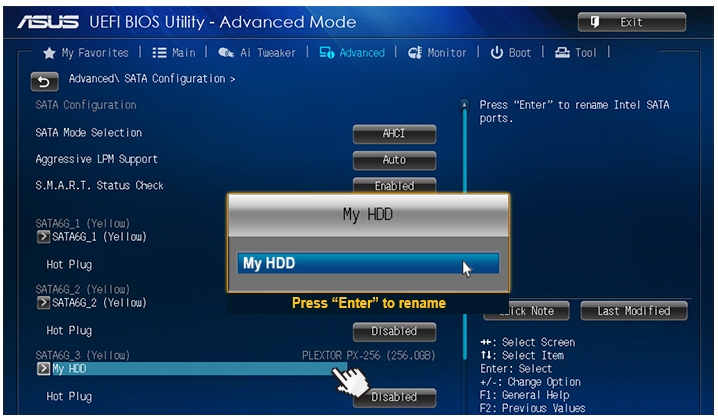

SATA Port Renaming

You can rename your SATA ports for easy identification, including by usage scenario. Get greater convenience and spend less time on finding the right devices when you want to change settings.

The Latest Transfer Speed

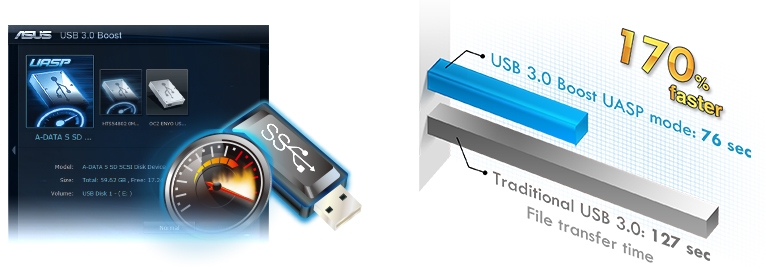

USB 3.0 Boost (UASP Support)

170% faster transfer speeds than traditional USB 3.0

ASUS USB 3.0 Boost technology supports UASP (USB Attached SCSI Protocol) USB 3.0 in Windows 8. With USB 3.0 Boost technology, a USB device's transmission speed is significantly increased up to 170%, adding to already fast USB 3.0 performance. ASUS software automatically accelerates data rates for compatible USB 3.0 peripherals without any user interaction.

Worlds 1st USB 3.0 UASP support instantly 170% faster.
Complete USB 3.0 solution performance boost under Turbo Mode or UASP Mode for most USB devices.

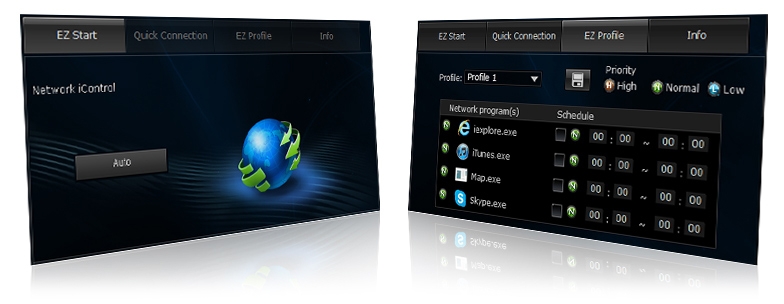

Network iControl

Real-time network bandwidth management

One click to prioritize network traffic for applications you're currently using or set up favorite profiles to run at specific times. Avoid network congestion, speed up downloading, and make sure online gaming runs optimized, all through an intuitive user interface.

PCI Express 3.0

PCI Express 3.0 uses improved encoding that provides twice the performance of PCI Express 2.0. Total bandwidth for an x16 link reaches 32GB/s, delivering unprecedented data speeds combined with the convenience and seamless transition offered by complete backward compatibility.

Complete USB 3.0 integration

Double USB access, double the convenience

ASUS facilitates USB 3.0 accessibility for both the front and rear panel. Experience the latest plug n play connectivity at speeds up to 10 times faster than USB 2.0. Our motherboards afford greater convenience with high speed connectivity.

Extra SATA 6Gb/s support

Extra ports, extra speed and accessibility

ASUS provides extra SATA 6Gb/s ports with enhanced scalability, faster data retrieval, and double the bandwidth of SATA 3Gb/s.

EZ DIY

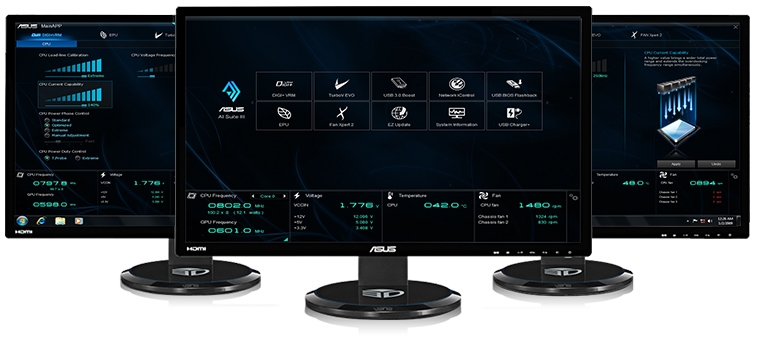

AI Suite 3

One-stop access to innovative ASUS features

ASUS AI Suite 3 offers a brand new user experience through a clearer and more attractive interface with support for larger monitors. It consolidates all exclusive ASUS features into one simple-to-use package, allowing you to supervise overclocking, energy consumption, fan speeds, voltages and more. This all-in-one app offers diverse and easy to use functionality, with no need to switch back and forth between different utilities.

USB BIOS Flashback

Simple plug and press hardware-based BIOS flashing

Hardware-level USB BIOS Flashback allows users to update to new UEFI BIOS versions even without a CPU or DRAM installed. Just plug in a USB flash drive containing the BIOS file and press the BIOS Flashback button for 3 seconds with the power supply connected. Hassle-free updating for ultimate convenience!

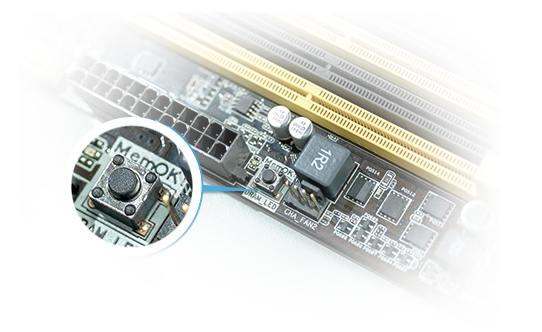

MemOK!

Enhanced memory compatibility: save time on trial and error

Memory issues can be difficult to diagnose and even harder to fix or work around. If RAM problems are preventing your system from booting, MemOK! helps by automatically loading failsafe settings to enable basic functionality with a simple push of a button on the motherboard. This troubleshooting feature saves you time and annoyance, and adds to the confidence of DIY builders.

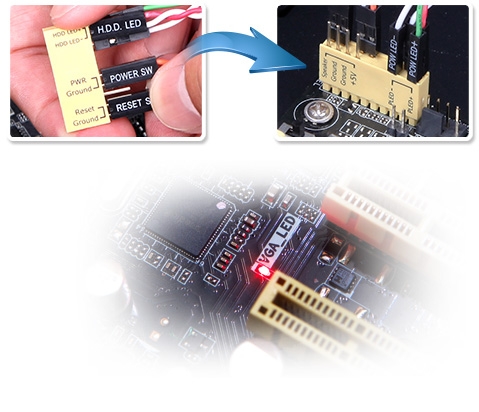

Q-Connector

Easy, quick, and accurate connections

Motherboard front panel wires and connectors used to be notorious as the hardest and most tedious part of the build process. You had to figure out which one went where, or consult confusing manuals. This took forever and caused needless frustration. The Q-Connector steps in to take care of all that. Its a one-piece plug that sits on top of the front panel headers, with clearly marked inputs for each. You no longer have to mess with easily-bent pins. The wires go into the Q-Connector, and youre good to go.

Q-LED

Easy PC diagnostics

When there's a problem with your PC, quickly being able to diagnose and remedy the issue can eliminate a great deal of frustration. ASUS Q-LED immediately indicates when there's a problem with the CPU, memory, graphics card or boot device by lighting up in the vicinity of that component.

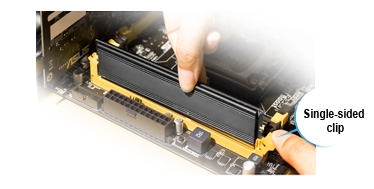

Q-DIMM

Easy memory removal

Even if you work with a smaller case, plugging in memory is easy with one-sided clips that are right at the edge of the board and always accessible. Just push down on the clip and push or pull RAM modules in or out couldnt be simpler!

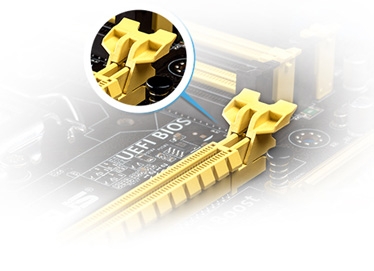

Q-Slot

Effortless PCI Express component removal

Press the Q-Slot clip lightly, and graphics cards just pop out. The large winged clip is easy to reach so you dont have to struggle with installing or removing even the biggest graphics cards.

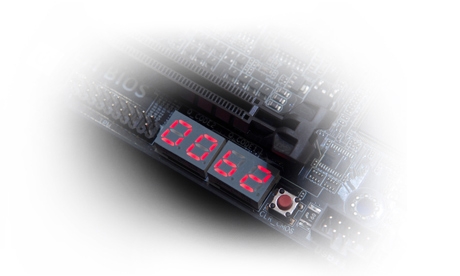

Q-Code

Detailed PC status display and diagnostics

Designed to instantly recognize POST status and for precise troubleshooting. Users can check the table in the user guide for more information.

Windows 8 Exclusive Features

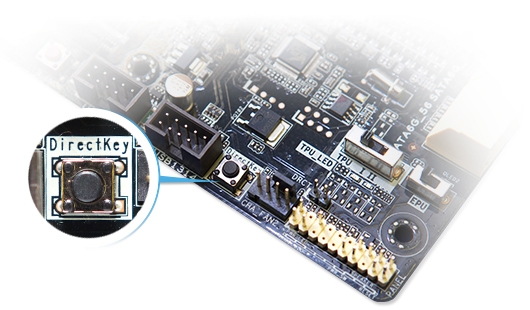

DirectKey

Dedicated direct BIOS access button

Designed for those requiring frequent BIOS access, users can easily enter the BIOS when the PC is on standby power with a simple press of a button. It saves you time during boot-up as you dont have to repeatedly press the DEL key. Convenience and ease at their best!

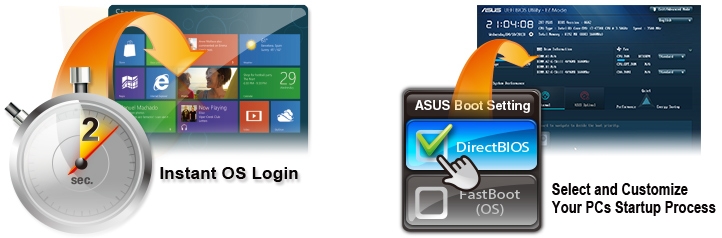

ASUS Boot Setting

Multiple startup options

Thanks to ASUS Windows 8 hardware optimization, ASUS Boot Setting provides better flexibility in customizing your PCs startup process. You can shorten system boot-up time to 2-seconds* for a smoother user experience under Windows 8, and even previous versions of Windows. Also, you can enter the BIOS directly with one click through a user-friendly interface, and quickly select your preferred system boot up method: either get to the OS in seconds or opt for regular boot up. Whatever your choice, settings are saved and persistent, with no need to choose every time you power on.

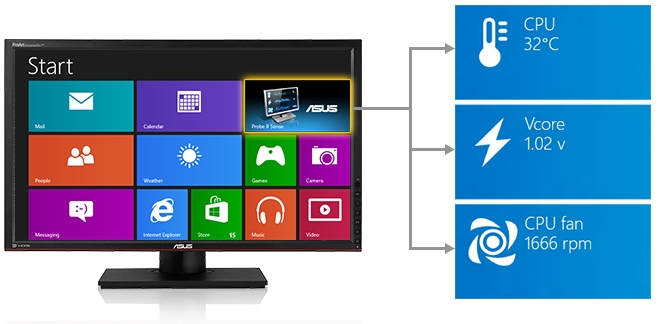

Probe II Sense

Handy system monitoring

Popular ASUS real-time system monitoring software now available for Windows 8. It helps you supervise your entire PC through a live tile on the Windows 8 start screen, and make quick adjustments. Probe II Sense is a free app available from the Windows Store.

5X PROTECTION

ASUS 5X PROTECTION

All-round protection provides the best quality, reliability, and durability

ASUS motherboards guard your PC with 5X PROTECTION. We use quality components like DIGI+ VRM digital power design for precise CPU power on demand, ESD units tested to strict standards that eliminate electrostatic interference, and resettable fuses around DRAM slots to prevent overcurrent and short-circuit damage. We also use corrosion-resistant back I/O shields, all examples of ASUS providing the best possible reliability and durability.

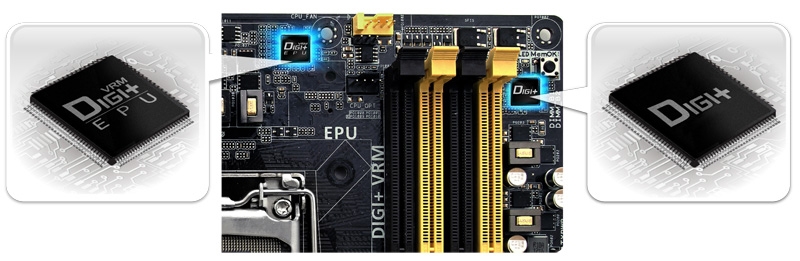

DIGI+ Power Control (DIGI+ VRM & DRAM)

Precise Digital Power Control for both CPU and DRAM

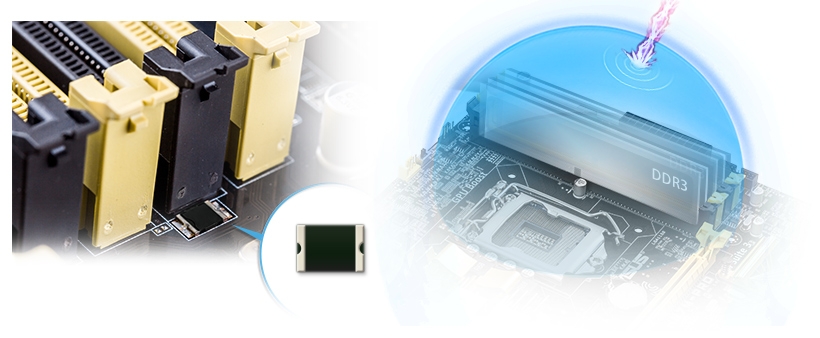

Enhanced DRAM Overcurrent Protection

Short-circuit damage prevention

Onboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard system and device lifespan.

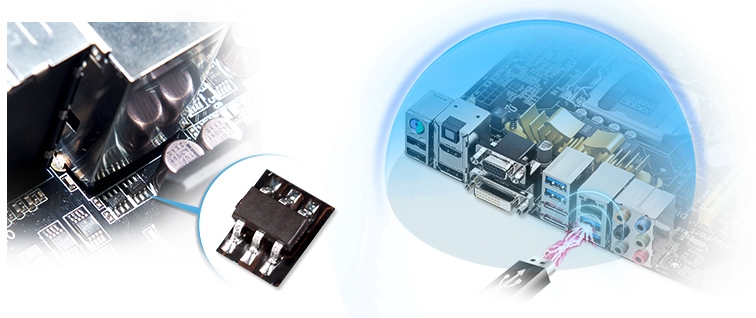

ESD Guards

Strong ESD protection for extended component lifespan

Electrostatic discharges (ESD) can happen suddenly, and their damaging effects are often underestimated. ASUS ESD Guards offer an active protective circuit design that ensures electrostatic discharges are properly grounded, providing greater component longevity.

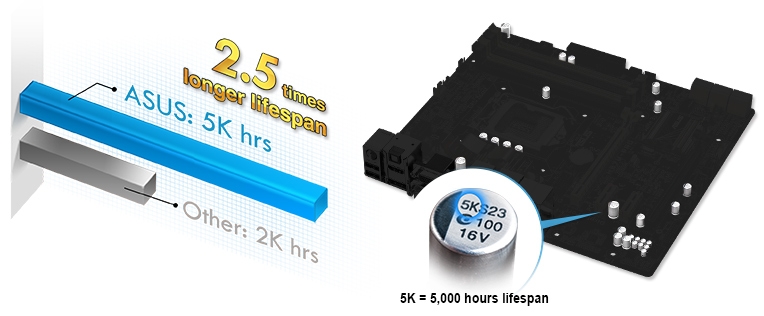

All 5K-hour solid state capacitors

2.5X longer lifespan with excellent durability

ASUS high-quality solid state capacitors assure a 5,000-hour lifespan, equivalent to 2.5 times longer than traditional capacitors. All capacitors pass testing under temperatures as high as 105 degrees centigrade and meet Japanese industrial standards to provide excellent durability and enhanced thermal capacity.

Stainless Steel Back I/O

3X more durable corrosion-resistant coating

ASUS motherboard back I/O panels are made from strong and corrosion-resistant stainless steel, which is bonded with a thin layer of chromium oxide to enhance anti-corrosive properties. Passing 72-hour spray salt endurance tests, ASUS stainless steel back I/O panels have a usage life three times longer compared to ordinary panels.

Multi GPU / Multi-Monitor/4K

4K Ultra HD ready

Discover future visual experiences

Following up on popular 1080p full HD, 4K Ultra HD is the next big thing, and youre ready for the upgrade thanks to integrated graphics that natively support up to 4096 x 2160 via HDMI or DisplayPort. Thats four times the pixel count of 1080p (1920 x 1080), offering incredible visual clarity, detail, and realism.

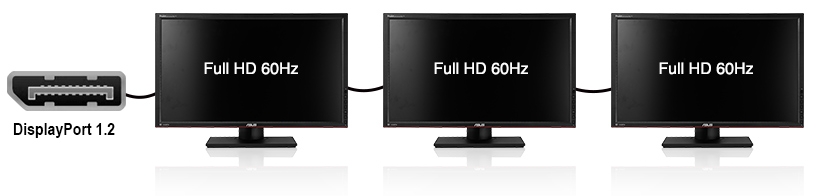

Connect up to 3 Full HD monitors via one port

DisplayPort 1.2 with Multi-Stream Transport (MST) allows you to connect up to three 1080p displays to a single output with daisy chaining, splitting the signal into three Full HD (1080p@60Hz) links.

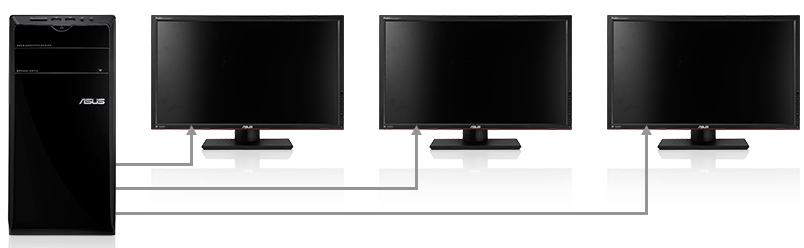

Work with up to 3 displays

Connect up to three independent monitors at once using video outputs such as DisplayPort, Mini DisplayPort, HDMI, DVI, or VGA. Choose your outputs and set displays to either mirror mode or collage mode.

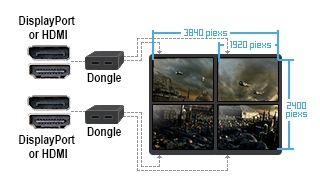

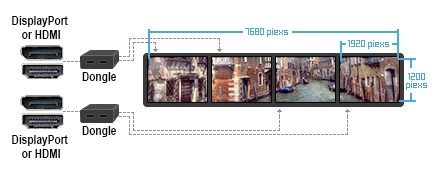

Intel Collage Display

Intel Collage Display allows images to be shown across multiple monitors, with each depicting a portion of a larger image. You can connect multiple displays to a single system and get video on several monitors with higher quality and resolution up to 4K. Connect up to six displays to drive a total resolution as high as 7680 x 1200 for Horizontal Collage Display or 3840 x 2400 for Vertical Collage Display with special dongles, like DisplayPort splitter adapters. Horizontal mode offers an extended desktop experience thats ideal for commercial applications such as finance, while vertical mode offers a simple way to enjoy 4K ultra HD content using standard HD displays.

Horizontal Collage Display: up to 7680 x 1200

Vertical Collage Display: up to 3840 x 2400

Quad-GPU SLI and 3-Way CrossFireX Support

Brings you multi-GPU support using NVIDIA SLI or AMD CrossFireX. The Z87 chipset optimizes PCI Express allocation in multiple graphics card configurations, so you can expect brand-new gaming like youve never experienced before!

CPU and Chipset Features

Intel LGA1150 4th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors Ready

This motherboard supports Intel 4th generation Core i7/i5/i3/Pentium/Celeron processors in the LGA1150 package, with iGPU, memory and PCI Express controllers integrated to support onboard graphics output with dedicated chipsets, 2-channel (4 DIMM) DDR3 memory and 16 PCI Express 3.0/2.0 lanes. This provides great graphics performance. Intel 4th generation Core i7/i5/i3/Pentium/Celeron processors are among the most powerful and energy efficient CPUs in the world.

Intel Z87 Express Chipset

The Intel Z87 Express Chipset is a single-chipset design that supports socket LGA1150 4th generation Intel Core i7/i5/i3/Pentium/Celeron processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, Z87 provides a maximum 6 USB 3.0 ports and 6 SATA 6Gb/s ports for faster data retrieval. Moreover, the Intel Z87 Express Chipset also supports iGPU functions, letting users enjoy the latest Intel integrated graphics performance.

Intel® Smart Response Technology
SSD speed with HDD capacity

Uses an installed fast SSD (min18.6GB available capacity required) as a cache for frequently-accessed data. Key benefits include reduced load and wait times, and lower power consumption through the elimination of unnecessary hard drive spin. This technology combines SSD performance with hard drive capacity, operating up to 6X faster than a hard drive-only system.

Intel® Smart Connect Technology
Auto application refresh and shorter wait times

Your computer can receive web updates with fresh content for selected applications, even when the system is in sleep mode. This means less time waiting for applications to update and sync with the cloud, leading to a more efficient computing experience.

Intel® Rapid Start Technology
Instantly awaken your PC from sleep mode

Allows your computer to quickly resume from a low-power hibernate state in seconds. Saving your system memory to the designated SSD, it provides your computer a faster wake-up response time, while still keeping energy use low.

RoHS
GreenASUS

Motherboards are EU Energy-related Products (ErP) ready, which requires products meet high efficiency standards with regards to energy consumption. This is in line with the ASUS vision of creating environmentally-friendly and energy-efficient products through design and innovation that reduce the carbon footprint of products and thus mitigate ecological impact.

Specifications:

CPU
Intel Socket 1150 for 4^th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors
Supports Intel 22 nm CPU
Supports Intel Turbo Boost Technology 2.0
* The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
Chipset
Intel Z87
Memory
4 x DIMM, Max. 32GB, DDR3 3000(O.C.)/2933(O.C.)/2800(O.C.)/2666(O.C.)/2600(O.C.)/2500(O.C.)/2400(O.C.)/2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1800(O.C.)/1600/1333 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Graphic
Integrated Graphics Processor
Multi-VGA output support : HDMI/DVI-D/RGB/DisplayPort 1.2 ports *¹
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
- Supports DisplayPort with max. resolution 4096 x 2160 @ 24 Hz / 3840 x 2160 @ 60 Hz
Maximum shared memory of 1024 MB
Supports Intel HD Graphics, InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider
Supports up to 3 displays simultaneously
Multi-GPU Support
Supports NVIDIA Quad-GPU SLI Technology *²
Supports AMD Quad-GPU CrossFireX Technology
Supports AMD 3-Way CrossFireX Technology
Expansion Slots
2 x PCIe 3.0/2.0 x16 (x16 or dual x8)
1 x PCIe 2.0 x16 (x4 mode) *³
4 x PCIe 2.0 x1 *⁴
Storage
Intel Z87 chipset :
6 x SATA 6Gb/s port(s), yellow
Support Raid 0, 1, 5, 10
Supports Intel Dynamic Storage Accelerator, Intel Smart Response Technology, Intel Rapid Start Technology, Intel Smart Connect Technology*⁵
ASMedia ASM1061 controller : *⁶
2 x SATA 6Gb/s port(s), dark brown
LAN
Intel I217V, 1 x Gigabit LAN Controller(s)
Intel LAN- Dual interconnect between the Integrated LAN controller and Physical Layer (PHY)
Wireless Data Network
Wi-Fi 802.11 a/b/g/n
Supports dual band frequency 2.4/5 GHz
Bluetooth
Bluetooth V4.0
Bluetooth V3.0+HS
Audio
Realtek ALC1150 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 112 dB SNR stereo playback output (Line-out at rear) and 104 dB SNR recording input (Line-in)
Audio Feature :
- Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound
- DTS Ultra PC II
- DTS Connect
- Optical S/PDIF out port(s) at back panel
- BD Audio Layer Content Protection
USB Ports
Intel Z87 chipset :
4 x USB 3.0/2.0 port(s) (2 at back panel, blue, 2 at mid-board)
Intel Z87 chipset :
8 x USB 2.0/1.1 port(s) (8 at mid-board)
ASMedia USB 3.0 controller :
4 x USB 3.0/2.0 port(s) (4 at back panel, blue)
Special Features
ASUS Dual Intelligent Processors 4 with 4-Way Optimization :
- The tuning key perfectly consolidates ASUS-exclusive DIGI+ Power Control, TPU, EPU, and Fan Xpert 2 optimize the digital power setting, system performance, power saving and whole system cooling configuration
ASUS 5X PROTECTION :
- ASUS DIGI+ VRM - 12 Phase digital power design
- ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention
- ASUS ESD Guards - Enhanced ESD protection
- ASUS All 5K-Hour Solid Capacitors - 2.5x long lifespan with excellent durability
- ASUS Stainless Steel Back I/O - 3x more durable corrosion-resistant coating
ASUS EPU :
- EPU
- EPU switch
ASUS Digital Power Design :
- Industry leading Digital 12 Phase Power Design
- Industry leading Digital 2 Phase DRAM Power Design
- ASUS DIGI+ VRM Utility
- CPU Power Utility
- DRAM Power Utility
ASUS Wi-Fi GO!
- Wi-Fi GO! Function: Cloud GO!, DLNA Media Hub, Smart Sensor Control, Remote Desktop, Remote Keyboard & Mouse, File Transfer, Capture & Send
- Wi-Fi Engine for network sharing and connection: Client Mode, AP Mode
- Wi-Fi GO! & NFC Remote for portable Smartphone/Tablet, supporting iOS & Android systems
ASUS Exclusive Features :
- USB BIOS Flashback
- MemOK!
- AI Suite 3
- Ai Charger+
- USB Charger+
- Anti-Surge
- Onboard Button : Power
- Front Panel USB 3.0 Support
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- Network iControl
- USB 3.0 Boost
- Disk Unlocker
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert 2
ASUS EZ DIY :
- DirectKey
- Precision Tweaker 2
- ASUS O.C. Profile
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- Multi-language BIOS
ASUS Q-Design :
- ASUS Q-Code
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector
100% All High-quality Conductive Polymer Capacitors
Overclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall)
Back I/O Ports
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x D-Sub
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
6 x USB 3.0 (blue)
1 x Optical S/PDIF out
6 x Audio jack(s)
1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n and Bluetooth v4.0/3.0+HS)
Internal I/O Ports
1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
4 x USB 2.0 connector(s) support(s) additional 8 USB 2.0 port(s)
1 x TPM header
8 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x CPU OPT Fan connector(s) (1 x 4 -pin)
4 x Chassis Fan connector(s) (4 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s) (Q-Connector)
1 x DirectKey Button(s)
1 x DRCT header(s)
1 x MemOK! button(s)
1 x TPU switch(es)
1 x EPU switch(es)
1 x Power-on button(s)
1 x Clear CMOS jumper(s)
1 x USB BIOS Flashback button(s)
Accessories
User's manual
I/O Shield
4 x SATA 6Gb/s cable(s)
1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n compliant)
1 x SLI bridge(s)
1 x Q-connector(s) (2 in 1)
BIOS
64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM BIOS 2.7, ACPI 5.0, Multi-language BIOS,
ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions, and ASUS DRAM SPD (Serial Presence Detect) memory information
Manageability
WfM 2.0, DMI 2.7, WOL by PME, PXE
Support Disc
Drivers
ASUS Utilities
EZ Update
Anti-virus software (OEM version)
Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Note
*1: DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays
*2: With 2 PCIex16 graphics card.
*3: The PCIe x16_3 slot shares bandwidth with PCIe x1_2/3/4 slots. The PCIe x16_3 slot is set to x1 mode by default.
*4: The PCIe x1_2 shares bandwidth with SATA6G_E12. The SATA6G_E12 is enabled by default for system resource optimization.
*5: Supports on Intel Core processor family
*6: These SATA ports are for data hard drivers only. ATAPI devices are not supported.

No additional files, specification sheets, guides or documentation found for product.

Warranty: 3-year Manufact.

Full manufacturers warranty details are available at the manufacturers (ASUS) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.

Visitor Reviews

[ There are no visitor reviews for this product yet]

Review Product

Click on a thumbnail to view it below

No related products found.

L7: 2 | TM: 0 | LM: 3 | TY: 12 | T: 1108

No Hidden Surcharges

Payment FAQ

Reference Tools

Kingston
Memory Selector

Corsair
PSU selector

Sister Sites

We accept the following with No surcharge on VISA, Mastercard and Paypal!

All prices shown on techbuy.com.au are in $AUD and inclusive of GST. Prices and availability are subject to change without prior notice. Images displayed are accurate to the best of our knowledge and we will not be held responsible for purchases based soley on these images. All brands and names are trademarks of their respective companies. Shipping Australia wide to all metro and regional areas (Sydney, Melbourne, Brisbane, Adelaide, Perth) and Internationally. For more information, please see our usage policies.
