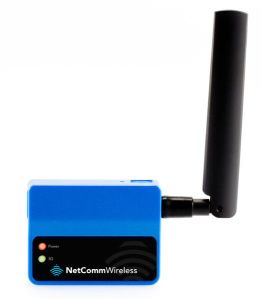

M2M Serial Modem - NTC-3000 Series
Overview
M2M Serial Modem
The small but rugged M2M Serial Modem provides cost-effective 3G connectivity for M2M applications in areas such as smart metering, security, farming, manufacturing and transport. Ideal for SCADA (Supervisory Control and Data Acquisition) use, the modem lets you remotely monitor, collect and control equipment data from any location on virtually any device. Designed for reliable performance and universal installation, the M2M Serial Modem comes equipped with a lockable SIM tray and operates in extreme -40 to 85C temperatures with a wide input voltage range to support diverse environments and applications.
Remote reach
The embedded data module supports remote deployments with a high-speed 3G Internet connection. Vending machines, traffic signs, farm machinery, water monitoring devices and other industrial and commercial equipment can be remotely managed from any computer over 3G networks. The multi-mode data module also lets you select the most appropriate network and service type for your needs.
Serial power
Connected devices can send data over the 3G network to any IP network enabled device using RS-232 Serial data connectivity and power input via the RJ-45 port. A serial connection on one end and a 3G connection on the other offers reliable data connectivity for a range of M2M applications.
Small and mountable.
The compact M2M Intelligent Serial Modem includes a DIN rail, wall mount options and a removable mounting bracket for easy installation in demanding settings.
Technical Specifications
UMTS/3G bands - Dual Mode
- WCDMA 900 / 2100 MHz (NetComm NTC-3000-02)
- WCDMA 850 / 2100 MHz (NetComm NTC-3000-03)
- EDGE/GPRS/GSM 850/900/1800/1900 MHz
Connectivity
- 1 x RJ-45 port (incl. DB-9 adapter) for serial RS-232 data connections
- 1 x Mini USB 2.0 port for serial connections (Windows driver available)
SIM Card Reader
- Locking Tray, supports standard USIM
Antenna Connector
LED Indicators
Operating Temperature
Power Input
- 5 ~ 36 VDC, via RJ-45 port or via USB port
Dimension / Weight
- 74 x 57 x 24 mm
- 84g (w/o mounting bracket)
Regulatory Compliance
- A-Tick, CE (NetComm NTC-3000-02)
- A-Tick, CE (NetComm NTC-3000-03)
Standard Package Contents
- 1 x NTC-3000 M2M Serial Modem
- 1 x printed QSG
Optional Accessories
- Mounting bracket
- RJ-45 to DB9 Cable for serial RS232 connectivity and DC power input
- Penta band 1dBi antenna with SMA connection and isolation rubber boot.
AC/DC Power Adapter, 2.1mm centre positive jack, 100~240VAC: 12VDC/1.5A
