All stock codes associated to this product
ST120FP0021, HBSGSTFP120G, HBSG-STFP120G

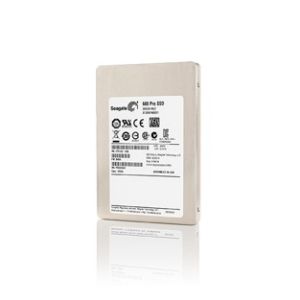

Best-in-class performance efficiency (IOPS/W).
The Seagate 600 Pro SSD delivers ultra fast performance maximing IOPS/watt value while reducing energy costs. Designed for low power consumption, these drives also automatically adjust power usage based on workload I/O levels, which means lighter workloads use even less power.
End-to-end data protection.
A step above client SSDs, the Seagate 600 Pro SSD leverages trusted enterprise expertise, a proven feature set and manufacturing excellence to deliver high levels of data integrity, manageability, testing and support.
One SSD drive many use cases reduced TCO.
Seagate 600 Pro SSDs are entry-level enterprise drives that help reduce total cost of ownership (TCO). Specifically designed to optimize performance for read-intensive and mixed workloads, these drives are ideal for:
- Data center applications (fast data indexing, edge caching)
- Data streaming
- Content delivery networks
- Gaming and software delivery
- Virtualization and other cloud applications
Features
Seagate 600 Pro SSDs improve performance.
Providing the highest performance with low latency and low power across read-optimized and mixed workloads, the Seagate 600 Pro SSDs saturate the SATA 6Gb/s interface and reduce performance gaps between I/O and CPU operations. Seagate Advanced Media Management technology increases read-performance by detecting data patterns and optimizing placement for rapid access.
- Average of 10K IOPS/W (measured at 50% writes)
- High random R/W IOPS: up to 85,000/30,000 (6Gb/s SATA interface speed)
Seagate 600 Pro SSDs for high data integrity.
The Seagate 600 Pro SSDs deliver end-to-end data protection for high data integrity with multi-layered error recovery technology and advanced media management technology.
- Helps to prevent data loss from undetected, unintentional bit-flip corruption (silent errors) and unexpected power loss
- Provides media health monitoring and reporting for advance notification to host systems of drive problems or as the drive approaches end of life.
- Includes more than 16,000 hours of interoperability testing across seven operating systems and 19 HBA or RAID cards.
Seagate 600 Pro SSDs for low TCO.
The Seagate 600 Pro SSD maximizes IOPS/watt value while reducing energy costs as a result of low power consumption, automatically adjusting power usage based on workload I/O levels which means lighter workloads use less power.
- Uses less than 3 watts typical operating power
- Linear scaling IOPS/W (power consumption automatically scales with I/O workload)
- Idle power savings modes
- Entry-level enterprise drive
Specifications:
| Capacity |
480GB |
400GB |
240GB |
200GB |
120GB |
100GB |
| |
|
| Form Factor |
2.5" |
2.5" |
2.5" |
2.5" |
2.5" |
2.5" |
| Interface Options |
SATA 6Gb/s |
SATA 6Gb/s |
SATA 6Gb/s |
SATA 6Gb/s |
SATA 6Gb/s |
SATA 6Gb/s |
| Performance |
|
|
|
|
|
|
| Transfer Rate, Max Ext (MB/s) |
600 |
600 |
600 |
600 |
600 |
600 |
| Sustained Data Rate OD |
530Gb/s |
520MB/s |
520MB/s |
520MB/s |
520MB/s |
520MB/s |
| Average Latency (ms) |
11 |
|
|
|
|
|
| Reliability/Data Integrity |
|
|
|
|
|
|
| Nonrecoverable Read Errors per Bits Read |
1in 1016 |
1in 1016 |
1in 1016 |
1in 1016 |
1in 1016 |
1in 1016 |
| Annualized Failure Rate (AFR) |
0.58% |
0.58% |
0.58% |
0.58% |
0.58% |
0.58% |
| Endurance (method 2: Total Bytes Written (TBW)) |
350TB |
834TB |
134TB |
417TB |
24TB |
209TB |
| Power Management |
|
|
|
|
|
|
| Idle, Typical Operating (W) |
2.21 |
2.27 |
2.37 |
2.25 |
2.24 |
2.10 |
| Physical |
|
|
|
|
|
|
| Height (in/mm) (maximum) |
0.276/7.00 |
0.276/7.00 |
0.276/7.00 |
0.276/7.00 |
0.276/7.00 |
0.276/7.00 |
| Width (in/mm) (maximum) |
2.760/70.10 |
2.760/70.10 |
2.760/70.10 |
2.760/70.10 |
2.760/70.10 |
2.760/70.10 |
| Length (in/mm) (maximum) |
3.955/100.45 |
3.955/100.45 |
3.955/100.45 |
3.955/100.45 |
3.955/100.45 |
3.955/100.45 |
| Weight (lb/g) |
0.220/100 |
0.220/100 |
0.220/100 |
0.220/100 |
0.220/100 |
0.220/100 |
| ST120FP0021 |
120GB |
SATA 6Gb/s |
1000Gs |
100.45mm |
70.10mm |
7.00mm |
100g |
0.58% |
70C |
1.74W |
