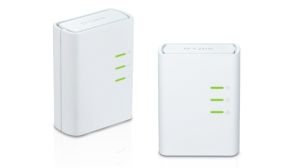

PowerLine AV 500 Network Kit
DHP-309AV
- Performance - Up to 200Mbps for reliable, everyday performance
- More Coverage - Extend your existing wired network through your home's electrical wiring
- AV+ Advantage - Up to 35% faster than standard PowerLine AV 200
- Scalable to your Needs- Easily expand your network with additional PowerLine adapters
- Simple Setup - Quickly setup your PowerLine adapters with the push of a button
Overview
The DHP-309AV at a Glance
Extend your Network
The D-Link PowerLine AV 500 Network Kit (DHP-309AV) extends your home network by transforming your existing electrical system into a powerful network. Easily add computers, laptops and entertainment systems to your wired network without turning your home into a wired mess. And setup couldnt be easier just plug and connect. Theres no need for drilling holes or messy wiring. And if you want to build your network further, just plug and connect additional adapters. The compact and flat design doesnt block other plugs in an outlet or protrude from the wall. Its perfect for conserving space and power outlet capacity.

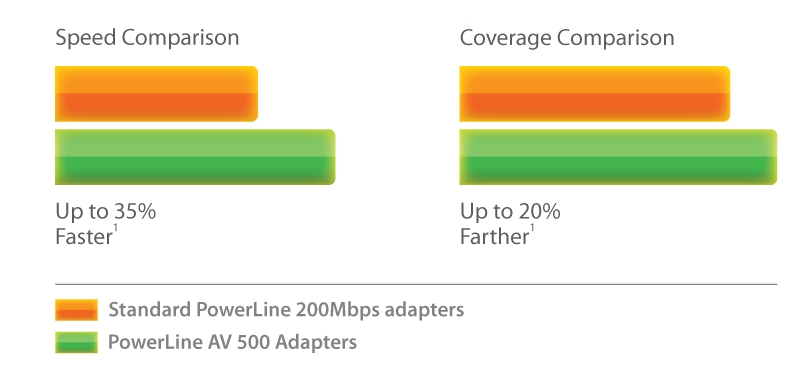

PowerLine AV + Advantage
PowerLine AV + technology maximizes performance to give speeds up to 35% faster than conventional PowerLine AV 200 adapters. Get up to 200Mbps speed delivered to any outlet in your home. This means you can watch videos, surf the Web or catch up on email in spots where you cant get a good wireless signal. Plus, PowerLine AV+ gives you up to 20% better coverage than conventional PowerLine AV 200 adapters. This means fast speeds throughout your home.
Specifications:
Standards
- IEEE 802.3
- IEEE 802.3u
- IEEE 1901
- HomePlug AV
Ethernet Interface
- 10/100Base Ethernet Port with Auto MDI/MDIX
Maximum PHY Rate
Security
- 128-bit AES Data encryption
Input Power
LEDs
Power Saving
- Power saving mode supported
Power Consumption
Operating Temperature
Operating Humidity
- 10% to 90% non-condensing
EMC Certifications
Safety Certifications
Dimensions
- 2.7 x 2.1 x 1.0 (MM)
- (70 x 52 x 26 mm)
Weight
Warranty
