All stock codes associated to this product
90YV04T0M0NA00, 90YV04T0-M0NA00, 2492320, 886227597703
R7240-2GD3-L
Overview
Great value graphics with superior stability and 3D gaming
- Premium alloys in power delivery components defeat heat for cards that run 15% faster and last 2.5 times longer than reference.
- Dust-proof Fan design increases particle resistance and extends card lifespan by up to 25% longer than reference.
- GPU Tweak helps you modify clock speeds, voltages, fan performance and more, all via an intuitive interface.
- Low profile graphics cards for HTPC and multimedia PCs support smooth 1280 x 1024 gaming and Blu-ray 3D. Brackets bundled for fast setup!
Raging Cool For the Win!
Super Alloy Power
Enhanced durability and cooling
Exclusively-formulated alloy components boost performance by reducing power loss, enhancing durability, and achieving cooler operation. Choke concrete cores eliminate buzzing sound under full load while capacitors assure a 50,000-hour lifespan: equivalent to 2.5 times longer than traditional capacitors.
Dust-Proof Fan
25% longer graphics card lifespan
Unique fan design di ssipates heat efficiently while extending a graphic card’s lifespan by 25%* through increased dust and particle resistance.
GPU Tweak
Real-time intuitive graphics tuning
- Shows detailed specs and actual card status with GPU-Z
- Monitoring widget provides real-time detailed multi-parameter info
- Automatically checks and updates drivers and BIOS versions
2GB DDR3 Memory
On-board memory for the best gaming experience & the best resolution
Low Profile Design
Perfect for mini-ITX PCs
ASUS gets graphics card design done right for HTPC and multimedia PC use. Products are powered to easily run current game titles at 1280 x 1024 resolution and play smooth Blu-ray 3D content. Low profile brackets bundled for quick setup!
Graphics GPU Features
Powered by AMD Radeon™ R7 240
AMD PowerTune technology
Intelligent power monitoring in the AMD Radeon™ graphics to enable higher clock better performance in your favorite games.
Microsoft DirectX 11.2 API
Brings new levels of visual realism to gaming on the PC and get top-notch performance.
AMD App Acceleration
Speeds up daily applications such as web browsing and video playback. Also the first to provide support for both OpenCL, C++ AMP, and DirectCompute 11.
AMD ZeroCore Power technology
Allows your AMD Radeon graphic to consume virtually no power when in idle state. It even shuts down additional GPUs in AMD CrossFire. technology mode to consume less when they’re not in use.
MicrosoftR Windows 8.1 compatible
Gives you access to advanced computing experiences with the latest operating system so you get more done with your PC

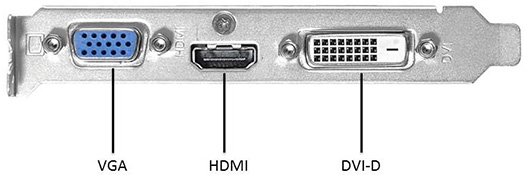

I/O Ports Highlight
1 X Singel-link DVI-D
1 X Native HDMI
1 X Native VGA
Specifications:
Graphics Engine
AMD Radeon R7 240
Bus Standard
PCI Express 3.0
Video Memory
DDR3 2GB
Engine Clock
730 MHz
Memory Clock
900 MHz ( 1800 MHz DDR3 )
Memory Interface
128-bit
Resolution
DVI Max Resolution : 1920x1200
Interface
D-Sub Output : Yes x 1
DVI Output : Yes x 1 (DVI-D)
HDMI Output : Yes x 1
HDCP Support : Yes
Power Consumption
up to 75Wno additional PCIe power required
Software
ASUS GPU Tweak & Driver
ASUS Features
Super Alloy Power
Dimensions
15.9 x 11.1 x2 Centimeter
Note
Specifications are subject to change without notice.
PCB color and bundled software versions are change without notice.
Brand and product names mentioned are trademarks of their respective company.
