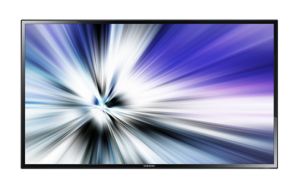

Equipped with a slim design and impressive features such as the brightness sensor, ME75B is ideal for the business environment.
An increasing number of organisations are using large format displays (LFDs) to display their business content and to differentiate their organisation from competitors. Companies need displays that offer excellent image resolution but are lighter weight and take up minimal space. The Samsung MEC Series LED LFD delivers superior LED technology in a slim display without increasing energy costs. Equipped with Samsungs powerful and exclusive SSSP technology and integrated display solution, MagicInfo Premium S player, the Samsung MEC Series can deliver multiple types of content seamlessly. Watch your display management productivity go up as your total cost of ownership goes down with this all-in-one display.
Create, display and manage. All with simple, effortless steps
The embedded solution, Samsung MagicInfo Premium S player, is designed to easily create, deploy, display content and even manage display operations.
Easy content creation:
Easily create multimedia and interactive content with pre-made templates and customise compelling messages using drag & drop and the intuitive user interface.
Easy and efficient content deployment:
Play content on multiple displays from a central PC, directly from internal storage or USB drive through simple plug & play.
Simple display operation:
Monitor and schedule various types of content in multiple displays from one central location efficiently and without difficulty.
These features of the embedded Samsung MagicInfo Premium S player come with no additional costs.
With the MagicInfo Premium S player, monitoring display status and controlling display operation have never been simpler.

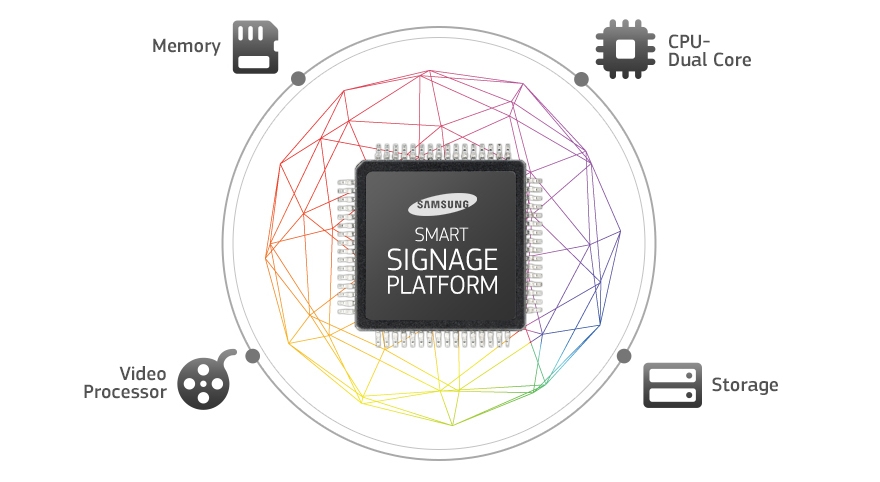

An integrated solution to provide a new digital signage experience

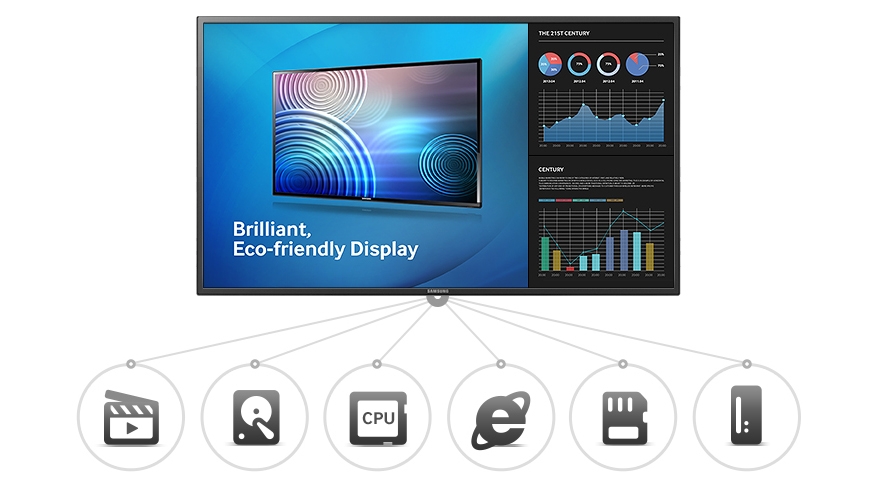

The Samsung Smart Signage Platform (SSSP) is embedded within Samsung displays, providing the power of a dual-core CPU and a combination of media player and integrated display solution, MagicInfo Premium S player. The solution eliminates the need for additional PC modules while reducing installation and maintenance issues. Using the included MagicInfo Premium S player, businesses can create, schedule, and deploy content effortlessly. Multiple types of content can be streamed simultaneously and continuously courtesy of the dual-core CPU and 8GB of storage, and a high performance video processor integrated on a single chip. Save more by paying less for a display integrated with a media player and premium management solution.

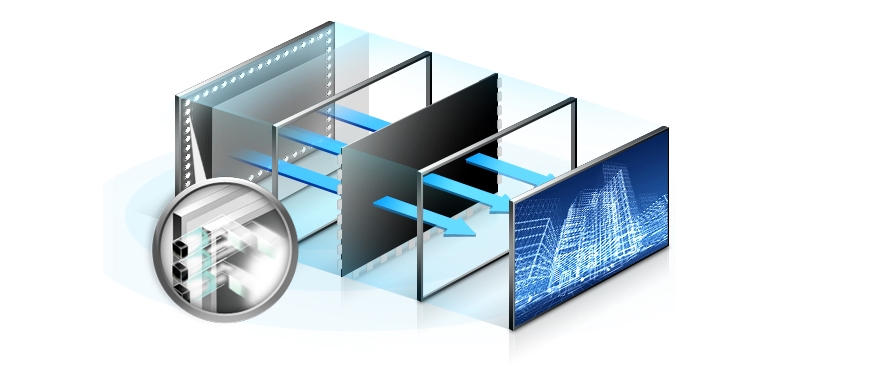

Project large-scale images with less energy consumption
The Samsung MEC Series is economical and gentle on the environment. The MEC Series' edge-type LED features LED lamps located on the sides of the panel. The lamps emit light on the display sides, resulting in a much thinner screen that requires fewer lamps than conventional panels. With fewer LED lamps, power consumption and heat emission are reduced and a slim, lightweight design can be achieved. With these improvements, a more enjoyable environment can be created for viewers in close proximity to the displays.
Enhance readability with extraordinary picture quality
The Samsung MEC Series delivers high-quality images without the distortion, blur or glare inherent in traditional projectors to provide productive, distraction-free presentations. An ultra-clear panel provides sharper, more detailed images and enhanced picture quality. The panel also reduces light scatter and reflection to enhance readability. An enhanced contrast ratio and high brightness support more attractive, vibrant displays with detailed images.

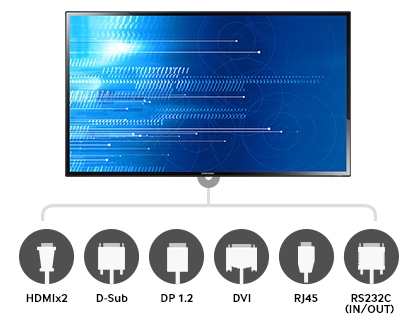

Multiple Connectivity Options for Greater Control
The Samsung MEC Series offers powerful connectivity, even when working with RJ45 and RS-232 connections, which competing displays solely rely upon. With the Samsung line of LED LFDs, both network types can be used simultaneously. Using a DVI loop out, a single presentational image can be shared with nearby screens. This feature eliminates the need to purchase separate video signal distributors for each device, further reducing equipment costs.

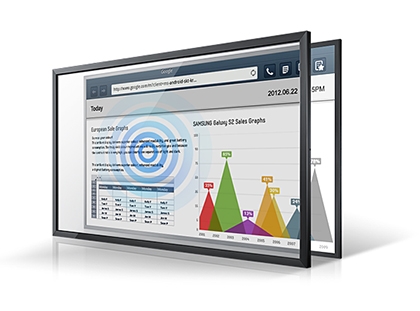

Optimise the Functionality and Longevity with Protection Glass Option
The Protection Glass Option safeguards the display from potential damage caused by contact with hazardous objects. It offers robust protection in commercial environments. With the flat Protection Glass Option laid over the display, the stylish bezel-less design integrates well with the surrounding environment.

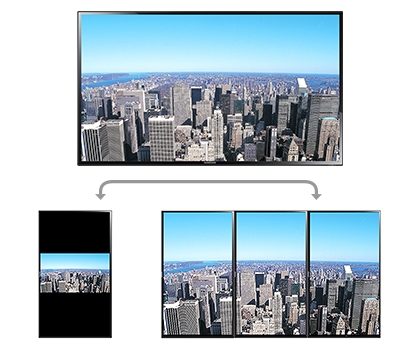

Greater display flexibility with Image Rotation
The MEC Series offers Image Rotation feature, enabling image orientation rotation from portrait to landscape for greater display flexibility. For convenience when rotating the image, two ratio options are available: original ratio or auto full sizing ratio. Image quality is preserved when the images are rotated, with no loss of ratio.

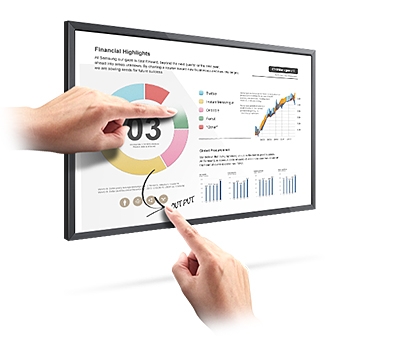

Engage Viewers with Interactive Touch Module Overay Option
The Touch Module Option transforms the display into a dynamic touch solution. The added touch capability enhances the user experience by enabling the user to interact with the content. Multi-touch capability up to six points delivers a satisfying experience to multiple users simultaneously. Monitor sizes 32 - 55 in. feature an infrared (IR)-type touch.
Specifications:
Display
H-Scanning Frequency |
30 - 81KHZ |
|
Maximum Pixel Frequency |
148.5MHz |
|
V-Scanning Frequency |
48 - 75HZ |
|
Panel
Diagonal Size |
55" |
|
Type |
120Hz e-LED BLU |
|
Resolution |
1920 x 1080 (16:9) |
|
Pixel Pitch (mm) |
0.21 (H) x 0.63 (V) |
|
Active Display Area |
1,209.6 (H) x 680.4 (V) |
|
Brightness |
450nit |
|
Contrast Ratio (Dynamic) |
5,000:1 |
|
Viewing Angle (Horizontal/Vertical) |
178:178 |
|
Response Time (G-to-G) |
8ms |
|
Display Color |
10bit Dithering - 1.07Billion |
|
Color Gamut |
72% |
|
Connectivity
Input |
RGB |
Analog D-SUB, DVI-D, Display Port 1.2 |
|
Video |
HDMI1, HDMI2, Component (CVBS Common) |
|
Audio |
Stereo mini Jack |
Output |
RGB |
DP1.2 (Loop-out) |
|
Audio |
Stereo mini Jack |
External Control |
RS232C (in / out) thru stereo jack, RJ45 |
|
External Sensor |
IR, Ambient Light |
|
Mechanical Specifications
Dimension |
Set Dimension (WxHxD) |
1,248.0 x 722.4 x 29.9mm |
|
Package Dimension (WxHxD) |
1,369.0 x 848.0 x 199.0mm |
Weight |
Set Weight |
16.4kg |
|
Package Weight |
22kg |
VESA Mount |
400 x 400mm |
|
Protection Glass |
Optional |
|
Stand Type |
Foot Stand (Optional) |
|
Media Player Option Type |
Embbeded, SBB-A (Attadched) |
|
Operation
Operating Temperature |
0C - 40C |
|
Humidity |
10 - 80% |
|
General Features
Key |
Slim & Light LFD with Built-in MagicInfo Lite |
|
Special |
Magic Clone (to USB), Auto Source Switching & Recovery, Lamp Error Detection, Super Clear Coating, Temperature Sensor, RS232C / RJ45 MDC,Plug and Play (DDC2B), PIP / PBP, Video Wall (10 x 10), Pivot Display, Image Rotation, Button Lock, DP 1.2 Digital Daisy Chain (Supporting 2 x 2 UHD Resolution, HDCP Support), Smart Scheduling, Smart F / W update, Clock Battery (80 hours Clock Keeping) Built In MagicInfo (Lite, Premium-S, Videowall-S). |
|
Internal Player |
Processor |
Cortex-A9 1GHz Dual Core CPU |
|
On-Chip Cache Memory |
L1 (I / D): 32KB / 32KBL2 (Unified): 512KB |
|
Clock Speed |
1GHz CPU Dual |
|
Main Memory Interface |
1GB Dual 32bit DDR3-667 (1,333MHz) |
|
Graphics |
2D & 3D Graphics Engine - Up to 1920 x 1080. 32bpp - Supports OpenGL ES |
|
Storage (FDM) |
4GB (1.2GB Occupied by O / S, 2.8GB Available) |
|
Multimedia |
Video Decoder - MPEG-1 / 2, H.264 / AVC (Dual) - VC-1, JPEG, PNG Audio DSP (Decoder) - AC3 (DD), MPEG, DTS and etc. |
|
IO Ports |
USB 2.0 |
|
Operating System |
Linux |
Power
Power Supply |
AC 100 - 240V ~ (+/- 10%), 50/60Hz |
|
Power consumption |
Off Mode |
less than 0.5 watts |
|
On Mode |
143 (Max) / 122 (Typ.) / 487.63 (BTU) |
|
Sleep Mode |
less than 0.5 watts |
Type |
Internal |
|
Accessory
Included |
Quick Setup Guide, Warranty Card, Application CD, D-Sub cable, Power Cord, Remote Controller, Batteries |
|
Optional |
Mount |
WMN250MD |
|
Specialty |
CML450D (Ceiling Mount) |
|
Stand |
STN-L4055AD |
Embedded PC
CPU |
SBB-A (Optional) |
|
N/B |
SBB-A (Optional) |
|
S/B |
SBB-A (Optional) |
|
GPU |
SBB-A (Optional) |
|
FDM/HDD |
SBB-A (Optional) |
|
Memory |
SBB-A (Optional) |
|
Ethernet |
SBB-A (Optional) |
|
Connectivity |
USB |
SBB-A (Optional) |
|
Output |
SBB-A (Optional) |
|
Others |
SBB-A (Optional) |
Certification
EMC |
FCC (USA) FCC Part 15, Subpart B class A, CE (Europe) EN55022, EN55024, VCCI (Japan) V - 3 (CISPR22), KCC (Korea): KN22, KN24, BSMI (Taiwan): CNS13438 (CISPR22), C-Tick (Australia): AS / NZS3548 (CISPR22), CCC(China): GB 9254 - 2008, GB 17625.1 - 2003 |
|
Environment |
ENERGY STAR 6.0 (USA) |
|
Safety |
CUL (USA + Canada): UL60065, TUV (Germany): EN60065, CB (Europe): IEC60065 / EN60065, EK (Korea): K60065, CCC (China): GB8898, PSB (Singapore ): IEC60065, GOST (Russia ): IEC60065, EN55022, SIQ (Slovenia ): IEC60065, EN55022, PCBC (Poland ): IEC60065, EN55022, NOM (Mexico): NOM - 001 - SCFI - 1993, IRAM (Argentina): IRAM, SASO (Saudi Arabia): IEC60065 |
