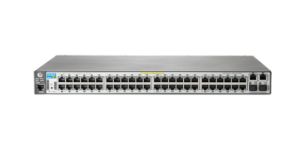

HP 2620-48-PoE+ Switch (J9627A)
Overview
The HP 2620 Switch Series consists of five switches with 10/100 connectivity. The HP 2620-24 Switch is a fanless switch with quiet operation, making it ideal for deployments in open spaces.
The HP 2620-24-PPoE+ Switch, HP 2620-24-PoE+ Switch, and HP 2620-48-PoE+ Switch are IEEE 802.3af- and IEEE 802.3at-compliant switches and provide up to 30 W per powered port. The HP 2620-48 Switch has variable speed fans for quiet operation.
All 2620 series switches include two 10/100/1000BASE-T ports and two SFP slots for Gigabit Ethernet uplink connectivity. An optional redundant external power supply is also available to provide redundancy in the event of a power supply failure.
With IPv4/IPv6 static and RIP routing, robust security and management features, free lifetime warranty, and free software updates, the HP 2620 Switch Series is a cost-effective solution for customers who are building converged enterprise edge networks.
Features
Quality of Service (QoS)
-
- Layer 4 prioritization: enables prioritization based on TCP/UDP port numbers
-
- Traffic prioritization (IEEE 802.1p): allows real-time traffic classification into eight priority levels mapped to eight queues
-
- Class of Service (CoS): sets the IEEE 802.1p priority tag based on IP address, IP Type of Service (ToS), Layer 3 protocol, TCP/UDP port number, source port, and DiffServ
-
- Rate limiting: sets per-port ingress enforced maximums and per-port, per-queue minimums
-
Connectivity
-
- Auto-MDIX: provides automatic adjustments for straight-through or crossover cables on all 10/100 and 10/100/1000 ports
-
- IPv6: IPv6 host: allows the switches to be managed and deployed at the edge of an IPv6 network. Dual stack (IPv4/IPv6): provides a transition mechanism from IPv4 to IPv6; supports connectivity for both protocols. MLD snooping: forwards IPv6 multicast traffic to the appropriate interface; prevents IPv6 multicast traffic from flooding the network.
-
- IEEE 802.3af Power over Ethernet (PoE): provides up to 15.4 W per port to IEEE 802.3af-compliant PoE-powered devices such as IP phones, wireless access points, and security cameras
-
- IEEE 802.3at Power Over Ethernet Plus: provides up to 30 W per port to IEEE 802.3 for PoE-/PoE+-powered devices such as video IP phones, IEEE 802.11n wireless access points, and advanced pan/tilt/zoom security cameras
-
- Pre-standard PoE support: detects and provides power to pre-standard PoE devices; see list of supported devices in the product FAQ at www.hp.com/networking/support
-
Resiliency and high availability
-
- External redundant power supply: provides high reliability
-
- IEEE 802.3ad Link Aggregation Protocol (LACP) and HP port trunking: support up to 24 trunks, each with up to 8 links (ports) per trunk
-
- IEEE 802.1s Multiple Spanning Tree: provides high link availability in multiple VLAN environments by allowing multiple spanning trees
-
Manageability
-
- Dual flash images: provides independent primary and secondary operating system files for backup while upgrading
-
- Friendly port names: allow assignment of descriptive names to ports
-
- Find-Fix-Inform: finds and fixes common network problems automatically, then informs administrator
-
- Multiple configuration files: allow multiple configuration files to be stored to a flash image
-
- Software updates: free downloads from the Web
Specifications
Ports
-
- 48 RJ-45 autosensing 10/100 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3at PoE+)<br>Media Type: Auto-MDIX<br>Duplex: half or full
- 1 RJ-45 serial console port
- 2 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T)<br>Duplex: 10BASE-T/100BASE-TX: half or full
- 1000BASE-T: full only
- 2 open mini-GBIC (SFP) slots
-
Memory and processor
Processor : PowerPC FreeScale 8313 @ 400 MHz, 512 MB flash, packet buffer size: 2 MB, 512 MB SDRAM, 4 MB flash ROM
Latency
-
- 100 Mb Latency: < 8.3 s (LIFO)
- 1000 Mb Latency: < 2.9 s (LIFO)
-
Throughput
up to 13.0 million pps
Routing/switching capacity
17.6 Gbps
PoE capability
382 W
Management features
-
- command-line interface
- Web browser
-
Power and operating requirements
Power consumption
54.9 W (maximum), 29.6 W (standby)
Input voltage
100-127/200-240 VAC
Operating temperature range
0 to 55C
Operating humidity range
15 to 95% (noncondensing)
Heat dissipation
325 BTU/hr (342.88 kJ/hr)
Dimensions and weight
Minimum dimensions (W x D x H)
44.3 x 36.83 x 4.39 cm
Weight
5.23 kg
(Fully loaded)
What's included
Differentiator
The HP 2620-48-PoE+ Switch is a managed 52-port switch with 48 auto-sensing 10/100 ports capable of PoE+ and 2 10/100/1000BASET and 2 miniGBIC ports
What's in the box
(1) HP 2620-48-PoE+ Switch
Warranty
Lifetime, advance replacement, next business day, phone support, software releases
