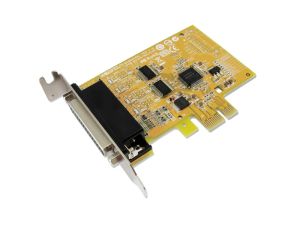

Sunix MIO6479AL 2-Port Serial RS-232, 1-Port Parallel IEEE1284 - Low Profile PCI Card
The majority of today’s motherboards are not equipped with any RS-232 or Parallel port. With SUNIX MIO6479AL Multi I/O board, users can expand two RS-232 COM and one IEEE1284 LPT ports to their system, allowing them to use serial and parallel devices further. This board is compatible with PCI Express x1, x2, x4, x8 and x16 lane, allowing the board to be installed in virtually any slim size PC system with low profile bracket structure. SUNIX MIO6479AL built-in SUNIX high performance and realizable native PCI Express controller, and as well built with many of SUNIX advanced features and technologies, making it the advanced and high efficient solution for commercial and industrial automation application.
Features
- Expands 2-port RS-232 COM and 1-port IEEE1284 LPT on system.
- With high reliable SUNIX SUN2410 native PCI Express 16C950 UART and IEEE1284 controller.
- Designed to meet PCI Express Base Specification Revision 2.0.
- Supports x1, x2, x4, x8, x16 (lane) PCI Express Bus connector keys.
- On-chip hardware auto flow control to guarantee no data loss.
- Build-in Serial-ATA power socket to source efficient DC power from system.
- On-chip hardware auto flow control to guarantee no data loss.
- Built-in 15KV ESD protection for all serial signals meets IEC1000-4-2 standard.
- Support IEEE 1284-1994 parallel port standard.
* ECP(Enhance Capacity Port) / EPP(Enhance Parallel Port)
* SPP (Standard Parallel Port) / BPP (Bi-direction Parallel Port).
- Plug-n-Play, I/O address and IRQ assigned by system.
- Low profile bracket design idea for slim or portable PC.
- Certified by CE, FCC, RoHS, and Microsoft WHQL approval.
- Support Microsoft Windows, Linux, and DOS.
Specifications
General
| Interface |
RS-232 and IEEE1284 |
| Controller |
SUNIX SUN2410 (16C950 UART Compatible) |
| BUS |
PCI Express Spec 2.0, Single-Lane (x1) |
| IRQ & IO |
Assigned by System |
Serial Communication
| Interface |
RS-232 |
| No. of Port |
2-port |
| FIFO |
128byte Hardware |
| Signal |
DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI |
| Baud rate |
50bps ~ 115.2Kbps |
| Stop bit |
1, 1.5, 2 |
| Parity |
even, odd, none, mark, space |
| Flow Control |
None, Xon/Xoff, RTS/CTS |
| Protection |
15KV ESD protection for each signal Human Body Model (HBM)
15KV IEC1000-4-2 Air Gap Discharge
8KV IEC1000-4-2 Contact Discharge |
| PCB Connector |
DB44 Female |
| Cable Connector |
DB 9 Male |
Parallel Communication
| Interface |
IEEE1284 |
| No. of Port |
1-port |
| Mode |
SPP / ECP / EPP / BPP |
| FIFO |
16byte Hardware |
| Speed |
Maximum 1.8MBps |
| PCB Connector |
DB44 Female |
| Cable Connector |
DB25 Female |
Driver Support
| Windows Client |
XP/Vista/7/8/8.1 (X86/X64) |
| Windows Server |
2000 / 2003 / 2008 / 2008 R2 / 2012 / 2012 R2 (X86/X64) |
| Windows Embedded |
Windows CE 4.2/5.0/6.0
XP Embedded / POSReady 2009 / POSReady 7 / Embedded System |
| Linux |
Linux 2.4.x / 2.6.x /3.x |
| DOS |
DOS |
Regulatory Approvals
| Hardware |
CE EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, VCCI Class B FCC Part 15 Class B, BSMI: CNS13438, C-Tick: CISPR22 AS/NZS, RoHS |
| Software |
Microsoft WHQL Windows
Windows Client: XP/Vista/7/8/8.1 (X86/X64)
Windows Server: 2000/2003/2008/2008 R2/2012/2012 R2 (X86/X64) |
Environment
| Operation Temperature |
0 to 60C (32 to 140F) |
| Operation Humidity |
5 to 95% RH |
| Storage Temperature |
-20 to 85C (-4 to 185F) |
Dimension
| PCB Dimension |
92 x 69 mm |
| Bracket |
Low Profile 80 mm |
| Bracket Space |
1 |
