IMG 1 of 1
No Longer Available

Part Number:
231931
(?) Brand:
Manuf No:
KVR13R9D4K2/32
Shipping Weight:
0.35 KG (Includes product packaging)
Estimate Shipping
Date Added:
All stock codes associated to this product
KVR13R9D4K2/32, 740617205664

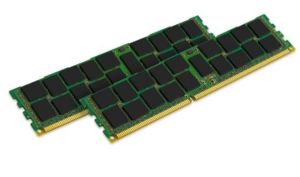

KVR13R9D4K2/32

  • 32GB (16GB 2G x 72-Bit x 2 pcs.) PC3-10600
  • CL9 Registered w/Parity 240-Pin DIMM Kit
DESCRIPTION
ValueRAM's KVR13R9D4K2/32 is a kit of two 2G x 72-bit (16GB) DDR3-1333 CL9 SDRAM (Synchronous DRAM), registered w/parity, 2Rx4 ECC memory modules, based on thirty-six 1G x 4-bit FBGA components per module. Total kit capacity is 32GB. The SPDs are programmed to JEDEC standard latency DDR3-1333 timing of 9-9-9 at 1.5V. Each 240- pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:

SPECIFICATIONS

CL(IDD) 9 Cycles
Row Cycle Time (tRCmin) 49.5ns (min.)
Refresh to Active/Refresh
Command Time (tRFCmin)
206ns (min.)
Row Active Time (tRASmin) 36ns (min.)
Maximum Operating Power 6.411W (per module)
UL Rating 94 V - 0
Operating Temperature 0 to 85 Degrees Celcius
Storage Temperature -55 to 100 Degrees Celcius
*Power will vary depending on the SDRAM and Register/PLL used.

FEATURES
  • JEDEC standard 1.5V (1.425V ~1.575V) Power Supply
  • VDDQ = 1.5V (1.425V ~ 1.575V)
  • 667MHz fCK for 1333Mb/sec/pin
  • 8 independent internal bank
  • Programmable CAS Latency: 9, 8, 7, 6
  • Programmable Additive Latency: 0, CL - 2, or CL - 1 clock
  • Programmable CAS Write Latency(CWL) = 7 (DDR3-1333)
  • 8-bit pre-fetch
  • Burst Length: 8 (Interleave without any limit, sequential with starting address “000” only), 4 with tCCD = 4 which does not allow seamless read or write [either on the fly using A12 or MRS]
  • Bi-directional Differential Data Strobe
  • Internal(self) calibration : Internal self calibration through ZQ pin (RZQ : 240 ohm ± 1%)
  • On Die Termination using ODT pin
  • On-DIMM thermal sensor (Grade B)
  • Average Refresh Period 7.8us at lower than TCASE 85°C, 3.9us at 85°C < TCASE < 95°C
  • Asynchronous Reset

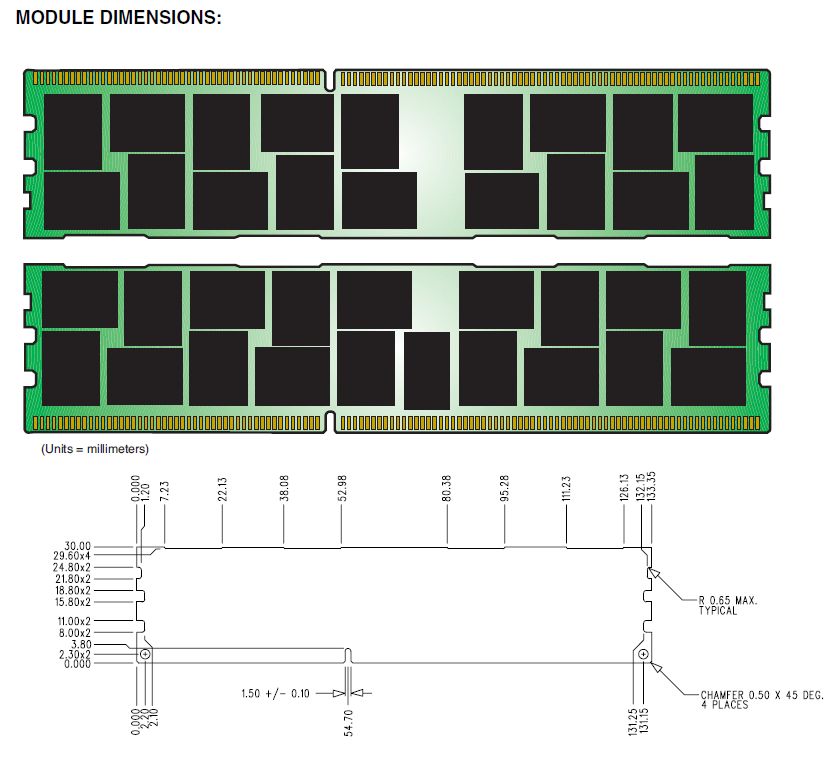

  • PCB : Height 1.180” (30.00mm), double sided component

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (Kingston) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
