Kingston 32GB (4 x 8GB) PC3L-10600 1333MHz DDR3 RAM - ECC Registered - ValueRAM Series

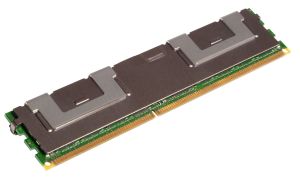

IMG 1 of 1
No Longer Available
Part Number:
231939
(?) Brand:
Kingston Web Site
Manuf No:
KVR13LR9Q4/32
Shipping Weight:
0.35 KG (Includes product packaging)
Estimate Shipping
Date Added:
10/12/2013
Details Files Finance Images & Video
Please choose carefully, we are unable to refund or exchange for incorrect choice. ECC memory is generally system/server specific and we recommend the use of our Kingston memory selector to ensure compatibility
All stock codes associated to this product
KVR13LR9Q4/32, 2061253, 740617206807
KVR13LR9Q4/32

  • 32GB 4Rx4 4G x 72-Bit PC3L-10600
  • CL9 Registered w/Parity 240-Pin DIMM
DESCRIPTION
This document describes ValueRAM's 4G x 72-bit (32GB) DDR3L-1333 CL9 SDRAM (Synchronous DRAM), low voltage, registered w/parity, 4Rx4 ECC memory module, based on thirty-six DDP 2G x 4-bit components. The SPD is programmed to JEDEC standard latency DDR3-1333 timing of 9-9-9 at 1.35V and 1.5V. This 240-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:

SPECIFICATIONS
CL (IDD) 9 Cycles
Row Cycle Time (tRCmin) 49.5ns (min.)
Refresh to Active/Refresh
Command Time (tRFCmin)
 260ns (min.)
Row Active Time (tRASmin) 36ns (min.)
Maximum Operating Power
1.35V = 6.741 W*
1.50V = 8.031 W*
UL Rating 94 V - 0
Operating Temperature 0 to 85 Degrees Celcius
Storage Temperature -55 to 100 Degrees Celcius

*Power will vary depending on the SDRAM and Register/PLL used.

FEATURES

  • JEDEC standard 1.35V (1.28V ~ 1.45V) and 1.5V (1.425V ~ 1.575V) Power Supply
  • VDDQ = 1.35V (1.28V ~ 1.45V) and 1.5V (1.425V ~ 1.575V)
  • 667MHz fCK for 1333Mb/sec/pin
  • 8 independent internal bank
  • Programmable CAS Latency: 9, 8, 7, 6
  • Programmable Additive Latency: 0, CL - 2, or CL - 1 clock
  • Programmable CAS Write Latency(CWL) = 7 (DDR3-1333)
  • 8-bit pre-fetch
  • Burst Length: 8 (Interleave without any limit, sequential with starting address “000” only), 4 with tCCD = 4 which does not allow seamless read or write [either on the fly using A12 or MRS]
  • Bi-directional Differential Data Strobe
  • Internal(self) calibration : Internal self calibration through ZQ pin (RZQ : 240 ohm ± 1%)
  • On Die Termination using ODT pin
  • On-DIMM thermal sensor (Grade B)
  • Average Refresh Period 7.8us at lower than TCASE 85°C, 3.9us at 85°C < TCASE < 95°C
  • Asynchronous Reset

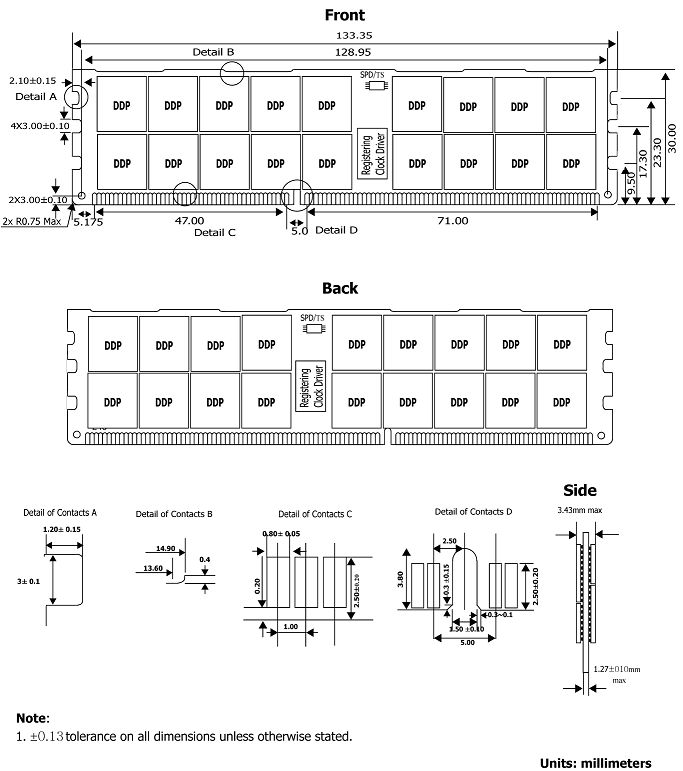

  • PCB : Height 1.180” (30.00mm), double sided component

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (Kingston) web site.
