All stock codes associated to this product
MN328
MN328
Overview

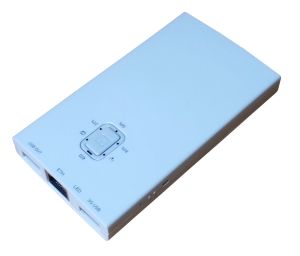

The Pocket Router from Minitar is a handy all-in-one portable router, perfect for regular travellers and people on the go. Simply plug the network cable into an Ethernet port (offered by many hotels) and enjoy wireless Internet coverage in your room for all Wi-Fi devices and smartphones, without using a power point as the Pocket Router is battery powered.
Description
The Pocket Router also comes with a 4200 mAh battery that can be used to recharge your iPod, iPhone, and iPad with a USB charger cable and can also support a Micro SD card for storage, so you can safely store data wherever you go.
The Pocket Router by Minitar is a handy all-in-one portable router, perfect for regular travellers and people on the go. Simply plug the network cable into an Ethernet port (offered by many hotels) and enjoy wireless Internet coverage in your room for all Wi-Fi devices and smartphones, without having to use a power point as the Pocket Router is battery powered. The Pocket Router comes with a 4200 mAh battery that can be used to recharge your smartphones and tablets with a USB charger cable and can also support a Micro SD card for storage, so you can safely store data wherever you go. Extend your wireless Internet range at home by using the Pocket Router as a repeater to add on to your current wireless range.
This compact router easily fits into a shirt pocket, briefcase or laptop bag making it the ultimate portable device. The hard case cover provides quality anti-scratch protection for the router. The Pocket Router is compatible with Microsoft Windows, Mac OS, NetWare, UNIX and Linux and also supports various 3G dongles.
- Suitable for business trips or the home/office environment
- 5 modes: access point, router, repeater, wireless bridge and wireless client
- 802.11n wireless standard, 150 Mbps connect speed
- Charge your smatphones and tablets with the built-in battery charger
- USB port supports external 3G USB modem
- Power Supply -100-240 V 50/60 Hz 0.2 A
Specifications
Features:
| Button |
Reset Button |
| Antenna |
Built-in omni-directional antenna |
| Wireless Features |
Frequency 2.4-2.4835 GHz |
| Working Modes |
AP, Router, Repeater Bridge, Client |
| Wireless Functions |
Enable/Disable Wireless Radio, SSID Switch, Channel Switch 1-13, Band Switch 20 MHz/40 MHz/Auto, Wireless Mode 11n only/11bgn mixed/11bg mixed/11g only/11b only |
| Wireless Security |
64/128/152-bit WEP/WPA/WPA2, WPA-PSK/WPA2-PSK |
Technical Specifications:
| Dimensions (W x D x H) |
111 x 63 x 16.8 mm |
| Device Weight |
152 g |
| USB |
3G/4G-USB, USB-Out based on USB2.0 standard |
| ETH |
Standard access 10/100 M RJ45 Ethernet access terminal |
| DC Power |
Micro USB interface, 5 V, 1-3 A interface access |
| Standard USB Charging |
Support 5 V, 1-3 A |
| Reset/Et SW |
Re-set and Ethernet On/Off Button |
| 3G/DHCP |
3G/4G & DHCP auto switching |
| Battery |
4200 li-ion battery pack detachable |
| Power On Button |
Slide moving type Power On/Off |
| Password Setting |
64/128 WEP, WPS-PSK, WPA2-PSK |
| Wireless Standards |
IEEE 802.11g, IEEE 802.11b, IEEE 802.3, IEEE 802.3u |
| Interface |
1x 10/100 Mbps WAN/LAN PORT (Auto MDI/MDIX) |
| Signal Rate |
11n : Up to 150 Mbps (dynamic), 11g : Up to 54 Mbps (dynamic), 11b : Up to 11 Mbps (dynamic) |
| Battery Power Times |
Connecting with cable broadband 11-12 hours, Reading Micro SD Card 10 hours, Supporting 3G modem or USB drive 7-8 hours |
Package Contents:
Pocket Router, Battery, USB Converter, MICRO USB Cable, Quick Start Guide, Warranty Card
System Requirements:
Microsoft Windows 98 SE, NT, 2000, XP, Vista or Windows 7, MAC OS, NetWare, UNIX & Linux
