All stock codes associated to this product
JG535A, 887111188830

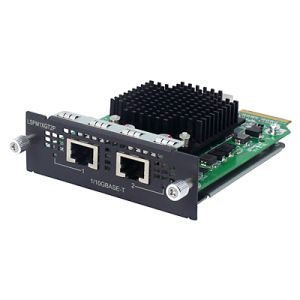

HP 5500/5120 2-port 10GBASE-T Module
JG535A
Overview
2-port 10GBASE-T module provides 2 dual-speed 1000BASE-T or 10GBASE-T RJ-45 ports; can also be used for low cost stacking. For use with HP 5120 EI, 5500 SI, 5500 EI, and 5500 HI switches.
Description
HP 5500/5120 2-port 10GBASE-T Module: 2-port 10GBASE-T module for HP 5120 EI, 5500SI/EI/HI switches. Provides 2 Dual Speed 1000BASE-T or 10GBASE-T Copper RJ-45 Ports. Supports EEE 802.3az. Can be used for low cost stacking.
100m over Cat 7 or Cat 6a. : Up to 100m distance using RJ-45 copper.*55m over Cat 6 / Cat 5e. 1G or 10G dual speed with auto-negotiation: 2- ports dual speed(1G/10G) copper RJ-45 ports.
IRF stacking scalablility: work with HP IRF stacking cable to provide virtual chassis solution. Supports EEE : 802.3az supported.
Lifetime warranty: advance hardware replacement for as long as you own theproduct with next-business-day delivery (available in mostcountries)†. Electronic and telephone support: limited electronic and business-hours telephone support is available from HP for the entire warranty period; to reach our support centers, refer to www.hp.com/networking/contact-support; for details on the duration of support provided with your product purchase, refer to www.hp.com/networking/warrantysummary. Software releases: to find software for your product, refer to www.hp.com/networking/support; for details on the software releases available with your product purchase, refer to www.hp.com/networking/warrantysummary.
Specifications
| Application/Usage |
Data Networking |
| Interfaces/Ports |
2 x 10GBase-T LAN |
| Interfaces/Ports Details |
2 x RJ-45 10GBase-T Network LAN |
| Green Compliant |
Yes |
| Green Compliance Certificate/Authority |
RoHS |
| Limited Warranty |
Lifetime |
|
Technical Information
| Application/Usage |
Data Networking |
|
Interfaces/Ports
| Interfaces/Ports |
2 x 10GBase-T LAN |
| Interfaces/Ports Details |
2 x RJ-45 10GBase-T Network LAN |
|
Media & Performance
| Connectivity Media |
Category 7 Twisted Pair 10GBase-T |
| Data Transfer Rate |
10 Gbps 10 Gigabit Ethernet |
|
Miscellaneous
| Green Compliant |
Yes |
| Green Compliance Certificate/Authority |
RoHS |
|
Warranty
| Limited Warranty |
Lifetime |
|
