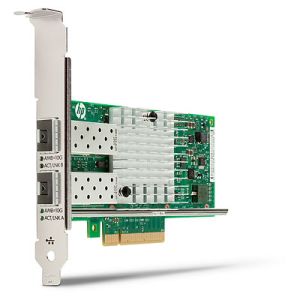

HP C3N52AA Intel X520 Gigabit Network Atapter - Dual Port - For HP Workstations

IMG 1 of 1
No Longer Available
Part Number:
312251
(?) Brand:
HP Web Site
Manuf No:
C3N52AA
Shipping Weight:
0.7 KG (Includes product packaging)
Estimate Shipping
Date Added:
29/1/2014
Details Files Finance Images & Video
All stock codes associated to this product
C3N52AA, 887111344649
Intel X520 10GbE Dual Port Adapter
C3N52AA

Description

The HP X520 10GbE Dual Port Adapter is ideal for high performance workstation computing, workstation virtualization, security, consolidation, and other applications requiring the highest throughput.
  • Up to 40Gb/s bi-directional near line rate throughput.
  • Hardware acceleration TCP/IP/UDP stateless intelligent offloads.
  • No firmware updates required -- less management and downtime.
  • Support for Preboot eXecution Environment (PXE), Jumbo Frames, Checksum & Segmentation Offload, IPv6 and RSS.
  • Low profile design ships with standard height and low-profile brackets.

Connector Description 8 lane (x8) PCI Express bus, PCIe 2.0 (5GT/s)
Drive Height Low profile
Manufacturer Warranty Max warranty of the HP Workstation in which it is installed, up to 3-years. Minimum one year warranty.
Transfer Rate Up to 40Gb/s bi-directional near line rate throughput
Warranty Max warranty of the HP Workstation in which it is installed, up to 3-years. Minimum one year warranty.



Extended specifications




Interfaces/Ports
Host Interface PCI Express x8
USB No
Serial Port No
Ethernet AUI No
XJACK No
PoE (RJ-45) Port No



Media & Performance
Media Type Supported Twinaxial
Optical Fiber



I/O Expansions
Number of Total Expansion Slots 2
Expansion Slot Type SFP+
Number of SFP+ Slots 2



Network & Communication
InfiniBand No



Physical Characteristics
Card Height Low-profile
Form Factor Plug-in Card



Miscellaneous
Device Supported PC
Certifications & Standards
  • FCC B
  • UL
  • CE
  • VCCI
  • BSMI
  • CTICK
  • KCC
  • IEEE 1588



Warranty
Limited Warranty 3 Year
