All stock codes associated to this product
LH46MDCPLGC/XY
MD46C
Overview
Eco-friendly LFDs in convenient, lightweight design
Optimised display for your core business needs
Features
Designed for convenient and efficient content display, Samsung MDC Series displays are the mainstream LFDs for standard usage that come complete with the Samsung Smart Signage Platform (SSSP). A complete set of tools to create, schedule and manage a wide range of messaging content types, SSSP provides easy manageability without the need for external PC or media player. Together with the MagicInfo Premium i Player available in a detachable PC module for advanced content display, your business can provide professional signage in multiple locations in a cost-efficient way with MDC Series displays.
Create and manage content easily on all-in-one displays
The built-in Samsung Smart Signage Platform (SSSP) on MDC Series displays eliminates the need for additional PCs or media players to generate and control local content. You can create and display custom messaging with just a few clicks.
The powerful SSSP has a dual-core CPU with 1GB of memory, 4GB of storage, a high-performing video processor and Samsung MagicInfo Premium S software. You can create and save messages through an easy-to-use interface, with free signage templates and simple tools for fast content creation. The included Samsung MagicInfo Premium S Player handles content playback for video walls up to 4 x 4 and scheduling of a wide range of content and file types.

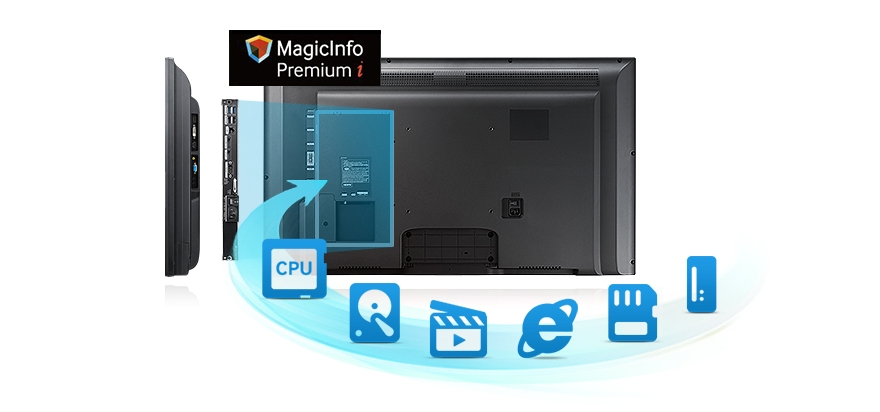

Advanced content management software for enhanced content display
MDC Series displays support a detachable Setback Box-C (SBB-C) PC module, in which MagicInfo Premium i software can be installed. With the SBB attached to the display, you can use more advanced content management features with less clutter and efficient use of space.
Featured at the high end of the MagicInfo media player family, MagicInfo Premium i Player supports enhanced content display features. The player connects to Samsung MagicInfo Server to enable the display of Really Simple Syndication (RSS) feeds and special effects, and supports advanced features including interactive content and integration with database information.

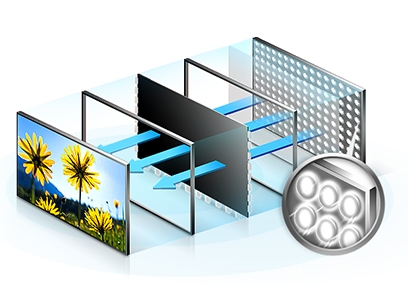

Deliver your messages in superior picture quality
MDC Series displays, featuring d-LED BLU technology, enhance your digital messaging with superior picture quality. You can promote your message in crisp, realistic colour and rich black hues across the screen to attract customer attention and differentiate your business from the competition. The immersive picture quality with deeper black tone is possible through the new backlight dimming solution, which controls the LED backlight in dimming on mode to improve the colour contrast.
Plus, d-LED BLU technology provides a slim, light, eco-friendly display design that uses less electricity than conventional cold cathode fluorescent lamp (CCFL) displays for lower operating costs.

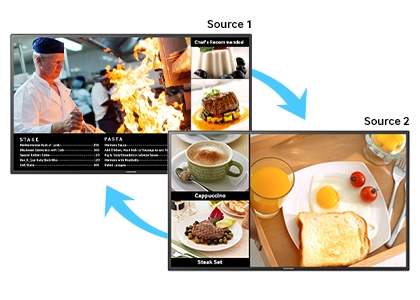

Keep your message playing with automatic source switching
The Auto Source Switching feature of MDC Series displays maintains virtually constant and seamless content display. This feature automatically changes the display from one content source to another when the original source fails. Source recovery enables a content source to be used as a backup for ongoing play when another source is unavailable. This flexibility ensures that your business content remains available when you need it.
Magic Clone
Easily apply consistent settings to displays in multiple locations with Samsung Magic Clone, without the cumbersome efforts to set up displays one by one. Programme one display for settings such as volume, brightness and more. After the first display has been updated, save the settings onto a USB or external drive. Then simply plug the USB or external drive into new displays to copy options from one display to others.

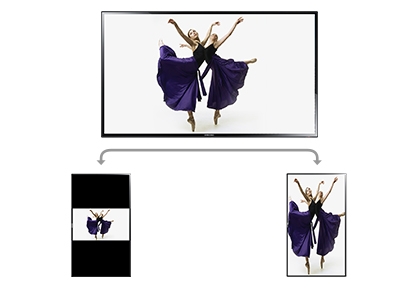

Display content optimally with easy image rotation
Create content in portrait or landscape modeand then rotate it without having to rework on the content. Samsung displays support a pivot and Image Rotation function that display content vertically or horizontally, without ratio distortion. Conveniently rotate your content with two display options: original ratio and full ratio.

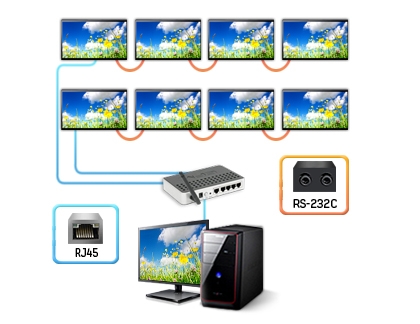

Remote control
Remotely controlling multiple displays become easier on Samsung displays. The displays can be simultaneously controlled with RS-232C for displays in proximity or with RJ-45 and the built-in LAN card for displays located over a long distance. Users can control the displays using Samsungs Multi Display Control (MDC) programme or any other control programme that is supported by protocol.
Specifications
Panel
| Diagonal Size |
46" |
|
| Type |
60Hz LED BLU |
|
| Resolution |
1920 x 1080 (16:9) |
|
| Pixel Pitch (mm) |
0.17675(H) x 0.53025(V) |
|
| Active Display Area |
1,018.08(H) x 572.67(V) |
|
| Brightness |
350nit |
|
| Contrast Ratio (Dynamic) |
5,000:1 |
|
| Viewing Angle (Horizontal/Vertical) |
178:178 |
|
| Response Time (G-to-G) |
8ms |
|
| Display Color |
16.7M |
|
| Color Gamut |
72% |
|
Connectivity
| Input |
RGB |
Analog D-SUB, DVI-D |
| |
Video |
HDMI, Component(CVBS Common) |
| |
Audio |
Stereo mini Jack |
| Output |
Audio |
Stereo mini Jack |
Mechanical Specifications
| Dimension |
Set Dimension (WxHxD) |
1,057.8 x 617.0 x 94.5mm |
| |
Package Dimension (WxHxD) |
1,202 x 698 x 157mm |
| Weight |
Set Weight |
12.6kg |
| |
Package Weight |
16.6kg |
| VESA Mount |
400 x 400mm |
|
| Stand Type |
Foot Stand (Optional) |
|
| Media Player Option Type |
Embbeded, SBB-A(Attadched) |
|
Operation
| Operating Temperature |
0C~40C |
|
| Humidity |
10~80% |
|
Power
| Power Supply |
AC 100 - 240V~(+ / - 10%), 50/60Hz |
|
| Power consumption |
Off Mode |
Less than 0.5 watts |
| |
On Mode |
121 (Max) / 65 (Typ.) / 412.61 (BTU) |
| |
Sleep Mode |
Less than 0.5 watts |
Accessory
| Included |
Quick Setup Guide, Warranty Card, Application CD, D-Sub cable, Power Cord, Remote Controller, Batteries |
|
| Optional |
Mount |
WMN4270SD, WMN250MD |
| |
Specialty |
CML450D (Ceiling Mount) |
| |
Stand |
STN-L4055AD |
