HOME / Back -> Monitors -> 30" & Larger LCD -> Samsung

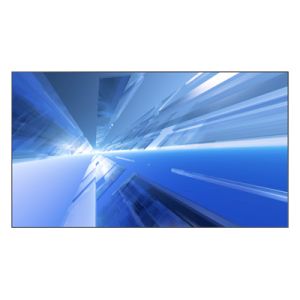

Samsung LH55UDCPLBB/XY UD55C Commercial LED Display
  • 55"Direct-LED Backlight, Widescreen, 8ms, 1920x1080, 3500;1, 700cd/m2, VGA, DVI, HDMI, DisplayPort

IMG 1 of 1
No Longer Available
Part Number:
312726
(?) Brand:
Samsung Web Site
Manuf No:
LH55UDCPLBB/XY
Shipping Weight:
60 KG (Includes product packaging)
Estimate Shipping
Date Added:
6/2/2014
Details Files Finance Images & Video
All stock codes associated to this product
LH55UDCPLBB/XY

UD-C 55" Direct-Lit LED Display


UD55C

Samsung's UD-C Series delivers sharp, bright, impactful messages with ultra high-definition resolution and easy content sharing across multiple devices. Factory tuned with advanced color calibration, enjoy optimal uniformity and impressive image quality on the 55" display. And with Samsung's Advanced Color Management solution, you can fine-tune images to your unique specifications with ease.

  • Advanced Color Calibration
  • Advanced Color Management
  • DisplayPort 1.2
  • Sharp, Bright, Impactful

Product Features


Advanced Color Calibration

UD-C Series displays are factory tuned for Brightness, Color Temperature and Gamma. They deliver optimal uniformity and impressive images right out of the box.


Advanced Color Management

Fine-tune images through Samsungs new Advanced Color Management solution. A user-friendly interface makes detailed color adjustments simple.


DisplayPort 1.2

This digital loop-out feature lets you easily share content with multiple screens while still achieving ultra high-definition resolution. Its an easy and cost-effective way to connect multiple displays.

Specifications:

Series Name
Series Name UD-C
Display
Panel Technology 60Hz (Direct-LED Backlight)
Contrast Ratio (Typical) 3500:1
Viewing Angle (H/V) 178/178
Response Time 8ms
Connectivity
Input VGA (D-sub 15 pin), DVI-D, DisplayPort 1.2, Composite, HDMI (x2), Component, Stereo Mini Jack
Output Display Port 1.2, Stereo Mini Jack
External Control RS232C (In/Out), RJ45
Sensor Detachable Type (IR, Ambient)
Power
Power Supply AC 100 - 240 V~ (+/- 10 %), 50/60 Hz
Power Consumption (Typical/Max) 160W/220W
Power Consumption (Standby) <0.5W
Environmental Conditions
Operating Temperature 0C - 40C
Operating Humidity 10%~80%
Features
Special Advanced Color Management, Magic Clone, Auto Source Switching & Recovery, Lamp Error Detection, Anti-Retention (Haze 44%), Temperature Sensor, RS232C/RJ45 MDC, Plug and Play (DDC2B), PIP/PBP, Video Wall (10 x 10), Pivot Display, Image Rotation, Button Lock, DP 1.2 Digital Daisy Chain (Supporting 2 x 2 UHD Resolution, HDCP Support), Smart Scheduling, Smart F/W Update, Clock Battery (80 hrs. Clock Keeping), Built-In MagicInfo (Lite, Premium-S, Videowall-S)
Media Player Type Cortex-A9 1Ghz Dual Core, 1GB DDR3, 8GB FDM, USB (2)
VESA Standard Wall-Mount Interface 600 x 400mm
24/7 Operation Yes
Dimensions
Without Stand (W x H x D) 47.8 x 27.0 x 3.8
Packaging (W x H x D) 53.3 x 32.3 x 12.2
Bezel Width 3.7mm (U/L), 1.8mm (R/B)
Weight
Set 52.8 lb.
Package 72.6 lb.
Service
Standard Warranty 3 Years On-Site (Parts/Labor)
Accessories
Included in Box Quick Setup Guide, Warranty Card, Application CD, D-Sub cable, Power Cord, Remote Controller, Batteries
Optional Wall Mount Optional Mount: WMN-4675MD
Optional Stand Optional Stand: MID-UD55FS
Optional Media Player Optional Media: Player: SBB-C, SBB-CD7, SBB-CQ7
Green Management
ENERGY STAR Rating ENERGY STAR 6.0
RoHS Compliant Yes
Emission Standard EMC
Packaging Recyclability Yes

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 year return to base

Full manufacturers warranty details are available at the manufacturers (Samsung) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.

Please note: Most LCD monitors are covered by a 'dead pixel' policy that is manufacturer and model dependent, please contact the manufacturer for exact policy specifications.
