Samsung MEC Series professional displays offer your business a high image resolution and lightweight, space-saving design.
Suitable for a range of organisations and applications, Samsung MEC series LED displays are designed to display content with a high image resolution and maximum effectiveness. They also offer space-saving slim and lightweight design, as well as superior energy efficiency that minimises the total cost of ownership. The integrated Samsung Smart Signage Platform and MagicInfo Premium S player provide streamlined display management that allows businesses to deliver various types of content seamlessly and professionally.
ME75C displays are an exceptional choice over projectors and screens for delivering content in a meeting room. Slim and light with narrow bezels, these digital signages are easy to handle and install. Unlike projected images in a darkened room, digital signage presentations retain picture quality with broad colour ratios, deep blacks and sharp images, even in bright light. Content shown on ME75C displays has virtually no distortion. Images arent blurred when the screen is touched. The presenter isnt dazzled by light from a projector, nor does the presenter throw a shadow on the screen. The reduced light scatter and reduced reflection make the content easier to read, increasing audience concentration.
With all of these features, ME75C displays are the perfect alternatives for a projector or a screen, and whats more, your presentation area is free from machinery and cables. Also, with no bulbs to replace and less overall maintenance than a projector, ME75C displays have a longer, easier-to-maintain life span.
Turn the digital signage into an e-Board for greater interaction
Use the ME75C display as an interactive e-Board for engaging learning environment by installing an optional touch overlay and Samsung MagicIWB 2.0 software. With the overlay, the teacher can deliver dynamic information by drawing and writing directly on the screen. This visually engaging presentation increases students interest and fosters better interaction than with a whiteboard or blackboard. The content on the display are easy to read, thanks to the overlays anti-glare film. The film also provides a smooth handwriting surface and real handwriting feel to further enhance the information delivery experience. Plus, the touch overlay doesnt greatly affect the slim display depth, nor does it block the displays narrow bezels. So even with the touch overlay installed, sleek ME75C display is a perfect complement to the classroom dcor.
Combined with the optional Samsung MagicIWB 2.0 Basic, or Samsung MagicIWB 2.0 Full software providing more expansive support for content such as text, video, and presentation files, ME75C display can enrich the learning experience with increased interactivity. In addition, Samsung MagicIMS 2.0 software can also be purchased for effective control and management of the screen sharing between the Interactive WhiteBoard and the students PCs.

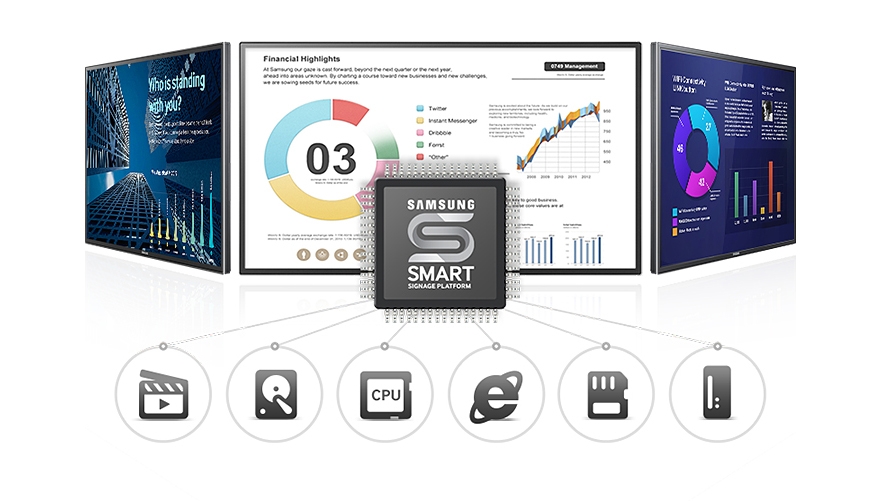

Create, display and manage content effortlessly with embedded Samsung Smart Signage Platform
Samsung Smart Signage Platform (SSSP) is embedded within Samsung displays, providing the power of a dual-core CPU and a combination of media player and integrated display solution, MagicInfo Premium S player. The solution eliminates the need for additional PC modules, making installation and maintenance easier by providing all the necessary functions for display operation in a single display.
Using the included MagicInfo Premium S player, you can create, schedule, and deploy content effortlessly. Multiple types of content can be streamed simultaneously and continuously courtesy of the dual-core CPU and 4GB of storage, and a high performance video processor integrated on a single chip. Save more by paying less for a display integrated with a media player and premium management solution.
You can create multimedia and interactive content easily with pre-made templates. Customise your message using the intuitive user interface. Content can be played on multiple displays from a central PC, directly from internal storage or from a USB drive through plug and play. You can also efficiently monitor and schedule various types of content on multiple displays from one central location. These features of the embedded Samsung MagicInfo Premium S player come at no additional cost. With SSSP and the MagicInfo Premium S player, monitoring display status and controlling display operation have never been simpler.
Connect wirelessly to display multiple types of content
Theres no need for wired cables to be connected from PC module or any other device to the display to transmit the content any more. Built-in Wi-Fi is standard with ME75C displays, achieved with the Intel WiDi 2.0 (Wireless Display) platform. Use Device to Display function to clone content wirelessly from the display to laptops, tablets or smartphones in the room, or from a device to the display. You can also play different content on each device and on the ME75C display. Without the need for wired connection, ME75C displays will decrease your cost of installation as well as simplify your operation of wall-mounted or housed displays. Plus, Full High Definition resolution and 5.1 channel audio support are included for high-quality video, image and audio transfers, helping you deliver impressive presentations to the audience.

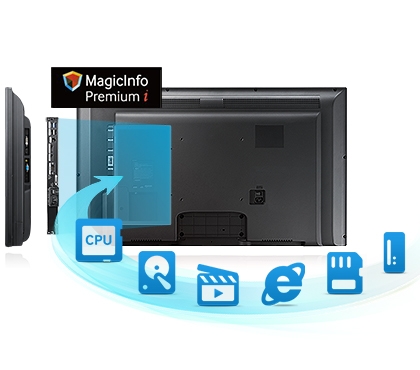

Upgrade content display with advanced management software in optional PC module
ME75C displays support a detachable Setback Box-C (SBB-C) and Plug-in Module-B (PIM-B) PC module in which MagicInfo Premium i and MagicIWB software can be installed for enhanced digital signage use suited to diverse settings and needs. With these optional PC modules attached to the display, you can use advanced content management features for your business and education purposes while saving space and reducing clutter. To use the signage as e-board, plug in the optional PIM-B pre-installed with MagicIWB Basic, and enjoy the benefits of enhanced interaction.

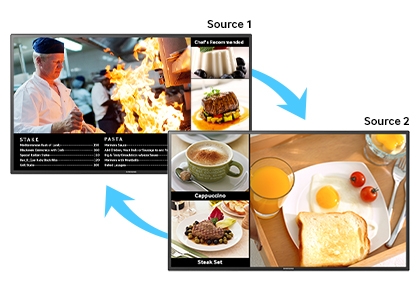

Keep your message playing with automatic source switching
The Auto Source Switching feature on ME75C displays maintains virtually continuous, seamless content display. This feature automatically changes the display from one content source to another when the original source fails. Source recovery enables a content source to be used as a backup for ongoing play when another source is unavailable. This flexibility ensures that your business content remains available when you need it.
Apply the setting easily on multiple screens with Magic Clone
With Samsung Magic Clone, you can easily apply consistent settings to displays in multiple locations, without the cumbersome effort of setting up displays one at a time. programme one display with settings such as volume, brightness and more and save the settings onto a USB or external drive. Then simply plug the USB or external drive into each new display to copy the settings.

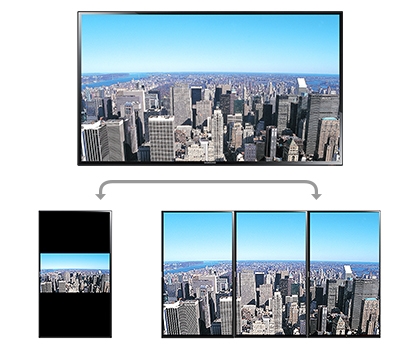

Increase display flexibility with auto image rotation
Whether you create content in portrait or landscape mode, you can rotate it without reworking the content. ME75C displays support a pivot and image rotation function that displays content vertically or horizontally, without image distortion. Conveniently rotate your content automatically with two display options: original ratio and full ratio. These options preserve image quality when the images are rotated, with no loss of ratio.
Control connectivity with multiple options
ME75C displays offer powerful connectivity, with RJ45 and RS-232 connections that can be used simultaneously. Using a DVI loop out, a single presentational image can be shared with nearby digital signages. This feature eliminates the need to purchase separate video signal distributors for each display, further reducing equipment costs.
ME75C displays also support High-bandwidth Digital Content Protection (HDCP) by using a DisplayPort 1.2 interface. With the HDCP support, LiveTV, Blu-ray Disc and other HDCP content can be presented without an HDCP distributor.
Specifications:
Display
| H-Scanning Frequency |
30 - 81KHz |
|
| Maximum Pixel Frequency |
148.5MHz |
|
| V-Scanning Frequency |
48 - 75Hz |
|
Panel
| Diagonal Size |
75" |
|
| Type |
240Hz LED BLU |
|
| Resolution |
1920 x 1080 (16:9) |
|
| Pixel Pitch(mm) |
0.2865 (H) x 0.8595 (V) |
|
| Active Display Area |
1650.24 (H) x 928.26 (V) |
|
| Brightness |
550nit |
|
| Contrast Ratio (Dynamic) |
10000:1 (AV Mode) |
|
| Viewing Angle (Horizontal/Vertical) |
178 / 178 |
|
| Response Time (G-to-G) |
8ms |
|
| Display Colour |
10bit Dithering - 1.07Billion |
|
| Colour Gamut |
72% |
|
| Contrast Ratio |
5000:1 |
|
Connectivity
| Input |
RGB |
Analog D-SUB, DVI-D, Display Port 1.2 |
| |
Video |
HDMI1,HDMI2, Component (CVBS Common) |
| |
Audio |
Stereo mini Jack |
| Output |
RGB |
DP1.2 (Loop-out) |
| |
Audio |
Stereo mini Jack |
| External Control |
RS232C (in / out) thru stereo jack, RJ45 |
|
| External Sensor |
IR, Ambient Light |
|
Mechanical Specification
| Dimension |
Set Dimension (WxHxD) |
1678.2 x 958.7 x 48.6mm |
| |
Package Dimension (WxHxD) |
1863 x 1173 x 473mm |
| |
Bezel Width L/R/T |
12.5mm |
| |
Bezel Width Bottom |
15mm |
| Weight |
Set Weight |
45.5kg |
| |
Package Weight |
65.6kg |
| VESA Mount |
400 x 400mm |
|
| Stand Type |
Foot Stand (Optional) |
|
| Media Player Option Type |
Embbeded, SBB-C / PIM-B (Attachable) |
|
Operation
| Operating Temperature |
0C ~ 40C |
|
| Humidity |
10 ~ 80% |
|
General Features
| Key |
Slim & Light LFD with Built-in MagicInfo Lite |
|
| Special |
Magic Clone (to USB), Auto Source Switching & Recovery, Lamp Error Detection, Super Clear Coating, Temperature Sensor, RS232C / RJ45 MDC,Plug and Play (DDC2B), PIP / PBP, Video Wall (10 x 10), Pivot Display, Image Rotation, Button Lock, DP 1.2 Digital Daisy Chain (Supporting 2 x 2 UHD Resolution, HDCP Support), Smart Scheduling, Smart F / W update, Clock Battery, (80hrs Clock Keeping) Built In Speakers, Built In MagicInfo (Lite, Premium-S, Videowall-S), WiFi Embedded, WiDi 2.0 |
|
| Touch Screen Module |
CY-TM75LBC/EN |
|
| Internal Player |
Processor |
Cortex-A9 1GHz Dual Core CPU |
| |
On-Chip Cache Memory |
L1 (I/D) : 32KB / 32KBL2 (Unified) : 512KB |
| |
Clock Speed |
1GHz CPU Dual |
| |
Main Memory Interface |
1GBDual 32bit DDR3-667 (1333MHz) |
| |
Graphics |
2D & 3D Graphics Engine - Up to 1920 x 1080. 32bpp - Supports OpenGL ES |
| |
Storage (FDM) |
4GB (1.2GB Occupied by O/S, 2.8GB Available, ) |
| |
Multimedia |
Video Decoder - MPEG-1 / 2, H.264 / AVC (Dual) - VC-1, JPEG, PNG Audio DSP (Decoder) - AC3 (DD), MPEG, DTS and etc. |
| |
IO Ports |
USB 2.0 |
| |
Operating System |
Linux |
Power
| Power Supply |
AC 100 - 240 V~ (+/- 10 %), 50 / 60 Hz |
|
| Power Consumption |
Off Mode |
Less than 0.5W |
| |
On Mode |
319 (Max) / 290 (Typical) / 1087.79 (BTU) |
| |
Sleep Mode |
less than 0.5W |
| Type |
Internal |
|
Embedded PC
| CPU |
SBB-C, PIM (Optional) |
|
| N/B |
SBB-C, PIM (Optional) |
|
| S/B |
SBB-C, PIM (Optional) |
|
| GPU |
SBB-C, PIM (Optional) |
|
| FDM/HDD |
SBB-C, PIM (Optional) |
|
| Memory |
SBB-C, PIM (Optional) |
|
| Ethernet |
SBB-C, PIM (Optional) |
|
| Connectivity |
USB |
SBB-C, PIM (Optional) |
| |
Output |
SBB-C, PIM (Optional) |
| |
Others |
SBB-C, PIM (Optional) |
Certification
| EMC |
FCC (USA) FCC Part 15, Subpart B class A CE (Europe) EN55022, EN55024 VCCI (Japan) V-3 (CISPR22) KCC (Korea):KN22, KN24BSMI (Taiwan): CNS13438 (CISPR22) C-Tick (Australia): AS/NZS3548 (CISPR22) CCC (China):GB 9254-2008, GB 17625.1-2003 |
|
| Safety |
cUL (USA+Canada): UL60950 TUV (Germany): EN60950 CB (Europe): IEC60950 / EN60950 EK (Korea): K60950 CCC (China): GB4943.1 PSB (Singapre ): IEC60950 GOST (Russia ): IEC60950, EN55022 SIQ (Slovenia ): IEC60950, EN55022 PCBC (Poland ): IEC60950, EN55022 NOM (Mexico ): NOM-001-SCFI-1993 IRAM (Argentina ): IRAM SASO (Saudi Arabia ): IEC60950 BIS (India): IS13252 |
|
Accessory
| Included |
Quick Setup Guide, Warranty Card, Application CD, D-Sub cable, Power Cord, Remote Controller, Batteries |
|
| Optional |
Mount |
WMN4675MD |
| |
Stand |
STN-L75D |
