Samsung 460DR-2 Outdoor LCD TV/Display - Silver/Black
  • 46", Widescreen 1500cd/m2, 10000;1, 1920x1080, 2xHDMI, Component

IMG 1 of 1
No Longer Available
Part Number:
313303
(?) Brand:
Samsung Web Site
Manuf No:
LH46DRBPLBB/EN
Shipping Weight:
30 KG (Includes product packaging)
Estimate Shipping
Date Added:
13/2/2014
Details Files Finance Images & Video
All stock codes associated to this product
LH46DRBPLBB/EN, 2566194
Ultimate Outdoor Display
460DR-2

Discover an easy, cost-effective way to create a powerful display, Samsung 460DR-2 is the LFD for you. Plus, the Samsung LFD Outdoor Kit lets you create an outdoor digital display that’s easily customizable for your needs and can be used in bright sunlight.




High brightness, increased visibility.

Worried about less-than-favorable lighting conditions making your image difficult to read? This LFDs panel is three times brighter than a TV screen and delivers excellent visibility even under the brightest lighting conditionsoutside or indoors. It even adjusts its intensity levels based on the picture to deliver crystal clear images.

A great picture thats glare-free.


Whether you have a story to tell or a product to sell, its important that your image is crystal clear. This Samsung LFD delivers just thateven if your display is located in a brightly-lit environment. It eliminates any reflections that can disrupt your ads readability, keeping images smooth and visible.

Create the ultimate digital display.


The Samsung LFD Outdoor Kit lets you create an outdoor digital display thats easily customizable for your needs and can be used in bright sunlight. A special, high brightness panel ensures your ads are always seen. Cabinet design and thermal installation consultation from Samsung experts is also available.

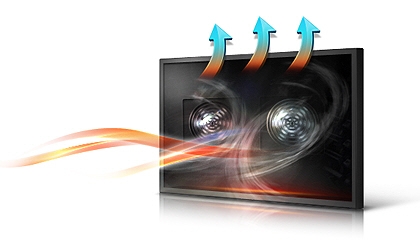

A cool way to ensure longevity.


Enjoy continuous, reliable operation thanks to a built-in fan control. Housed inside of the LFD, the fan guarantees you can count on it for years to come without worrying about it overheating. You can even control the fan with an easy-to-use on screen display.

Choose the right view, landscape or portrait.


This Samsung LFD gives you the flexibility to display your image vertically or horizontallywhatever the situation calls for. With a pivot function that rotates the screen 90degrees and the freedom to display presentations in portrait mode or advertisements in landscape mode, this makes for one versatile monitor.

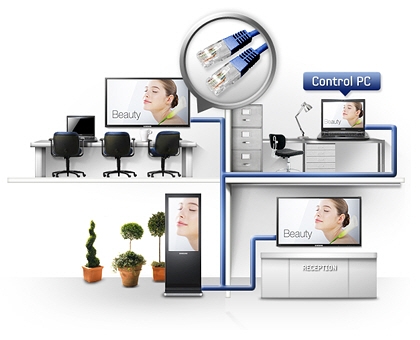

Easy control goes the distance.


With content constantly changing, you need a reliable software solution that lets you communicate with remote displays in a cost-effective, time-efficient manner. Samsung LFDs feature an upgraded Multi Display Control solution that lets you control a large number of monitors through their embedded RS232 and RJ45 interfaces. Easy and intuitive to use, you can control monitors over short and long distances.

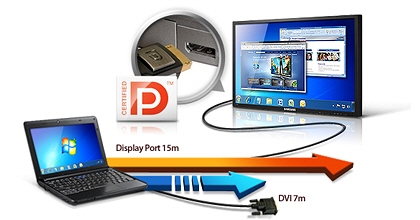

Enhanced connectivity without extra costs.


Create a professional digital display without having to purchase any extraslike a distributor or external equipment. Samsung makes it easy with a display port that delivers enhanced connectivity and an improved display interface. With a simple adapter, you can connect your PC, monitor or TV using an HDMI or DVI cable thats more than twice as long as standard cables. Discover an easy, cost-effective way to create a powerful display.

A slide-in design with easy accessibility.


Enjoy convenient, quick access to the PC, network or receiver with this LFDs optional slide-in modular design. Its discreetly located on in the rear side of the unit. And there are a variety of module options that can be easily combined with the LFD. You can even insert a customized modulewhether its Samsung or a third party manufacturer.


Display

  • 30 - 81 KHz H-Scanning Frequency
  • 148.5 MHz (Max) Pixel Frequency
  • 56 - 85 Hz V-Scanning Frequency

Specification

  • Set Dimension (W x H x D): 1,047.4 x 632.8 x 151.5 mm
  • Package Dimmension (W x H x D): 1,162.0 x 755.0 x 325.0 mm
  • Set Weight: 24 kg Set
  • Package Weight: 30 kg
  • VESA Mount: 400 x 400 mm

Power

  • AC 100 - 240 V ~ (+ / - 10 %), 50 / 60 Hz Power Supply
  • Less than 1 Watt Power Consumption (Off Mode)
  • 420 Watts (Max, TBD) / 354 Watts (Typ, TBD) Power Consumption (On Mode)
  • Less than 1 Watts Power Consumption
  • Internal

Panel

  • 46" Diagonal Size
  • S-PVA (E-DID)
  • 1,920 x 1,080 Resolution
  • 0.53025 (H) x 0.53025 (V) mm Pixel Pitch
  • 1018.08 (H) X 572.67 (V) mm Active Display Area
  • 1500 cd/ Brightness
  • 10,000:1 (TBD) Dynamic Contrast Ratio
  • 178 / 178 Viewing Angle (Horizontal / Vertical)
  • 8 ms Response Time (G-to-G)
  • 16.7 Million Display Color
  • 50 % Color Gamut
  • 4,000:1 Contrast Ratio

Operation Time

  • Operating Temperature: 0 - 40
  • Humidity Operation: 10 - 80 %

Accessory

  • Quick Setup Guide, Warranty Card, Application CD, Power Cord, Remote Controller, Batteries

Connectivity

  • Analog D-SUB, DVI-D, Display Port Connectivity
  • CVBS, HDMI1, HDMI2, Component (D-SUB 15 Pin) Connectivity
  • Stereo Mini Jack Connectivity
  • Stereo Mini Jack Connectivity
  • RJ45, RS232C (In / Out)

General Feature

  • Extremely High Brightness
  • Kit Type, Air Conditioning Guide, Lamp Error Detection, Anti Retention, Temperature Sensor, RS232C / RJ45 MDC, Plug and Play (DDC2B), PIP / PBP, Video Wall (10 x 10), Pivot Display, Button Lock, Smart Scheduling, Smart F/W Update

Certification

  • FCC (USA) FCC Part 15, Subpart B class ACE (Europe) EN55022, EN55024VCCI (Japan) V-3 (CISPR22)KCC (Korea) :KN22, KN24BSMI (Taiwan) : CNS13438 (CISPR22)C-Tick (Australia) : AS/NZS3548 (CISPR22) CCC(China) :GB 9254-2008, GB 17625.1-2003
  • UL (USA) : UL 60950-1CSA (Canada) : CSA C22.2 No. 60950-1 TUV (Germany) : EN60950-1NEMKO (Norway) : EN60950-1 KC (Korea) : K60950-1 CCC (China) : GB 4943-2001PSB (Singapore) : IEC60950-1GOST (Russia) : IEC60950-1, EN55022SIQ (Slovenia) : IEC60950-1, EN55022PCBC (Poland) : IEC60590-1, EN55022NOM (Mexico) : NOM-019-SCFI-1993IRAM (Argentina) :IEC60950-1SASO (Saudi Arabia) : IEC60950-1
