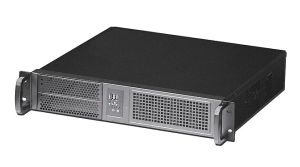

2U 19" Rackmount MicroATX Chassis

The era of MicroATX constructed Dual-core and Quad-Core CPU platform has been the mainstream nowadays, the major feature of this brand new design is the depth of this chassis has 380mm only, it supports the most cost effective and stable quality, combines with two intake 80mm fans at front side, comes with totally 4 drive bay with the chassis configuration, fits all standard MicroATX 9.6""x9.6" motherboard form factor and standard PS2 power supply, meets regular server system application

Product Details

Product Code: GG-C238B

Product Name: 2U 19" Rackmount MicroATX Chassis

Base Weight(KG): 5

Length(CM): 38.0

Width(CM): 48.3

Height(CM): 8.85

Identity

Carton Length(CM): 56

Carton Width(CM): 51

Carton Height(CM): 17

Specifications:

Standard: EIA RS-310C 19" Rackmount Standard

Construction: Heavy Duty Cold Rolled Electroplated Steel

Colour: Black

Drive Bays: Total drive bay: 2 x 5.25" CD and 2 x 3.5" HDD bay

Power Supply: PS2 8cm or 12cm~14cm fan version psu (max. psu depth at 140mm~180mm)

Cooling Units: 2x8cm Fan (41 CFM ea.)

Expansion Slot: 4 slot low profile cards (max. depth at 170mm)

Connector Port (front): 2x USB Ports

Indicators: LEDs for Power ON/OFF, HDD Activity

Buttons: Power ON/OFF Momentary (Pushbutton), System Reset

Hold Down bar: No

Thermal Card: No

Front Door: No

Air Filter: Inside Front Door (Washable)

Dimension (L x W x H) (mm): 380 x 483 x 88.5

Humidity: 5% - 95% Non-condensing

Product Applications:

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 year return to base

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
