All stock codes associated to this product
V11H513953, PRJEBG6550WUNL, PRJ-EBG6550WUNL
Epson EB-G6550WUNL
Installation Multimedia Projectors
Formidable WUXGA resolution, with flawless image quality and professional-grade reliability for large venues.
Overview
Get uncompromising image quality and professional-grade reliability with the Epson G Series large-venue projectors. Whether youre presenting in a conference room, auditorium, stage or house of worship, these powerful projectors will keep your audience captivated.
KEY FEATURES & BENEFITS
- 3 x Brighter Colours* and reliable performance 3LCD, 3-Chip Technology. Look for both high colour brightness and high white brightness.
- Edge Blending Combine multiple individual images to create one seamless giant image.
- 2 x Digital connections Digital quality and flexibility.
- 360 Installation Install on any plane, from horizontal to vertical and everything in between.
- Arc and Point Correction Fine tune image geometry to perfection.
- Passive 3D For stacked 3D applications using polarised passive glasses.
- Six optional Lenses with Lens Shift Standard, Short, Wide, Rear, Middle or Long throw for complete flexibility and easy exchange.
3x Brighter Colours with Epson
Brilliant image quality requires high colour brightness (colour light output), and Epson 3LCD projectors have 3x Brighter Colours than leading competitive projectors*.
One brightness measurement (lumens) is not enough. A projectors specification needs to show both high colour brightness and high white brightness. If colour brightness is lower than white brightness, images may be dark, dull and lose detail. If not be sure to ask for a projectors colour brightness specification.
Compared to leading 1-chip DLP business and education projectors based on NPD data, July 2011 through June 2012. Colour brightness (colour light output) measured in accordance with IDMS 15.4. Colour brightness will vary depending on usage conditions.
Faroudja DCDi Cinema for advanced video quality
The Faroudja DCDi Cinema chipset is a video enhancement technology that produces exceptional image quality without introducing artefacts. Faroudja DCDi (Directional Correlational Deinterlacing) was developed to eliminate jagging, using a unique algorithm. This technology, in combination with decoding, Deinterlacing and enhancement technologies, won an Emmy Award from the National Academy of Television Arts and Sciences.
C2Fine Technology for blacker blacks
C2Fine technology offers smooth, uniform images with exceptional contrast for better image quality. Based on this new phase-compensation technology, light leakage is eliminated, allowing for the reproduction of blacker blacks. C2Fine technology is combined with an auto iris, which allows for a contrast ratio up to 5,000:1.
Diverse connectivity
Connect with virtually any system including HDMI, DisplayPort, VGA, BNC and LAN connectivity.

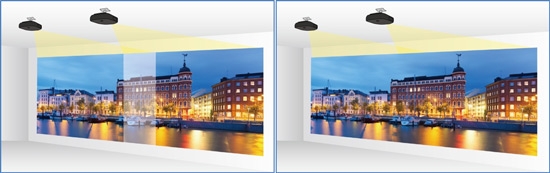

Integrated edge-blending technology
Enhance the experience with seamless panoramic, multi-screen images that blend edges by matching colour and brightness perfectly, even in areas that overlap.

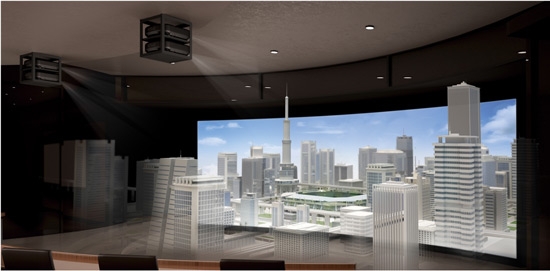

Stacked 3D solutions
You can create an impressive viewing experience with twice the brightness. Epsons stacked 3-D solution (requires two projectors). Using polarised filters, in combination with low-cost 3-D glasses.
Split Screen
Split Screen allows you to display content from two inputs simultaneously, side by side, on a single screen. With three layout options you can display video and presentation materials, and run video on both screens.
DICOM Simulation Mode
DICOM (Digital Imaging and Communication in Medicine) is a standard for handling, storing, printing and transmitting medical imaging information. DICOM Simulation Mode2 is ideal for viewing grayscale medical images, such as X-rays, for training and educational purposes. It enables users to reproduce images with an advanced grayscale level that simulates DICOM Part 14.
360-degree installation
The Epson G Series can be rotated 360 degrees in any direction for off-axis positioning flexibility.
As a result, it can be used for a wide range of applications, such as projecting on the ceiling or floor, or as part of a rear-projection system. Epson technology keeps the projector running without compromising performance or causing overheating.
Short-throw lens
Install the projector as close as a 0.7 throw ratio to the screen and still get the same clear, crisp projection. A 1.2x zoom and up to 69% vertical and up to 31% horizontal lens shift gives even more flexibility when you need it.
Six optional lenses
For added flexibility, the G Series offers a total of six lenses, including one standard, one wide, one rear, two middle and one long-throw that allow users to choose the lens most suited for their environment. A quick-release lever allows for a fast, easy lens exchange. One standard lens included, other lenses are not included with the projector. (Lens not included with ‘NL’ models).
Easy Management®
The EasyMP® Monitor tool makes it easy to monitor and control all networked Epson projectors, set up email notifications, verify and change internal settings, and more. You can also remotely power down your projector(s) to extend the lamp life and save energy.
Multi-PC projection
Epson Multi-PC Collaboration utility allows you to display four individual PC screens simultaneously over the network (wired or wireless), with another 28 users connected to the same projector on standby mode. This feature is a great tool for meetings or classroom projects where multiple users want to present and compare their content.
Schedule function
Save energy using the convenient Schedule function. And, easily control the projector at non-networked venues. The embedded clock inside the projector enables it to do scheduled tasks without having the network standby mode on.
Protect your investment — long-life electrostatic air filter
The Epson G series electrostatic filter is designed to protect the optical engine, lamp and electronics from small dust particles that can enter any projector. It has a recommended 10,000- hour filter cleaning schedule3 and can capture particles as small as three microns, due in part to its pleated, expanded design.
Easy maintenance
Offering convenient access to the lamps and filter, the G series makes maintenance easier than ever, even if the projector is ceiling mounted. The lamp cover is located on the rear side panel and there are no screws, so the lid can be removed without any special tools.

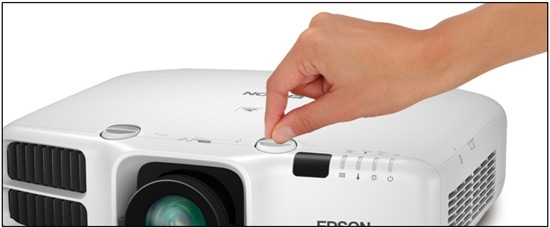

Lens shift
Epson lens shift technology enables outstanding installation flexibility with an incredible range of up to ±67° on the vertical axis and up to ±30° on the horizontal axis (may vary by model). Users can operate the lens shift functions using the adjustment knobs on the top of the projector.
Centered lens design
Featuring a centered lens design, the G series makes installation easy to plan. Positioning the ceiling mount, screen and projector can be performed individually and independent of one another.
Arc correction
Using arc correction, you can adjust each side of a projected image in an arc or barrel-shaped way, making it easier than ever to get a perfectly rectangular image.
Convenient test patterns
Make sure your presentation is setup correctly before you begin. The G Series features nine test patterns including linearity, colour reproduction, bleeding and tone production. It even detects distortion.

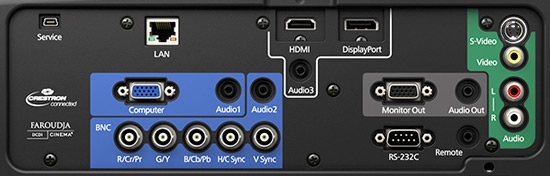

Connectivity Panel
Specifications:
| PRODUCT NAME |
Epson EB-G6550WUNL |
| PRODUCT CODE |
V11H513953 |
| WHAT'S IN THE BOX |
|
| |
EB-G6550WUNL Projector, 3m Power Cable, 1.8m Computer Cable, Remote Control, 2 x AA Batteries, Lens Lock Screw, HDMI Cable Clamp, Cable Cover, Manual, Projection Software CDROM. (STD Lens not Included) |
| TECHNOLOGY |
|
| Projection System |
RGB liquid crystal shutter projection system |
| LCD Panel |
0.76-inch wide panel with MLA (D8, C2 Fine) |
| OPTICAL |
|
| Zoom |
1 - 1.8 (Optical) |
| Screen Size |
50" to 300" [1.35m to 8.36m] (Zoom: Wide)
50" to 300" [2.47m to 15.01m] (Zoom: Tele) |
| Projection Distance |
100" screen 2.75m - 4.98m |
| Throw Ratio |
1.26 (Zoom:Wide), 2.30 (Zoom:Tele) |
| Projection Lens F Number |
1.65-2.55 |
| Projection Lens Focal Length |
21.28mm - 37.94mm |
| Focus Method |
Manual |
| IMAGE |
|
| Colour Light Output |
5,200 Lumens |
| White Light Output |
5,200 Lumens |
| Resolution |
WUXGA |
| Native Aspect Ratio |
16:10 |
| Contrast Ratio |
5,000:1 |
| Lamp Hours |
2,500 hours (Power Consumption: Normal (5))
4,000 hours (Power Consumption: ECO) |
| Lamp Type |
380 W UHE |
| Keystone Correction |
Vertical: -30 to +30 degrees
Horizontal: -30 to +30 degrees |
| Lens Shift |
Vertical: -67% to +67%
Horizontal: -30% to +30% |
| Tilt Angle |
-1.50 to 10 degrees |
| CONNECTIVITY |
|
| Input: Video |
1 x RCA (Yellow), 1 x S-Video, 1 x 5BNC |
| Input: Computer |
1x D-sub 15-Pin (RGB) |
| Input: Digital |
1 x HDMI, 1 x DisplayPort |
| Input: Audio |
3 x Stereo mini-jack, 1 x RCA (Red/White), 1 x HDMI, 1 x DisplayPort |
| Input: Control |
1 x RS232c, 1 x Stereo mini-jack (Remote) |
| Input: Network I/O |
1 x RJ45, 1 x USB Type A (for optional Wireless LAN unit) |
| Wireless Connectivity |
Optional |
| Output: Video |
1 x Monitor Out (via D-sub 15-pin) |
| Output: Audio |
1 x Stereo mini-jack |
| Speaker Output |
10W |
| ADVANCED FEATURES |
|
| EasyMP Network & Control |
Yes |
| EasyMP Network Projection |
Yes |
| Split Screen |
Yes |
| Edge Blending |
Yes |
| Arc Correction |
Yes |
| Frame Interpolation |
Yes |
| 360 Degress Projection |
Yes |
| Instant Off |
Yes |
| Direct Power On/Off |
Yes |
| Security |
Kensington style lock provision
Padlock & Security cable hole
Password protect function
Wireless LAN Lock
Lens Lock |
| Colour Modes |
Photo, Presentation, Theatre Dynamic, sRGB, Multi-Projection, DICOM SIM, 3D Presentation, 3D Theatre, 3D Dynamic, 3D Multi-Projection |
| GENERAL |
|
| Dimensions D x W x H |
405.5 x 505 x 171 mm |
| Weight |
9.7kg (Including Standard Lens. Excluding Cable Cover |
| Lamp Warranty |
1 Year or 750 Hours* |
| Projector Warranty |
3 Years |
| Power Consumption: Lamp on |
504 W |
| Power Consumption: Standby |
0.41 W |
| Noise Level |
Normal/Eco: 37/31 dB |
| |
| * Whichever comes first. For more information visit Epson Projector Warranty |
| PRODUCT OPTIONS |
Item Code |
Description |
| |
V12H004S06 |
Standard Zoom Lens |
| |
V12H004R03 |
Rear Projection Wide Lens |
| |
V12H004U01 |
Short Throw Lens |
| |
V12H004M04 |
Middle Throw Zoom Lens 1 |
| |
V12H004M05 |
Middle Throw Zoom Lens 2 |
| |
V12H004L06 |
Long Throw Zoom Lens |
| |
V13H010L76 |
Replacement Lamp |
| |
V13H134A43 |
Replacement Filter |
| |
V12H547053 |
HDBaseT Transmitter |
| |
V12H418P13 |
Wireless LAN adaptor |
| |
V12H005M09 |
Quick Wireless USB Key |
| |
V12H003B22 |
Ceiling Mount |
| |
V12H003P13 |
Extension Pole 668-918mm |
| |
V12H003P14 |
Extension Pole 918-1,168mm |
| |
V12H526040 |
Flush Ceiling mount |
