- Intel Pentium G850 Dual Core CPU (2.9GHz)
- 4GB DDR3 ECC RAM
- Enterprise level performance for multi-client environments
- RAID 0 to 50 and JBOD supported
- Free Acronis True Image
- Free McAfee Antivirus
- Over 90 official and third-party applications
Features

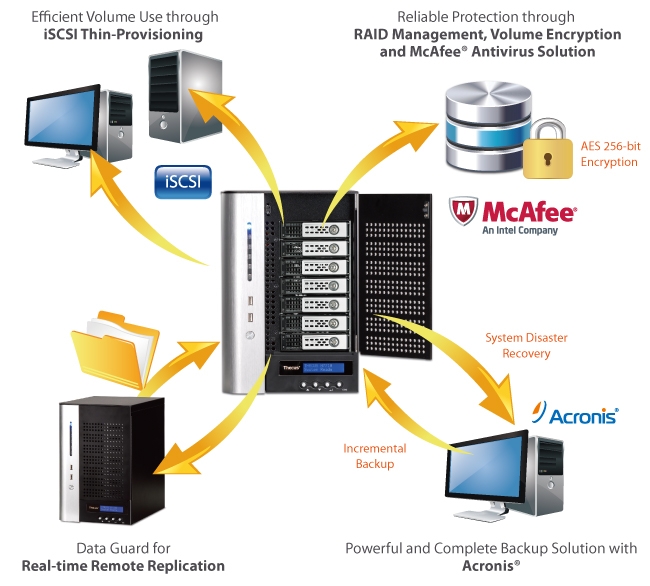

AES 256-bit RAID Volume Encryption
Thecus’s AES 256-bit RAID volume encryption tool allows users to fully encrypt their entire RAID volume, defending essential data even in instances of theft.
Data Guard
Data Guard backup solution is the ultimate software as it provides both local and remote parts. Currently, data is backed up across RAID volumes, external USB drives, and eSATA. In addition, Data Guard uses innovative technology to sync data across the network to other NAS and servers. More importantly, Thecus® Data Guard is the total backup solution which makes managing NAS user-friendly and convenient.
Data Burn
NAS data can now be burned directly to CD, DVD, and Blu-ray discs with Data Burn, this hassle-free module makes burning data to a disk effortless. In addition, burning ISO image file is also supported. Whether you’re managing audio, media or essential files; Data Burn copies information fast while significantly reducing waiting time. The process of burning file to disk is now easy and smooth with Data Burn module.
Link Aggregation
Link aggregation can sustain multiple network connections and provide redundancy in case one of the links fails. Thecus NAS supports 7 modes which provide Load Balance, Failover, 802.3ad, Balance-XOR, Balance-TLB, and Balance-ALB, Broadcast.
Antivirus
Thecus’ innovative hardware helps prevent failures. But sometimes you have to protect the NAS against itself. Adding an antivirus to the already comprehensive software bundle will provide the necessary software protection by scanning the files on your NAS and defending it against possible threats. McAfee is the world’s largest dedicated security technology company and shares Thecus’ spirit of dedication and quality. By establishing a strong partnership with them, Thecus will allow users the benefit of McAfee’s powerful software on their NAS entirely for free.
Cloud Backup
The private and public clouds meet with Thecus’ new DropBox, Amazon S3 and ElephantDrive cloud backup functionality! Guard your data with RAID at home and an additional level of protection in the Cloud. Just drag and drop files into the folder on your NAS and access them on any computer or mobile device with DropBox, Amazon S3 or ElephantDrive.
HDMI Output
Make your NAS into the ultimate multimedia hub! The N7710’s HDMI output allows you to connect your NAS directly to your TV for device management.
USB 3.0 Connectivity
The next generation of connectivity is here with speeds 10x faster than USB 2.0. Whether connecting digital cameras and smart phones, backing up large external hard drives, or extending the capacity of your NAS, USB 3.0 will make sure it's done in no time at up to 5 Gbit/s. Backwards compatibility adds the connectivity of a world full of USB 2.0 and USB 1.1 devices to get the best combination of speed and universal access.
Acronis True Image
Thecus brings the best to the table with Acronis’s advanced backup software. Back up all your data with One-click Protection or pick and choose only your most important files. Acronis sports a slick interface, user-friendly design, and comprehensive features to keep your data safe.
Multiple RAID
When it comes to data management, Thecus NAS truly let you have it your way. Create multiple RAID volumes each supporting different RAID modes including RAID 0, 1, 5, 6, 10, 50 and JBOD for your own balance of performance and data protection. Should a hard drive malfunction occur, changing one is simple thanks to online RAID migration and expansion, hot spare, and auto rebuild.
Multiple File Systems
Support for multiple file systems including EXT3, EXT4, and XFS, gives Thecus NAS flexibility to handle many different types of environments. Users can simultaneously use different file systems across multiple RAID volumes to get the best of each one.
iSCSI Thin-Provisioning
Get the most out of your storage space with the extreme speed of iSCSI and the efficiency of iSCSI thin provisioning. Connect through iSCSI for the fastest data transfer speeds available and make wasted disk space a thing of the past with thin provisioning's flexible storage functionality.
iOS/Android Connectivity
In the modern world, nothing is as important as reaching your data from anywhere. With T-OnTheGo and the T-Dashboard, you can manage your NAS, and upload to and download/stream from your NAS using an iOS or Android device on the go.
Rsync
Backing up your data is very necessary, and everyone has specific needs when it comes to storage. Thecus’s Rsync functionality gives users great flexibility with remote backup capability, a flexible scheduler, and the stability of Linux-based transfer.
User Quota
Divide the massive storage of a Thecus NAS among multiple users. Whether there are two users or 100, User Quota make it easy to divvy up and manage disk space.
Specifications
Specs
1.Hardware Platform
| Item |
Spec |
| Processor |
Intel Pentium G850 (2.9GHz Dual Core) |
| System Memory |
4GB DDR3 ECC Memory |
| LAN Interface (PCI-e) |
RJ-45x2: Intel 82574L 10/100/1000 BASE-TX Auto MDI/MDI-X
WOL supported |
| USB Interface |
USB 2.0 host port x6 (front x2, back x4)
USB 3.0 host port x2 (back x2) |
| LCM Module |
Displays system status and information |
| HDMI Output |
HDMI port (back x1) |
| VGA Output |
VGA port (back x1) |
| Disk Interface |
7 x SATA for internal |
| Power Supply |
300W Power Supply |
| PCI-e x8 Slot |
1 |
| Thermal/Fan Control |
Thermal sensor on processor temperature |
| System Clock |
Battery-backed up system clock |
| Power Management |
Auto power on after shutdown due to power loss |
| Buzzer |
Adjustable frequency alarm |
| Buttons |
Power button
LCM button (ENT, ESC, UP, DOWN) |
| Environment |
Temperature: 5C to 40C
Humidity: 0 ~ 80 % R.H. (Non-condensing) |
| Chassis |
Tower base |
| Dimensions (HxWxD) |
320 x 210 x 270 (mm)/12.59 x 8.27 x 10.63 (in) |
| Weight |
10.42 kgs/22.97 lb |
| Certificates |
CE/FCC/C-Tick/VCCI/BSMI
RoHS
WEEE
VMware |
2. Software Functions
| RAID |
| RAID Modes |
RAID 0, 1, 5, 6, 10, 50 and JBOD |
| Auto-rebuild |
Supported |
| Hot-swap |
Supported |
| Hot Spare |
Supported |
| RAID Level Migration |
Supported |
| RAID Expansion |
Supported |
| RAID Volume Encryption |
AES256bit |
| Disk |
| Power Management |
Available spin-down while idle setting |
| Bad Block Scanning |
Supported |
| SMART Info |
Supported |
| SMART Test |
Supported |
| Disk Roaming |
Supports volume-based roaming to other Thecus NAS (Require ThecusOS 5 64 bit ) |
| Network |
| Configuration |
Fixed IP address, dynamic IP address |
| Transport Protocols |
TCP/IP/AppleTalk |
| File Protocols |
SMB/CIFS, HTTP/HTTPS, FTP, NFS v4, AFP |
| Link Aggregation |
Load balance, Failover, 802.3ad, Balance-XOR, Balance-TLB, Balance-ALB, Broadcast |
| TCP/IP |
IPV6 & IPV4 |
| DDNS |
Supported |
| SSH |
Supported |
| UPnP |
Supported |
| UPnP Port forwarding |
Supported |
| System status |
| System Monitor |
Monitoring CPU, memory, network utilization and protocols access user count |
| Syslog Management |
Send syslog to assigned location
Act as syslog server to receive log info from other systems |
| Data Access |
| Client OS Support |
Windows XP and after
Windows Server 2003 and after
UNIX/Linux
Mac OS X |
| FTP |
Built-in FTP server with bandwidth control |
| Secure FTP |
Built-in secure FTP server with bandwidth control |
| TFTP |
Users can download and upload files with TFTP programs |
| Download Manager |
BitTorrent downloads (via Transmission Module)
NZB download (via NZB module) |
| Printer Server (IPP) |
Supports USB printers
Supports a wide range of IPP printers
Client can manage print tasks (list/delete) via web user interface |
| Data Backup |
| Client Incremental Data Backup |
Acronis True image (OEM version) |
| Client System Disaster Recovery |
Acronis True image (OEM version) |
| Client Side Backup Software |
Thecus Backup Utility (Windows/Mac OS X) |
| Data Burn |
Create files to ISO image and burn to optical disc
Create files to ISO image
Read ISO image from optical disc and write to NAS |
| Mac OS X Time Machine |
Supported |
| Data Guard |
Remote Backup/Local Backup |
| Block Level Access |
| iSCSI Target/Initiator |
Supports Microsoft/Mac OS X/Linux initiators and Thecus NAS targets |
| iSCSI Thin Provisioning |
Supported |
| MPIO |
Supported |
| MCS |
Supported |
| Clustering |
Supported |
| SCSI3 Persistent Group Reservation |
Supported |
| Power Management |
| Scheduled Power On/Off |
Supported |
| Volume Management |
| Multiple RAID |
Supported |
| Multiple File System Selectable |
EXT3/EXT4/XFS |
| Multimedia Support |
| iTunes Server |
Supports AAC, MP3 w/ID3 tag and WAV |
| Piczza! Photo Server (via module) |
Supports GIF, JPG (JPEG), BMP, PNG
Support EXIF display
Support slide show |
| Media Server |
Support uPnP AV streaming protocol (via Module) |
| User Authentication |
| Local User |
Supports built-in user accounts |
| Local Group |
Supports built-in user groups |
| Windows ADS |
Supported |
| LDAP |
Supported |
| Access Guard |
Supports Black & White list/IP Filter |
| Cloud Backup |
| DropBox |
Supported (via module) |
| ElephantDriver |
Supported (via module) |
| Amazon S3 |
Supported |
| File System |
| Type |
Journaling File System |
| Language Support |
Unicode Support |
| Authorization (ACL) |
Read, write, or deny privileges to individual users or groups in folders and sub-folders |
| User Quota |
Supported |
| Administration |
| User Interface |
Web-based user interface supports English, Traditional Chinese, Simplified Chinese, Japanese, Korean, French, German, Italian, Spanish, Russian, Polish and Portuguese |
| Utility Program |
MS Windows Setup Wizard
Supports Windows XP and after
Mac OS X Setup Wizard |
| Email Notifications |
Sends system messages via email to the system administrator |
| SNMP Trap |
System information trap out |
| Mobile Applications (iOS/Android) |
| T-Dashboard |
Mobile monitoring and administration (via module) |
| T-OnTheGo |
Upload, download and stream multimedia |
| Data Security |
| Virus Scan |
Supports McAfee (via module) |
| Capacity Expansion |
| Stackable |
Can extend for 5 additional iSCSI volumes from other Thecus NAS |
| Others |
| Recycle Bin |
Supported |
| Web Disk |
Supported(via module) |
| Web Server |
Supported(via module) |
| ISO Mount |
Supported |
| IP Cam Surveillance |
Supports up to 10 IP cameras (via module) |
| Auto Module Installation |
Thecuss module server automatically provides the latest modules and updates through the user interface. |
| Local Display |
X-Window via HDMI output |
