Sapphire eSATA Optical Drive Enclosure
SESCS
Overview
This new Addonics Sapphire eSATA drive enclosure is a compact size drive enclosure designed to support full height SATA optical drive or 5.25" storage device such as the Mobile Rack. Made with a rugged brushed anodized aluminum body, the Sapphire eSATA drive enclosure is built for durability and to provide effective heat dissipation in various operation environment. Come with choice of high-speed USB 3.0 or eSATA interface, this Sapphire enclosure is great for building your own custom external optical drive or drive cartridge system for hard drive or SSD.
Since storage device connected to eSATA port appears as an internal drive to the OS, the eSATA interface with an optical drive or hard drive can be used to boot up a computer, a great solution for system rescue operation or computer sharing or applications that need an external boot drive.

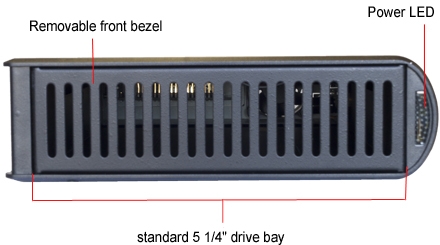

Front view

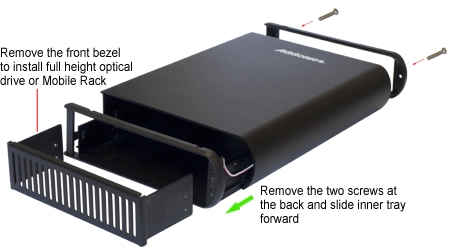

Illustration on disassembling the enclosure to slide out the inner tray for drive installation

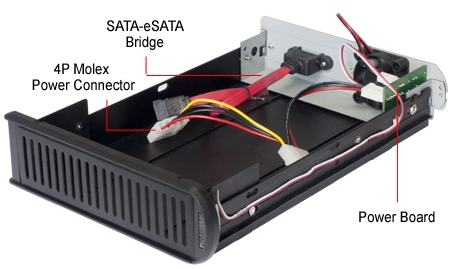

inner tray for Model: SESCS or SESU3CS

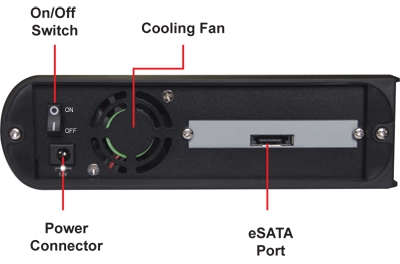

Rear View
Features
- Connect SATA optical drive or Mobile Rack to computer via USB 3.0 or eSATA port
- Supported following SATA devices:
- full height 5.25" SATA Blu-Ray, DVD-RRW drive
- Addonics Snap-in Mobile Rack, Mobile Rack II or Mobile Rack III
- Addonics Ruby Drive Cartridge System
- Any 5.25" SATA mobile rack not exceeding 7.5 in. in length
- Maximum transfer rate: 6 Gbps - eSATA
- Support IDE and ATAPI devices when install with the optional IDE-SATA converter (part # ADIDESA)
- Simple installation
- Sturdy light weight brushed anodized aluminum construction
- Compact size for convenient transportation
- Rear mount 40 x 40 mm cooling fan
- Plug and play
- Can be used as an external bootable device using eSATA connection
- OS Compatibility:
- eSATA - DOS, Windows NT4(SP6), Windows 7, 8, Vista, 2003, XP, 2000, Me, Mac OS X, Linux Kernel 2.4 and above
Specifications
|
Support drive type
|
- full height 5.25" SATA Blu-Ray, DVD-RRW drive
- ATATPI optical drive by adding optional Addonics IDE-SATA adapter (ADIDESA)
- Addonics Snap-In Mobile Rack, Mobile Rack II or Mobile Rack III
|
|
Interface Type:
|
eSATA
|
|
Construction material:
|
Brushed anodized black aluminum body
|
|
LED
|
Power (blue)
|
|
Supported OS
|
- eSATA - DOS, Windows NT4(SP6), Windows 7, Vista, 2003, XP, 2000, Me, Mac OS X, Linux Kernel 2.4 and above
|
|
Power Supply:
|
100 / 240V AC/DC 12V 36 watts Power Adapter (model: AAP12V3A)
|
|
Cooling system:
|
Rear mount 40x40 mm cooling fan
|
|
Dimensions (L x W x H):
|
~ 9.88 x 6.88 x 2.00 in ( 251 x 175 x 50.8 mm)
|
|
Weight:
|
~ 1.8 lbs. (814 g)
|
|
Storage Temperature:
|
Range: -30 C to +60 C
|
|
Operating Temperature and humidity:
|
+5 C to +40 C, 5% to 95% RH
|
|
Storage Temperature
and Humidity:
|
30 C to +60 C, 5% to 90% RH
|
|
Warranty:
|
One Year
|
