All stock codes associated to this product
CZ248A, 887111994578

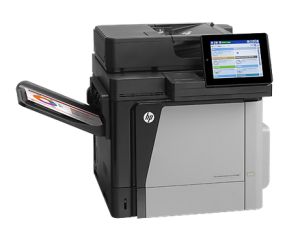

HP Color LaserJet Enterprise Multifunction M680dn Printer (CZ248A)
Overview
Tackle high-volume jobs with a high-performance color MFP. Print and copy on letter and A4. Enhanced scanning features and an 8-inch color touchscreen smooth workflows. Mobile printing options help you stay productive on the go.2
High-performance color printing and copyingletter and A4plus enhanced scanning. This MFP also offers a broad range of mobile printing options.2
Features
Make workflow fly
- Get more done, faster. Scan two-sided documents in a single pass. No missed pages, no flipping pages by hand.
- Preview and edit scans, adjust images, and launch standard processesall at the 8-inch color touchscreen.
- Reload less oftentackle high-volume print jobs with a paper capacity of up to 3100 sheets.3
- Scan and send digital files directly to email, network folders, or the cloud.2
Mobilize business printing
- Print without wiresor a network. Get easy access to the MFP through optional wireless direct printing.4
- Mobile printing at a touchenable touch-to-print convenience from mobile devices.5
- Easily print from smartphones, tablets, and notebooks at work, home, or on the go; Mopria-certified.1
- Pull print jobs from your pocketwalk up and print or scan from your USB drive.
Ready, set, grow
- Depend on an MFP that can expand with your business, whenever solutions advance.
- Take the guesswork out of fleet managementcentrally monitor and control your MFPs with HP Web Jetadmin.6
- Be confident that sensitive business data is protected with advanced security and an encrypted hard disk.
Loaded for productivity
- Reload less oftentackle high-volume printing with a paper capacity of up to 3100 sheets.3
- Reduce employee time at the MFP, using the automatic document feeder.
- Get exceptional value from Original HP high-capacity ink cartridges.
- Save time with automatic job sorting and finishing, using the optional 3-bin stapling mailbox.
Specifications
Functions
-
- Print, Copy, Scan, Digital Send, Scan-to-Easy Access USB
Multitasking supported
Yes
Printing specifications
Print speed black:
Normal: Up to 45 ppm
(Measured using ISO/IEC 24734, excludes first set of test documents. For more information see https://www.hp.com/go/printerclaims. Exact speed varies depending on the system configuration, software application, driver, and document complexity.)
Print speed color:
Normal:Up to 45 ppm
(Measured using ISO/IEC 24734, excludes first set of test documents. For more information see https://www.hp.com/go/printerclaims. Exact speed varies depending on the system configuration, software application, driver, and document complexity.)
First page out (ready)
Black: As fast as 10.5 sec
Color: As fast as 10.5 sec
(Exact speed varies depending on the system configuration, software application, driver and document complexity.)
Duty cycle (monthly, A4)
Up to 120,000 pages (printer)
(Duty cycle is defined as the maximum number of pages per month of imaged output. This value provides a comparison of product robustness in relation to other HP LaserJet or HP Color LaserJet devices, and enables appropriate deployment of printers and MFPs to satisfy the demands of connected individuals or groups.)
Recommended monthly page volume
3000 to 17,000
(HP recommends that the number of printed pages per month be within the stated range for optimum device performance, based on factors including supplies replacement intervals and device life over an extended warranty period.)
Print technology
Laser
Print quality black (best)
Up to 1200 x 1200 dpi
Print quality color (best)
Up to 1200 x 1200 dpi
Print languages
-
- HP PCL 6
- HP PCL 5
- HP postscript level 3 emulation
- PDF
- PDF and AirPrint (URF and PDF)
Display
-
- 8" (20.3 cm) capacitive-touchscreen, SVGA (800 x 600 resolution), gesture support
Processor speed
800 Mhz
Automatic paper sensor
Yes
Connectivity
HP ePrint capability
Yes
Mobile printing capability
HP ePrint, Apple AirPrint, Mobile Apps, optional Touch to Print, optional Wireless Direct printing
(May require a firmware upgrade to be compatible, download at https://www.hp.com/go/support)
Wireless capability
-
- Optional, enabled with purchase of HP Jetdirect 2700w USB Wireless Print Server J8026A or HP Jetdirect ew2500 802.11b/g Wireless Print Server J8021A
Connectivity, standard
-
- 1 Hi-Speed device USB 2.0
- 2 Host USB 2.0 (for third party connections)
- 1 Jetlink
- 1 Accessory (for Kensington Lock)
- 1 Gigabit Ethernet 10/100/1000
- 1 FIH
Network ready
Standard (built-in Gigabit Ethernet); Included Touch to Print and Wireless Direct
Connectivity, optional
-
- HP Jetdirect 2700w USB Wireless Print Server J8026A
- HP Jetdirect 2800w NFC & Wireless Direct J8029A
- HP Jetdirect ew2500 802.11b/g Wireless Print Server J8021A
Minimum system requirements
- Windows 8, Windows 7 (SP1 or higher), Windows Vista, Windows XP (SP2 or higher), Windows Server 2003 (SP1 or higher), Windows Server 2008
- Windows Server 2008 R2 (64 bit)
- Windows Server 2012 (64-bit)
- 200 MB available hard disk space
- CD-ROM or DVD drive, or Internet connection
- Dedicated universal serial bus (USB 1.1 or 2.0), or network connection
- Operating system compatible hardware system requirements see https://www.microsoft.com
- OS X 10.6 Snow Leopard
- OS X 10.7 Lion
- OS X 10.8 Mountain Lion
- OS X 10.9 Mavericks
- CD-ROM or DVD drive, or Internet connection
- Dedicated universal serial bus (USB 1.1 or 2.0), or network connection
- 1 GB of available hard-disk space
Compatible operating systems
Windows XP SP3 or greater (32-bit and 64-bit), Windows Vista (32-bit and 64-bit), Windows 7 (32-bit and 64-bit), Windows 8 (32-bit and 64-bit), Windows Server 2003 SP2 or greater (32-bit and 64-bit), Windows Server 2008 (32-bit and 64-bit), Windows Server 2008 R2 (64-bit), Windows Server 2012 (64-bit), OS X 10.6 Snow Leopard, OS X 10.7 Lion, OS X 10.8 Mountain Lion, OS X 10.9 Mavericks For the latest operating system support see: Air Print https://www.support.apple.com/kb/ht4356, Android Citrix and Windows Terminal Services (https://www.hp.com/go/upd), HP ePrint Software Driver https://www.hp.com/go/eprintsoftware, Linux (https://www.hplip.net), Novell (https://www.novell.com/iprint), SAP device types https://www.hp.com/go/sap/drivers, SAP Print https://www.hp.com/go/sap/print), UNIX Https://www.hp.com/go/unix, UNIX JetDirect https://www.hp.com/go/jetdirectunix_software, Unix Model Scripts https://www.hp.com/go/unixmodelscripts
(Windows Installer has the same Operating System support as the printer driver except the following: Windows XP (SP3+) (32-bit only); Windows Server 2003 (SP2+) (32-bit only); Windows Vista Starter not supported in Driver nor Installer; For Windows Server 2003 (32-bit) and 2008 (32-bit & 64-bit), only the printer driver are installed)
Memory specifications
Memory, standard
2 GB (system memory)
Memory, maximum
2 GB (system memory)
Hard disk
-
-
- Standard, minimum 320 GB HP High-Performance Secure Hard Disk (AES 256 hardware encryption or greater)
Paper handling
Paper handling input, standard
100-sheet multipurpose tray, 500-sheet input tray 2 , 100-sheet automatic document feeder (ADF), automatic two-sided printing
Paper handling output, standard
500-sheet output bin
Maximum output capacity (sheets)
Up to 900 sheets
Duplex printing
-
Finished output handling
-
Media sizes supported
-
- Tray 1: Letter, legal, 8.5 x 13 in, statement, executive, envelopes [No. 9, No. 10, Monarch (7 3/4)], 4 x 6 in
- Tray 2, 3, 4: Letter, legal, 8.5 x 13 in, executive, Tray 5: Letter, legal
Media sizes, custom
Tray 1: 4.0 x 6.0 to 8.5 x 14 in; Tray 2: 5.8 x 8.3 to 8.5 x 14 in
Media sizes, custom
Tray 1: 101.6 x 152.4 to 216 x 356 mm; Tray 2: 148 x 210 to 216 x 356 mm
Media types
Paper (plain, light, bond, recycled, mid-weight, heavy, mid-weight glossy, heavy glossy, extra heavy, extra heavy glossy, cardstock, card glossy), color transparency, labels, letterhead, envelope, preprinted, prepunched, colored, rough, opaque film, user-defined
Media weight, supported
Tray 1: 16 to 58 lb bond (plain), 28 to 58 lb bond (glossy), 16 to 24 lb (envelopes); Trays 2, 3, 4, 5: 16 to 32 lb bond (plain), 28 to 58 lb bond (glossy)
Media weights, recommended
16 to 32 lb (bond)
Scanner specifications
Scanner type
Flatbed, ADF
Scan file format
PDF, JPEG, TIFF, MTIFF, XPS, PDF/A
Scan resolution, optical
Up to 600 dpi
Scan size (flatbed), maximum
216 x 356 mm
Scan size (ADF), maximum
216 x 356 mm
Scan size (ADF), minimum
68 x 148 mm
Scan speed (normal, A4)
Up to 60 ppm (b&w), up to 45 ppm (color)
(Scan speeds measured from ADF. Actual processing speeds may vary depending on scan resolution, network conditions, computer performance, and application software.)
Recommended monthly page volume
3000 to 17,000
(HP recommends that the number of printed pages per month be within the stated range for optimum device performance, based on factors including supplies replacement intervals and device life over an extended warranty period.)
Duplex ADF scanning
Yes, single pass duplexing ADF
Automatic document feeder capacity
Standard, 100 sheets
Digital sending standard features
-
- Scan to e-mail; Save-to-Network Folder; Save-to-USB drive; Send to FTP; Send to LAN Fax; Send to Internet Fax; Local Address Book; SMTP over SSL
File formats, supported
-
- Digital Send: PDF, JPEG, TIFF, MTIFF, XPS, PDF/A,Scan to easy access USB: PDF, JPEG, TIFF, MTIFF, XPS, PDF/A, Print from easy access USB: PDF, PS, Print Ready files (.prn, .pcl, .cht)
Scan input modes
-
- Front panel applications: Copy, E-mail, Save to Network Folder, Save to USB, Save to Device Memory, Open Extensibility Platform (OXP) applications
Copier specifications
Copy speed (normal)
Black: Up to 45 cpm
Color: Up to 45 cpm
(First Copy Out and Copy Speed measured using ISO/IEC 29183, excludes first set of test documents. For more information see https://www.hp.com/go/printerclaims. Exact speed varies depending on the system configuration, software application, driver, and document complexity.)
Copy resolution (black text)
Up to 600 x 600 dpi (Flatbed), 300 x 600 dpi (ADF)
Copy resolution (color text and graphics)
Up to 600 x 600 dpi (Flatbed), 300 x 600 dpi (ADF)
Copy reduce / enlarge settings
25 to 400%
Copies, maximum
Up to 9999 copies
Power and operating requirements
Power
110-volt input voltage: 110 to 127 VAC (+/- 10%), 60 Hz (+/- 2 Hz), 12 A; 220-volt input voltage: 220 to 240 VAC (+/- 10%), 50 Hz (+/- 2 Hz), 6 A (Not dual voltage, power supply varies by part number with # Option code identifier)
Power consumption
797 watts (Printing), 83 watts (Ready), 7 watts (Sleep), 0.07 watts (Manual Off), 1.53 (Auto Off/Wake on LAN), 0.07 (Auto Off/Manual On)
(Power requirements are based on the country/region where the printer is sold. Do not convert operating voltages. This will damage the printer and void the product warranty.)
Energy efficiency
-
- ENERGY STAR qualified
- Blue Angel
- CECP
- EPEAT Silver
Operating temperature range
15 to 30C
Operating humidity range
30 to 70% RH
Acoustic power emissions (ready)
5.3 B(A)
(Acoustic values are subject to change. For current information see https://www.hp.com/support. Configuration tested: M680f model, simplex printing, A4 paper at an average of 43 ppm.)
Acoustic pressure emissions bystander (active, printing)
54 dB(A)
(Acoustic values are subject to change. For current information see https://www.hp.com/support. Configuration tested: M680f model, simplex printing, A4 paper at an average of 43 ppm.)
Dimensions and weight
Minimum dimensions (W x D x H)
31.1 x 25 x 23 in
Maximum Dimensions (W x D x H)
45.8 x 34.9 x 33.5 in
(All trays closed, output bin and control panel extended)
Weight
124.3 lb
(Includes print cartridges)
Package weight
61.6 kg
What's included
What's in the box
HP Color LaserJet Multifunction Printer
Black, Cyan, Magenta, and Yellow HP Color LaserJet Toner Cartridges(installed)
CD with software drivers and documentation
Documentation (Hardware Install Guide)
Power cord
HP Jetdirect Gigabit Ethernet Print Server (embedded)
100-sheet multipurpose tray 1
500-sheet input tray 2
Automatic duplexer (built-in)
Encrypted Hard Drive
Cable included
No, please purchase USB cable separately
Software included
Windows: HP Installer/Uninstaller, HP PCL 6 print driver, Wizard, Scan to Folder Setup Wizard, Scan to e-mail setup Wizard, HP Send Fax, DXP (Device Experience), HP Help & Learn Center, Product Registration Assist. Mac: HP Installer/Uninstaller, HP Postscript driver, HP Utility, HP Alerts, HP Firmware Updater
Warranty
One-year, onsite warranty
Post warranty repair & maintenance
Printer Accessories
