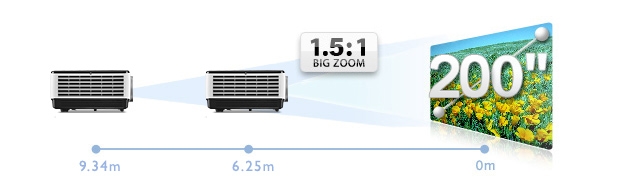

Diversified Options for Control and Management Big Zoom for Extra Projector Installation Flexibility
The MW769's 1.5x big zoom feature opens up space with an impressively wide range of throw distances. All you have to do is simply place the new projector right where your original ceiling mount is. Without adding projector installation re-construction costs to your budget list, you'll get to save the money for better use.

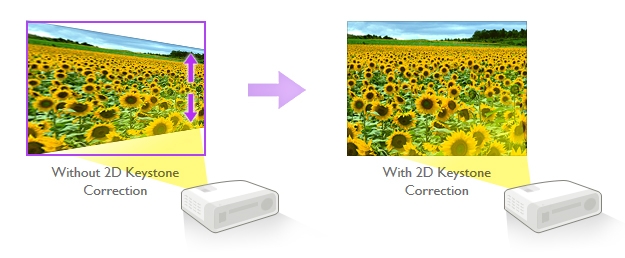

2D Keystone Correction
When the projector is placed off center, the 2D keystone correction feature gives you wider projector installation flexibility by correcting the trapezoid effect using horizontal and vertical adjustments.

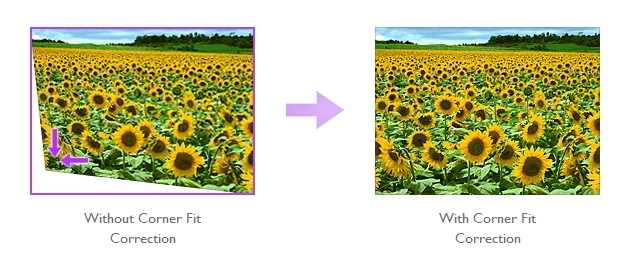

Corner Fit Correction
Corner Fit is a flexible and convenient way to correct picture dimensions by adjusting each corner of an image independently.

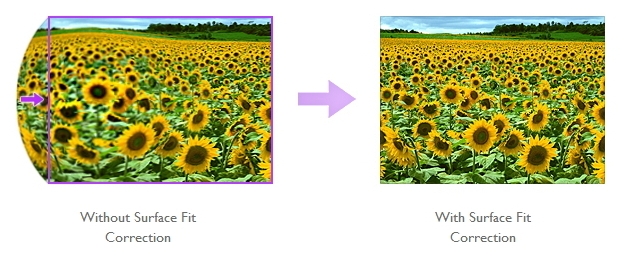

Surface Fit Correction
Featured in selected BenQ projectors, Surface Fit is designed to support projection on non-standard surfaces, such as concave and convex surfaces, offering you more projection possibilities.

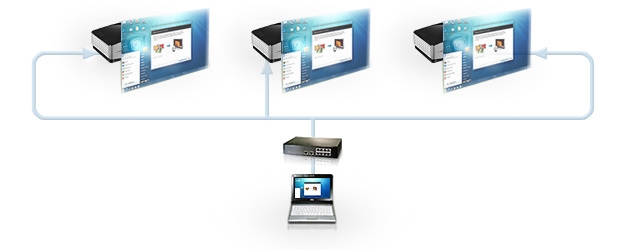

LAN Control with Crestron and PJ-Link
LAN Control is designed to help IT managers perform day-to-day projector maintenance and repair tasks efficiently and effectively – offering them full access and control over every projector directly from their workstations. The MW769 offers seamless support for the Crestron and PJ-Link LAN Control systems.
Blu-ray Full HD 3D Support Supports Various 3D Formats
The MW769 comes standard-equipped with DLP Link™-supported 3D projection to offer the same amazing 3D effects as seen in 3D movie theaters. The 3D formats supported by the MW769 are 3D field-sequential, 3D frame packing, 3D top-and-bottom and 3D side-by-side. This incredible projector can be connected to a Blu-ray DVD player for even more stunning visual quality.
Various 3D Formats Supported:
| Source / format |
3D Field Sequential |
3D frame packing |
3D top bottom |
3D side by side |
| D SUB-PC |
V |
|
V |
V |
| HDMI-PC |
V |
|
V |
V |
| HDMI-Video |
V |
V |
V |
V |
| S-video |
V |
|
|
|
| Video |
V |
|
|
Hassle-free Projector Maintenance
Upper lamp door for easy lamp access
The upper lamp door is designed for IT managers to be able to replace the projector lamp safely and quickly. Should the projector lamp go out in the middle of class, it can be replaced without major teaching delays.

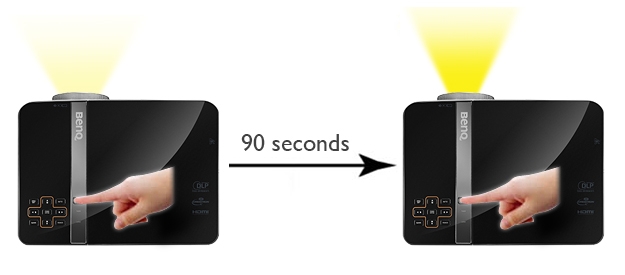

Thoughful Designs Instant Restart
The Instant Restart feature gives teachers a 90-second window to turn the projector back on immediately when it has been switched off by accident – no waiting necessary.

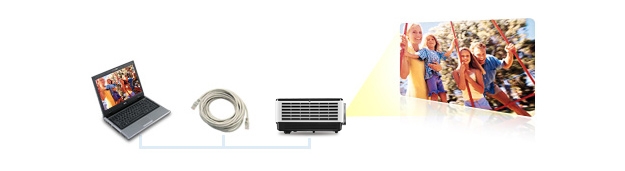

LAN Display
Through a single LAN cable to control and display projections, LAN Display offers a cost-effective solution for projector implementation management. This feature also offers simultaneous 4-1 or partial projection display options for better content management for discussions, presentations, training and classroom teaching.
Microphone Input Support
With the microphone input, you will no longer need to shout to get the attention of your audience. All you need to do is plug in a microphone or microphone headset to get your point across!
ecoFACTS Label
ecoFACTS can tell you how eco-friendly BenQ products are!
Development of eco-friendly products, BenQ doesn't just want to comply with green regulations passively, but also to actively develop eco-friendly products!
ecoFACTS declares BenQ's greatest efforts on the replacement of hazardous substances, material selection, packaging design, energy-saving design and other aspects of the products.
Specifications
| Projection System |
DLP |
| Native Resolution |
WXGA(1280x800) |
| Brightness* (ANSI Lumens) |
4200 ANSI Lumen |
| Contrast Ratio |
13000:1 |
| Display Color |
1.07 Billion Colors |
| Lens |
F=2.42~2.97, f=20.7~31.05mm |
| Aspect Ratio |
Native 16:10 (5 aspect ratio selectable) |
| Throw Ratio |
1.45~2.17 |
| Image Size (Diagonal) |
31" ~ 300" |
| Zoom Ratio |
1.5x |
| Lamp Type |
310W |
| Keystone Adjustment |
2D, V +/- 30 degree, H +/- 25 degree |
| Projection Offset |
Vertical: 125% 5% |
| Resolution Support |
VGA(640 x 480) to UXGA(1600 x 1200) |
| Horizontal Frequency |
15K-102KHz |
| Vertical Scan Rate |
23-120Hz |
| Dimensions (W x H x D mm) |
329x137.2x248.7mm (include feet)
329x127.2x248.7mm (exclude feet) |
| HDTV Compatibility |
480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Video Compatibility |
NTSC, PAL, SECAM |
| 3D Support and Compatibility |
Frame Sequential: Up to 60Hz 720p
Frame Packing: Up to 24 Hz 1080p
Side by Side: Up to 24Hz 1080p
Top Bottom: Up to 60Hz 1080p |
| Weight |
8.6 lbs(3.9 Kg) |
| Audible Noise (Normal/Economic Mode) |
36/34 dBA (Normal/Economic mode) |
| Power Supply |
AC100 to 240V, 4.2A, 50 to 60 Hz |
| Power Consumption |
400W(Normal), 340W(Eco), Standby<0.5W |
| On-Screen Display Languages |
Arabic/Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/ Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/Spanish/ Swedish/ Turkish/ Thai/ Traditional Chinese (28 Languages) |
| Picture Modes |
Dynamic / Presentation / sRGB / Cinema / (3D) / User 1 / User 2 |
| Accessories (Standard) |
Carry bag
Power Cord (by region)
Remote Control w Battery
VGA cable
User Manual CD
QSG
Lens Cover
Warranty Card (by region) |
| Accessories (Optional) |
Spare Lamp Kit
Ceiling mount kit |
