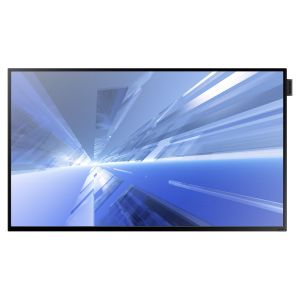

Samsung LH32DMDPLGC/XY DM32D Commercial LED LCD Display
  • 32" Slim-Direct-Lit LED, Widescreen, 8ms, 1920x1080, 5000;1, 450cd/m2, VGA, DVI, HDMI, DisplayPort, Wi-Fi, Speakers

IMG 1 of 3
No Longer Available
Part Number:
318611
(?) Brand:
Samsung Web Site
Manuf No:
LH32DMDPLGC/XY
Shipping Weight:
25 KG (Includes product packaging)
Estimate Shipping
Date Added:
4/6/2014
Details Files Finance Images & Video
All stock codes associated to this product
LH32DMDPLGC/XY, DM32D

DM32D - DM-D Series 32" Slim Direct-Lit LED Display


The Samsung DM32D delivers 24/7 reliability for continuous operation. Create stunning and seamless video walls in full HD resolution thanks to an upgraded Samsung SMART Signage Platform (SSP) and full range of connectivity options. Combined with a sleek industrial design and slim 2" chassis depth, you can captivate your audience in a moment and leave a lasting impression on the 32" screen.

  • Mainstream Model Supporting 24/7 Reliability and Continuous Operation
  • Enhanced SSP System-on-Chip (SoC) Performance with Quad Core Processor
  • Sleek Industrial Design with Symmetrical 10.5mm Bezel
  • Built-in Wi-Fi and AllShare  Cast for Simple Content Mirroring from Mobile Devices

Product Features


Reliable 24/7 Continuous Operation

Innovative Samsung cooling technologies allow your message to be displayed with highly reliable 24/7 continuous operation. So business users can meet 24/7 operating requirements in venues ranging from retail stores to Command & Control facilities.


Enhanced SSP with Quad Core Processor

Experience enhanced SoC performance with a quad core processor. SSP is an integrated, open platform providing a powerful streamlined solution to reduce TCO in digital signage deployments through savings in hardware installation and operating costs.


Sleek Industrial Design

Slim-direct LED backlight technology delivers a sleek industrial design with a 2" chassis depth that is combined with a symmetrical 10.5mm bezel for an elegant look. LED also slims your TCO thanks to up to 50% energy savings over CCFL.

PC-Less Touch Support

The optional touch overlay accessory delivers a cost effective, PC-less touch solution that transforms your display into an interactive whiteboard. Create more collaborative presentations or a dynamic customer experience with tangible results for your business.


Full Connectivity

Discover versatile connectivity options to display a full range of exceptional content that speaks to your audience. Connections include D-Sub, Component, Composite, HDMI, DVI, USB, SD, RS232C In/Out, IR In/Out and more.


Built-In Wi-Fi

Expanding your versatility even more, you can enjoy easy media sharing and screen control with built-in Wi-Fi and AllShare  Cast. Use AllShare  Cast over a Wi-Fi connection for simple content mirroring from a tablet or mobile phone to your display.


Clean UI Design

A user-friendly interface provides an intuitive user experience from changing display settings to installing video walls and managing content schedules and templates. Helping to streamline installation and maintenance, users can effectively coordinate their signage.

Specifications

Series Name
Series Name DM
Display
Panel Technology 60Hz Slim D-LED BLU
Aspect Ratio 16:9
Contrast Ratio (Typical) 5000:1
Viewing Angle (H/V) 178 / 178
Response Time 8ms
Connectivity
Input Video: VGA (D-Sub 15 Pin), DVI-D, DisplayPort 1.2, Component/Composite, HDMI, Audio: Stereo Mini Jack
Output Video: DisplayPort 1.2 (Loop-Out), Audio: Stereo Mini Jack
External Control RS232C (In/Out) thru Stereo Jack, RJ45
Sensor IR, Ambient Light
Power
Power Supply AC 100 - 240 V~ (+/- 10 %), 50/60 Hz
Power Consumption (Typical/Max) 61W / 77W
Power Consumption (Standby) < 0.5W
Environmental Conditions
Operating Temperature 0C - 40C
Operating Humidity 10%~80%
Features
Special Hardware: Super Clear Coating, Temperature Sensor, Videowall (15x15), Pivot Display, Clock Battery(80hrs Clock Keeping), WiFi Module Embedded, AllShare Screen Mirroring, SD Card Slot
Software: Magic Clone (to USB), Auto Source Switching & Recovery, Lamp Error Detection, RS232C/RJ45 MDC, Plug and Play (DDC2B), PIP/PBP, Image Rotation, Button Lock, Smart Scheduling, Smart F/W update, Built In MagicInfo Player S2, Firmware Update by Network, LFD New Home Screen, PC-less Videowall, Predefined Template for Vertical Usage, Multi Channel, Mobile Control, Event Schedule, Backup Player, PC-less Touch
SMART Signage Platform Yes
Built-in Tuner Yes
Media Player Type Cortex-A9 1GHz Quad Core, 1.5GB DDR3, 4GB FDM, USB 2.0, Linux OS
VESA Standard Wall-Mount Interface 200 x 200mm
24/7 Operation Yes
Wi-Fi Yes
Built-in Speakers Yes
Dimensions
Without Stand (W x H x D) 28.4" x 16.5" x 2.0"
Packaging (W x H x D) 31.5" x 18.5" x 4.6"
Bezel Width 10.5 (U/L), 15.0 (R/B)
Weight
Set 10.7 lb.
Package 13.0 lb.
Service
Standard Warranty 3 Years On-Site (Parts / Labor / Backlight)
Accessories
Included in Box Quick Setup Guide, Warranty Card, D-Sub Cable, Power Cord, Remote Controller, Batteries
Optional Wall Mount WMN4070SD, WMN250MD
Optional Stand STN-L32D, STN-L3240E
Touch Overlay CY-TD32
Optional Media Player Embbeded, SBB-C (Attachable)
Green Management
ENERGY STAR Certified Yes
RoHS Compliant Yes
Emission Standard EMC
Packaging Recyclability Packing Materials Recyclable
Package Contents
Manuals Included
Cables Included
Optional Accessories CML400D (Ceiling Mount), Foot Stand
