All stock codes associated to this product
SESSIU3CSAU, SESSIU3CS-AU
This new Addonics Sapphire USB or eSATA drive enclosure is a compact size
drive enclosure designed to support full height SATA optical drive or 5.25"
storage device such as the Mobile Rack. Made with a rugged brushed anodized
aluminum body, this Sapphire drive enclosure is built for durability and to
provide effective heat dissipation in various operation environment. Come with
choice of high-speed USB 3.1, USB 3.0 or eSATA interface, this Sapphire
enclosure is great for building your own custom external optical drive or drive
cartridge system for hard drive or SSD
Since storage device connected to eSATA port appears as an internal drive to
the OS, the eSATA interface with an optical drive or hard drive can be used to
boot up a computer, a great solution for system rescue operation or computer
sharing or applications that need an external boot drive.

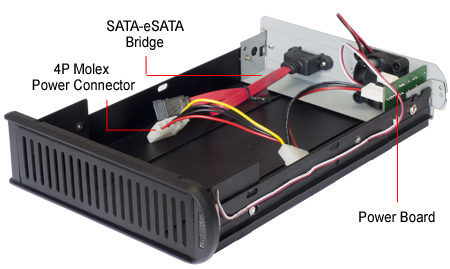

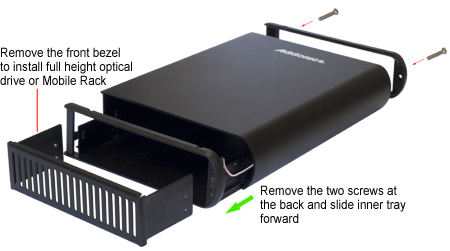

inner tray for Model: SESCS, SESSIU3CS or SESU3CS
inner tray for Model: SU3CS
Can convert to USB 3.0 interface using optional miniUSB 3.0 - eSATA
adapter(ADU3ESAM). Model SESU3CS comes bundled with this adapter

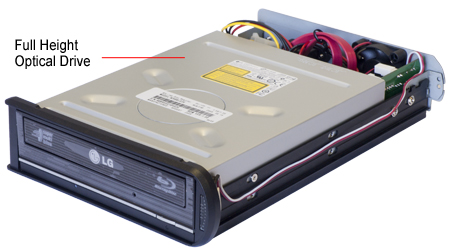

Illustration of full height Blu-ray burner mounted onto the inner tray
List of 5 1/4" devices that can be installed into the Sapphire enclosure
- most of the full height Blu-ray or DVD-RRW burners
- Addonics Mobile Rack or most of the mobile racks for 3.5" SATA
hard drive with length not exceeding 7.5 in.
- Addonics 2.5" Disk Array
- Most 3.5" devices using Addonics 3.5" - 5.25" mounting
bracket
Features

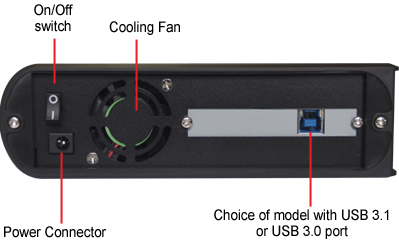

- Connect SATA optical drive or Mobile Rack to computer via USB 3.1, USB 3.0
or eSATA port
- Supported following SATA devices:
- full height 5.25" SATA Blu-Ray, DVD-RRW drive
- Addonics Snap-in Mobile Rack, Mobile Rack II or Mobile Rack III
- Addonics Ruby Drive Cartridge System
- Any 5.25" SATA mobile rack not exceeding 7.5 in. in length

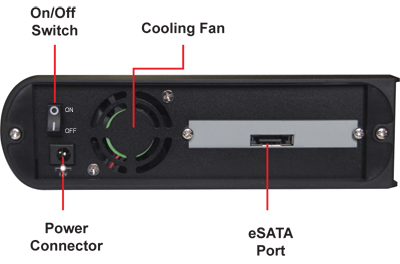

- Choice of model with eSATA, USB 3.1 or USB 3.0 connection
- Maximum transfer rate:
- 6 Gbps - eSATA
- 12 Mbps - USB 1.1
- 480 Mbps - USB 2.0 high speed
- 5 Gbps - USB 3.0 super speed
- 10 Gbps - USB 3.1 SuperSpeed+
Specifications
Support drive type | full height 5.25" SATA Blu-Ray, DVD-RRW drive |
| ATATPI optical drive by adding optional Addonics IDE-SATA adapter
(ADIDESA) |
| Addonics Snap-In Mobile Rack, Mobile Rack II or Mobile Rack
III |
| |
Interface Type: | Choice of USB 3.1, USB 3.0 or eSATA |
Construction material: | Brushed anodized black aluminum body |
LED | Power (blue) |
Supported OS | USB - DOS, Windows XP or newer release, Mac OS X, Linux
Kernel 2.4 and above, Solaris 8 10/00 or later
release. |
| eSATA - DOS, all Windows, Mac OS X, Linux Kernel 2.4
and above |
| |
Power Supply: | 100 / 240V AC/DC 12V 36 watts Power Adapter (model:
AAP12V3A) |
Connectors inside: | 4P Molex male or 15P SATA power (via a included 4P female to 15P SATA
adapter cable, AA4PSAPCBL) |
| SATA connecting cable for attaching to standard SATA storage
device |
Cooling system: | Rear mount 40x40 mm cooling fan |
Dimensions (L x W x H): | ~ 9.88 x 6.88 x 2.00 in ( 251 x 175 x 50.8 mm) |
Weight: | ~ 1.8 lbs. (814 g) |
Storage Temperature: | Range: -30 C to +60 C |
Operating Temperature and humidity: | +5 C to +40 C, 5% to 95% RH |
Storage Temperature | 30 C to +60 C, 5% to 90% RH |
and Humidity: | |
Warranty: | One Year |
Contents
Sapphire enclosure integrated SATA -eSATAbridge, 3-footeSATA cable, mini USB 3.0 - eSATA adapter (ADU3ESAM), IDE-SATA adapter(ADIDESA), 3.5" device mounting bracket (AAMK53), 110/240V AC/DC 12V power adapter (AAP12V3A-US), user guide.
