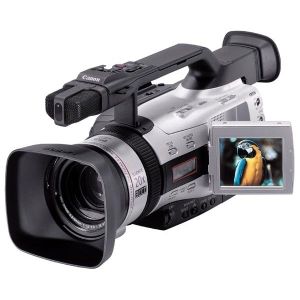

The high performance 3CCD DV camera with 20x zoom for advanced movie making
- Advanced 3CCD camera system with Super Pixel Shift delivering exceptional image quality
- High magnification Canon L-series 20x fluorite zoom lens for outstanding resolution and colour
- Professional level manual audio control, gain control, zebra pattern and colour bar
- High quality 1.68 Megapixel still image capture, removable memory card and USB interface
HIGH PERFORMANCE OPTICS
- Powerful and high resolution Canon 4.2-84mm f⁄1.6-2.9 lens 20x optical ⁄ 100x digital zoom
- Canon L-series 20x zoom lens equivalent to 39.5-790mm in 35mm format, ideal for many types of film making
- Advanced Canon optical design including 1 x fluorite and 2 x Aspherical elements for outstanding colour quality and low image distortion
- Optical Image Stabilizer eliminates handheld picture shake even when shooting at longer focal lengths
SUPER HIGH IMAGE QUALITY
- 3 x ¼ inch 440,000 pixel CCDs and RGB primary colour filter delivering approx. 540 TV lines of resolution
- High resolution 1.68 Megapixel still images (1488 x 1128 pixels) on removeable SD ⁄ MMC memory card
- Super Pixel Shift (horizontal and vertical) technology increasing sampling points for superior image quality, improved low light performance and minimal vertical smear
- Fast USB interface and Canon software for downloading, archiving, viewing and printing still images
POWERFUL FEATURES AND AUDIO CONTROL
- Automatic or manual L⁄R audio control with level meter and optional MA-300 Microphone Adapter for use with professional level XLR terminal equipped balanced microphones
- Adjustable 5 level Zebra Pattern for overexposure warning, Clear Scan Mode for recording monitors and screens, EBU Colour Bar for accurate colour when editing, variable Gain Control settings for light level adjustment, 16:9 Viewfinder Marker for recording in widescreen and Interval Timer recording
- Pro-level Image Quality Control including Colour Gain, Hue, Sharpness and Black Level adjustment
- DV and analogue in⁄out allowing analogue to digital conversion, loss-less duplication and non-linear editing
HUGE RANGE OF STANDARD ACCESSORIES AND SOFTWARE
- 8 MB SD Memory Card SDC-8M, Wireless Controller WL-D77A, Compact Power Adapter CA-920, DC Coupler DC-920, Battery Pack BP-915, S-video Cable S-150, Stereo Video Cable STV-250N, USB Interface Cable IFC-300PCU, Shoulder Strap SS-650, Lens Hood, Large Eye Cup
- Comprehensive software bundle with Canon Digital Video Solution Disk Ver. 3.0 including ZoomBrowser EX (PC), Image Browser (Mac) and Photorecord (PC⁄Mac)
SPECIFICATIONS
|
Video system:
|
|
Mini DV/PAL
|
|
CCD Size / Type:
|
|
1/4 - inch 3CCD
|
|
Total / Effective Pixels:
|
|
470,000 (total), 440,000 (effective)
|
|
Colour Separation:
|
|
Prism and dichroic filter
|
|
Exposure Modes:
|
|
Easy Recording, Auto mode, Spotlight mode, Surf & Snow mode, TV mode, AV mode, Manual Mode
|
|
Shooting Modes:
|
|
Motion Video (normal video and frame video) and Still Image
|
|
Light Metering:
|
|
Centre-weighted and whole area average photometry + 80-segment evaluative photometry
|
|
Minimum lux:
|
|
1 lux (during 1/6-second slow shutter)
|
|
Shutter Speed:
|
|
1/50 to 1/16,000 second
|
|
Gain:
|
|
0 dB, 6dB, 12 dB and 18 dB
|
|
AE Level Shift:
|
|
+/- 6 levels in 0.25 stops
|
|
Auto white balance:
|
|
Auto, Set, Preset (indoor/outdoor), Systems (TTL 80 segments)
|
|
Viewfinder:
|
|
0.44-inch TFT colour LCD, approx. 180,000 pixels RGB delta arrangement
|
|
LCD screen:
|
|
2.5-inch TFT colour LCD, approx. 200,000 pixels
|
|
Lens:
|
|
20x lens
|
|
Focal length:
|
|
f=4.2 to 84mm
|
|
Maximum aperture :
|
|
F1.6 to 2.9
|
|
Image Stabilizer:
|
|
Optical Image Stabilisation and angular velocity sensing
|
|
Autofocus:
|
|
TTL TV-AF system
|
|
Manual Focus:
|
|
Yes - using focus ring
|
|
Long play mode:
|
|
Yes
|
|
Audio system:
|
|
16-bit 2-channel, 12-bit 4-channel
|
|
Microphone:
|
|
Yes, input (3.5mm stereo mini-jack)
|
|
Headphone:
|
|
Yes, output (3.5mm stereo mini-jack)
|
|
DV terminal:
|
|
Yes, input and output (IEEE 1394 compatible)
|
|
Other terminals :
|
|
 |
S Terminal: Yes, input and output (4-pin Mini DIN) |
|
AV Terminal: 3.5mm input and output |
|
Editing terminals: LANC terminal (2.5mm mini mini-jack) |
|
|
USB port:
|
|
Mini-B (5-pin connector)
|
|
Wireless Controller:
|
|
WL-D77A
|
|
Power supply:
|
|
DC 7.2 V
|
|
Power Consumption:
|
|
Approx. 4.8 W (using EVF), approx. 5.7 W (LCD monitor)
|
|
Battery Pack :
|
|
BP-915
|
|
Operating Temperature:
|
|
0 to 40 degrees C
|
|
Dimensions (W x H x D):
|
|
118 x 136 x 306mm
|
|
Continuous Recording Time:
|
|
120 minutes (using LP mode)
|
|
Weight :
|
|
Approx. 1.12 kg (body only)
|
|
Weight (fully equipped):
|
|
Approx. 1.27 kg (includes BP-915, lens hood, lens cap, DVM-E30 and lithium button battery)
|
|
All data based on Canon's Standard Test Method:
|
|
Subject to change without notice:
|
|
**Please note - for a complete list of standard inclusions and optional accessories, contact your nearest Canon dealer. Not all items listed in the specifications come as standard:
|
