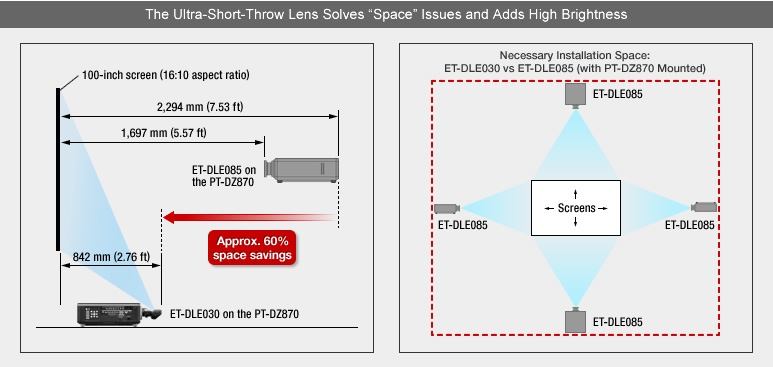

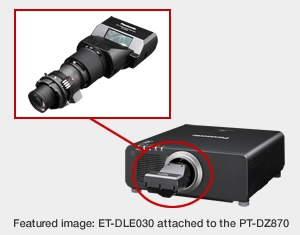

By mounting the newly developed ET-DLE030 ultra-short-throw lens onto Panasonic's 1-chip DLP projector*, you can shorten the projection distance by approximately 60 % compared with our ET-DLE085 and ET-DLE080 short throw lenses.
This huge savings in space lets you project images in spots where you previously could notsuch as places where the ceiling is too high, or where there is not enough front or rear space for projecting.
NOTE: In order to provide an exhaust/intake cooling space at the rear/front of the projector, an unobstructed space of 500 mm (19-11/16 in) or more for ventilation above is recommended to have. Please completely separate exhaust/intake air flow.
Application Example
The ET-DLE030 ultra-short-throw lens makes it possible to install projectors in spaces that were never before possible.
Thus applications greatly expand for digital signage in show windows, stores, train stations, and other locations.

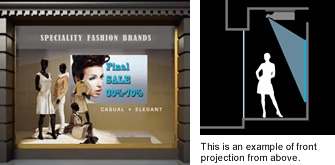

Large images can be projected onto a screen at the back of a shallow show window without blocking the view of the products on display.

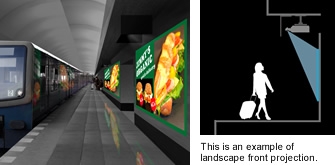

Projection onto a large screen becomes possible even in places where there wasn't previously enough space for front projection.
Dead space, such as pillars, can be used to save space compared to conventional installations.

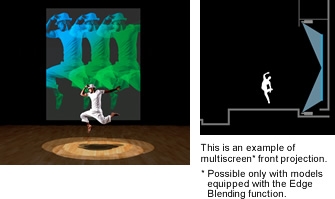

Large-screen projection becomes possible in places where the ceiling was previously too high, or the stage was too shallow.
Amusement
Advanced image content can also be displayed in facilities where there previously wasn't enough space to install a projector, greatly increasing the power of the attraction.

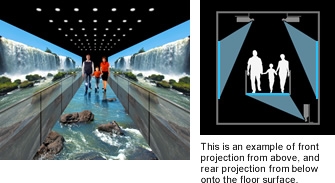

Also, combined with projection from under the floor onto the floor surface, or projection onto the ceiling virtually wraps visitors in the image.
Specifications
| Model |
ET-DLE030
|
| F value |
2.0 |
| Focal length (f:) |
5.3 mm |
| Dimensions (W x H x D) |
132 x 102 x 311 mm (5-3/16 x 4-1/32 x 12-1/4 in) |
| Weight |
Approx. 1.3 kg (2.9 lbs) |
| Applicable projectors |
PT-DZ870/DW830/DX100
PT-DZ770/DW740/DX810
PT-DZ680/DW640/DX610
PT-DZ6710/DZ6700/DW6300/D6000/D5000 |
Recommended optional
accessories |
Ceiling mount bracket with
6-axis adjustment mechanism for
high ceiling
ET-PKD130H
Attachment for ceiling
mount bracket
ET-PKD130B
* The ET-PKD130H ceiling mount bracket is used together
with an optional attachment ET-PKD130B (sold separately).
|
