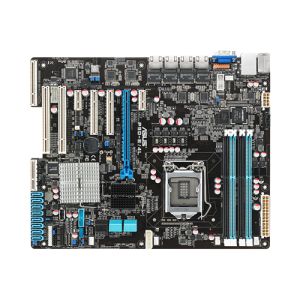

P9D-E/4L
Extreme I/O Expandability with High VR Power Efficiency
P9D-E/4L is the flagship model of ASUS latest UP Denlow serverboards. The board is perfectly designed with powerful I/O expandability and digital power solution increasing VR power efficiency up to 94%. The versatile and highly reliable P9D-E/4L is ideal for data center front-end, firewall, gateway, storage, SMB print/ file/ mail/ exchange server, and more.
Overview
The most scalable PCI-E expandability, advanced I/O technology
The ASUS P9D-E/4L provides industrial leading 3 PCI Express 3.0 x8 slots and one ASUS PIKE support. Along with the ASUS technology, this board presents the most powerful PCI-E expandability ever in UP server boards.
The P9D-E/4L server board is built to support up to 4 USB 3.0 ports. Built to connect easily with next generation components and peripherals, USB 3.0 transfers data 10X faster and is also backward compatible with USB 2.0.
Design to support legacy PCI device applications
Besides the latest PCI-E technology, P9D-E/4L keeps the legacy PCI slots on board which can fulfill various customers requirements. Customers can move their existing legacy PCI add-on cards to P9D-E/4L, and still benefit from up-to-date Intel Xeon E3-1200 v3 Processor Family and DDR3 memory technology to their solutions.
High power efficiency with premium components and digital power control
ASUS-exclusive Beat Thermal Chokes and new Dr. MOS (MOSFETs) improve the voltage regulator (VR) power efficiency. The Beat Thermal Chokes handle the pressure with ease, as a unique fin design results in around 4C lower choke temperatures for added stability, which is increased exponentially by use of highly conductive and efficient gold-treated coating. This translates into minimal-loss power delivery. Besides, with proven stable circuit integrated, Dr. MOS optimizes switching performance.
Digital CPU power controls work perfectly together to match digital power signal (SVID) requests from the CPU, with ultra-fast sensing and response efficiently delivering precision power. Accurate delivery reduces waste, and provides more stable voltage.
The benefits from these components significantly increase P9D-E/4L VR power efficiency up to 94%.
Quad Intel I210AT Gigabit Ethernet
The ASUS P9D-E/4L ships with quad server-class Intel Ethernet ports with the I210AT controllers, which doubles queues compared to previous-generation Intel 82574L controllers. This is better for virtualization applications. In addition, the quad LAN teaming ports provide high networking bandwidth with load balance and fault tolerance functions. This design greatly reduces data processing bottlenecks during network traffic.
Comprehensive server management: ASMB7-iKVM and ASWM Enterprise
The ASMB7-iKVM upgrade kit enables dashboard system health monitoring, remote power on/off and control, virtual media over LAN, and management LAN fail-over support. In addition, the ASMB7 function is based on BIOS-level access, so even if the servers operating system is down or offline, the KVM module can still provide round-the-clock remote monitoring and diagnosis through a user-friendly web-based graphical interface via all major browsers. ASWM Enterprise software provides one-to-multiple centralized management, including BIOS flash, remote control, and power control, all through a colorful and informative graphical interface.
SATA DOM (Disk on Module) ready
A SATA DOM is a flash drive simulating a hard disc which can be used without additional software or drivers. It is particularly helpful within embedded computing systems or thin clients. ASUS-exclusive design adds an onboard 4-pin power connector and USB header to make SATA DOM installation simple and easy.
Friendly Design for front I/O, front VGA
An accessible rear power button is reserved onboard for use as front panel ports when reversing the serverboard. An extra 15-pin VGA header features front-panel monitor connectivity, helping customers with greater flexibility. These designs provide flexible I/O integration for users to fit in various computing environments.
Specifications
- Processor / System Bus
1 x Socket LGA1150
Intel Xeon processor E3-1200 v3 product family
4th Gen Intel Core i3 processors
Intel Pentium processors
Intel Celeron processors
*Refer to www.asus.com for CPU Support list
- Core Logic
Intel C224 Chipset
- Memory
Total Slots : 4 (2-channel)
Capacity : Maximum up to 32GB UDIMM
Memory Type :
DDR3 1600/1333 UDIMM with ECC
Memory Size :
8GB, 4GB, 2GB
- Expansion Slots
Total Slot : 7
Slot Location 1 : PCI 32bit/33MHz
Slot Location 2 : PCI 32bit/33MHz
Slot Location 3 : PCI-E x1 (Gen2 X1 Link)
Slot Location 4 : PCI-E x8 (Gen3 X8 Link)
Slot Location 5 : PCI-E x8 (Gen3 X8 Link)
Slot Location 6 : PCI-E x16 (Gen3 X16 Link), Auto switch to x8 link if slot 5 is occupied
Slot Location 7 : PCI-E x1 (Gen2 X1 Link), MIO supported
Additional Slot 1 : PIKE Slot for Stroage expansion *1
Follow SSI Location#
- Form Factor
ATX (12"x9.6")
- ASUS Features
FAN speed control
Rack Ready (Rack and Pedestal dual use)
ASWM Enterprise
- Storage
SATA Controller :
Intel C224
4 x SATA3 6Gb/s ports
2 x SATA2 3Gb/s ports
Intel Rapid Storage Technology Enterprise(RSTe) (For Windows Only)
(Support Software RAID 0, 1, 5, 10 )
LSI MegaRAID (For Linux/Windows)
(Support Software RAID 0, 1, 10 )
SAS Controller :
ASUS PIKE 2008 8-port SAS2 6G RAID card (Optional)
ASUS PIKE 2008/IMR 8-port SAS2 6G RAID card(Optional)
ASUS PIKE 2108-32PD 8-port SAS2 6G RAID card (Optional)
ASUS PIKE 2208 8-port SAS 6G HW RAID card (Optional)
ASUS PIKE 2308 8-port SAS 6G RAID card (Optional)
ASUS PIKE 9230 4-port SATA 6G RAID card (Optional)
- Networking
4 x Intel I210AT + 1 x Mgmt LAN
- Graphic
Aspeed AST2300 with 32MB VRAM
- On Board I/O
1 x TPM header
1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector)
1 x Management Connector , Onboard header for management card
1 x USB 3.0 pin header , Up to 2 Devices
1 x USB 2.0 pin header , Up to 2 Devices
1 x Internal A Type USB Port*2
5 x Fan Header , 4pin
1 x SMBus
1 x Chassis Intruder
4 x Front LAN LED
2 x Serial Port Header
1 x SATA DOM Power connector*3
1 x VGA Header
- Back I/O Ports
4 x External USB Port (2 x USB 3.0, 2 x USB 2.0)
1 x VGA Port
4 x RJ-45 + 1 x Mgmt LAN
1 x PS/2 KB/Mouse
- Management Solution
Software: ASWM Enterprise
Out of Band Remote Management: Optional ASMB7-iKVM for KVM-over-Internet
- Regulatory Compliance
CE, C-Tick, FCC(Class B)
- Environment
Operation temperature: 10 ~ 35
Non operation temperature: -40 ~ 70
Non operation humidity: 20% ~ 90% ( Non condensing)
- Accessories
Standard Gift Box Pack
1 x User Guide
2 x Support CD
1 x I/O shield
4 x SATA 6G cables + 2 x SATA 3G cables
1 x COM port cable
1 x USB to SATA DOM Power cable
1 x Plate for LGA1150
Standard Bulk Pack
1 x User Guide
2 x Support CD
1 x I/O shield
1 x Plate for LGA1150
- Product SKUs
Standard Gift Box Pack
Standard Bulk Pack
- Monitoring
CPU Temperature
Fan RPM
- Note
*1 Gen3 supported
*2 1 x USB 2.0 connector
*3 4-pin power connector
