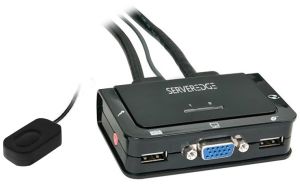

Serveredge 2-Port USB / VGA Cable KVM Switch With Audio & Remote
KP02UVA
Product Description
The Serveredge KP02UVA is a 2-port USB Cable KVM Switch with 2 x fixed KVM cables and 1 x QuickSwitch button for wired remote control. It also provides Audio and Microphone switching function for uninterrupted multimedia experience. It allows you to access, control, boot and reboot multiple multimedia computers using only one USB keyboard, mouse, monitor and a speaker set and microphone.
Product Specification
|
Model No.
|
KP02UVA
|
|
Product Description
|
2-Port VGA USB Cable KVM Switch w/ Audio & Mic
|
|
|
|
Number of Ports
|
2
|
|
|
|
Number of Console
|
1
|
|
|
|
Console Keyboard Connector
|
USB 2.0 Type A Female
|
|
Console Mouse Connector
|
USB 2.0 Type A Female
|
|
|
|
Console Video Connector
|
VGA HDB15 Female
|
|
|
|
Console Audio/Mic Connector
|
2 x 3.5mm Audio/Mic Jack Female
|
|
|
|
PC Keyboard Connector
|
2 x USB Type A Male
|
|
|
|
PC Mouse Connector
|
Via PC Keyboard Connector
|
|
|
|
PC Video Connector
|
2 x VGA HDB15 Male
|
|
|
|
PC Audio/Mic Connector
|
4 x 3.5mm Audio/Mic Jack Male
|
|
|
|
PC selection
|
QuickSwitch Button / Hotkeys / Switching Software (Win/Mac)
|
|
|
|
PC port LED
|
2 x Green
|
|
|
|
Analog Display Resolution
|
2048 x 1536
|
|
|
|
Cables
|
2 x 0.9m
|
|
|
|
Keyboard & Mouse Emulation
|
Yes
|
|
|
|
Operation Temperature
|
0 ~ 40C
|
|
|
|
Storage Temperature
|
-20 ~ 60C
|
|
|
|
Humidity
|
0~90% RH, Non-Condensing
|
|
|
|
Power type
|
USB Bus Powered
|
|
|
|
Weight
|
357g
|
|
|
|
Dimension(LWH)
|
87 x 59 x 25mm
|
|
|
|
Safety / Emission
|
FCC, CE
|
PRODUCT FEATURE
1 x wired QuickSwitch! Button for instant switching by a flip
2 x fixed VGA USB KVM Audio/Mic combo cables
Windows and Mac switching software support
USB 2.0 hub ports for keyboard, mouse or other high-speed USB devices
VGA analog video up to 2048 x 1536
Independent/simultaneous switching of PC and Audio/Mic channel
User-definable hotkeys and universal hotkey for computer switching
