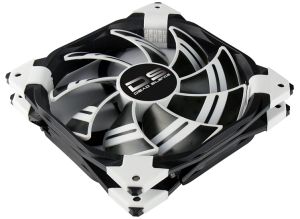

AeroCool DS Dead Silence Fan - 140x140x25mm, Fluid Dynamic Bearing, 1000~700rpm, 64.8~39.8CFM, 14.2~10.8dBA - White Edition

IMG 1 of 1
No Longer Available
Part Number:
367783
(?) Brand:
AeroCool Web Site
Manuf No:
14CM-DS-WHITE
14CMDSWHITE
Shipping Weight:
0.5 KG (Includes product packaging)
Estimate Shipping
Date Added:
19/8/2014
Details Files Images & Video
All stock codes associated to this product
14CMDSWHITE, 14CM-DS-WHITE, 4713105951639


Features


  • 1.One of world’s most Silence fan with breakthrough technology and innovation.

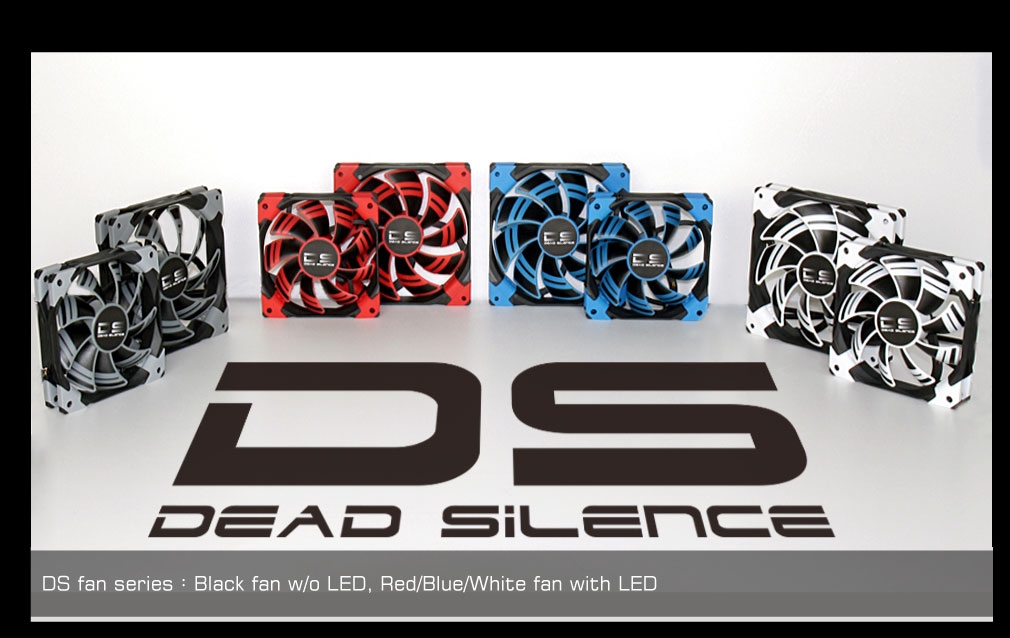

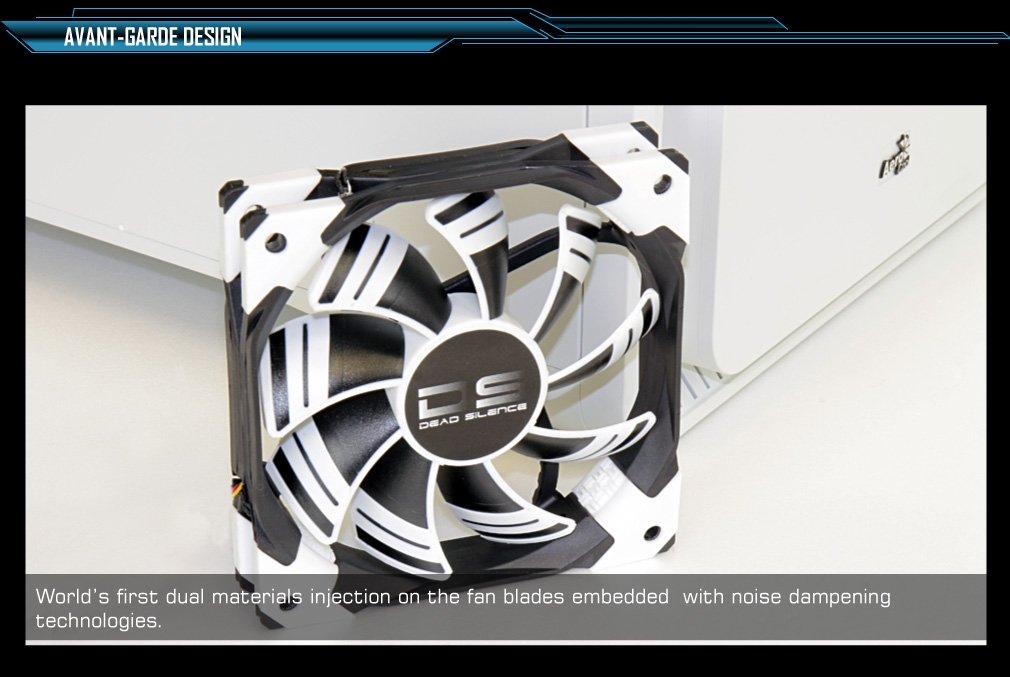

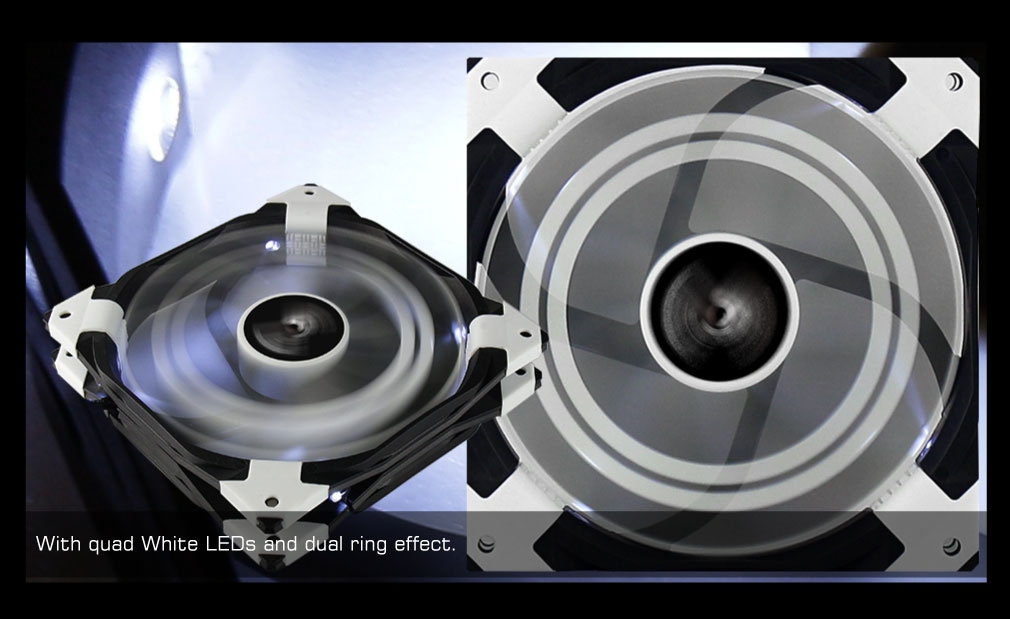

  • 2.Beautifully finished “Dual Color and Dual Material Fan” with four color combinations and LEDs (except for the Black Edition).

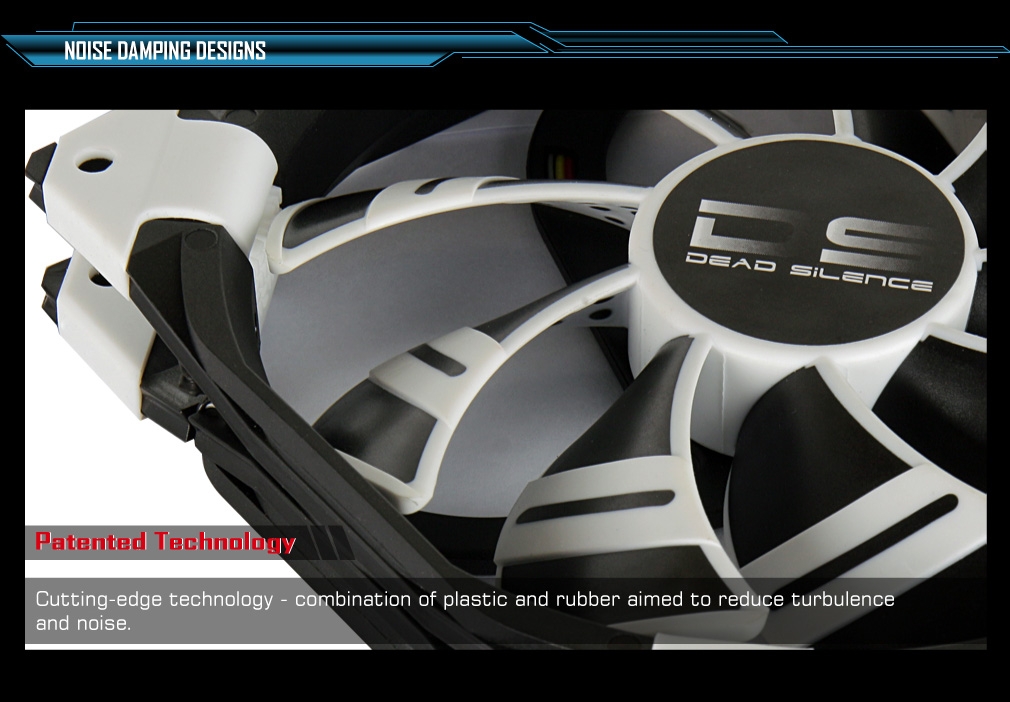

  • 3.The world’s first dual-layered fan blades - combination of plastic and rubber fan blades to absorb “Wind” noise.

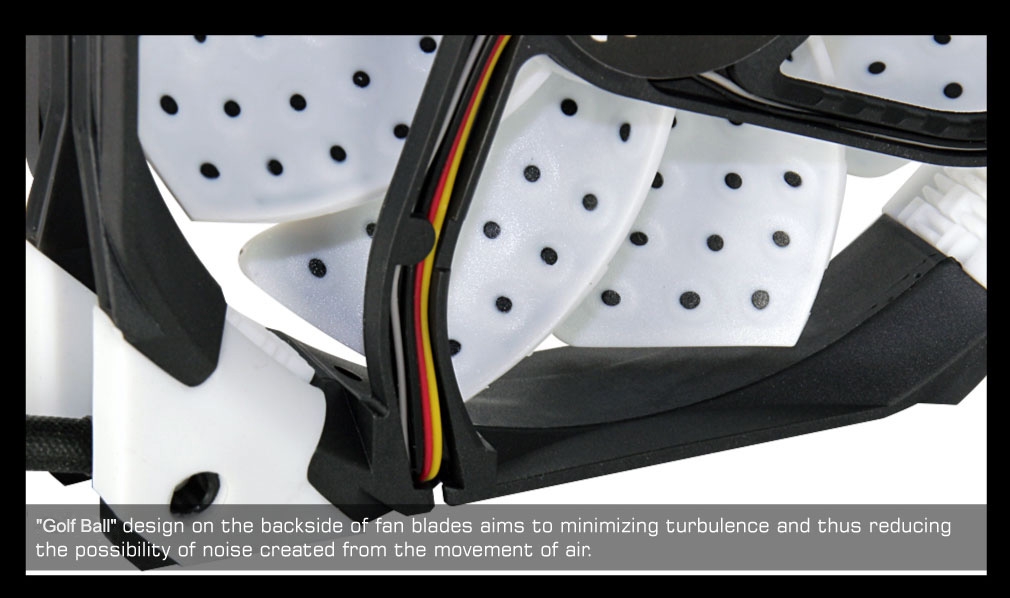

  • 4.“Golf Ball” surface design on the back rubber side of the fan blades to minimize the air turbulence.

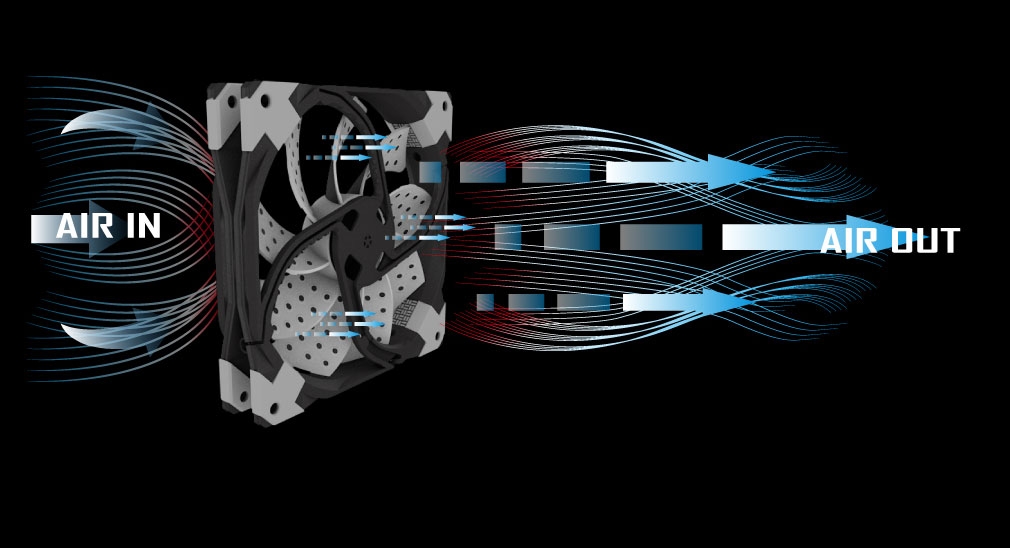

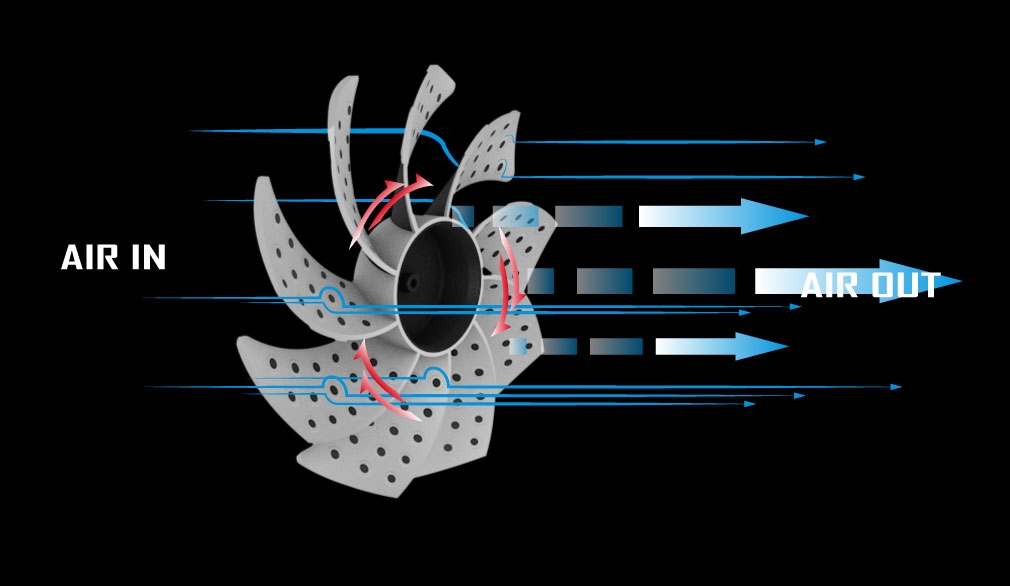

  • 5.Optimized fan blade angle design for a perfect balance of airflow and noise.

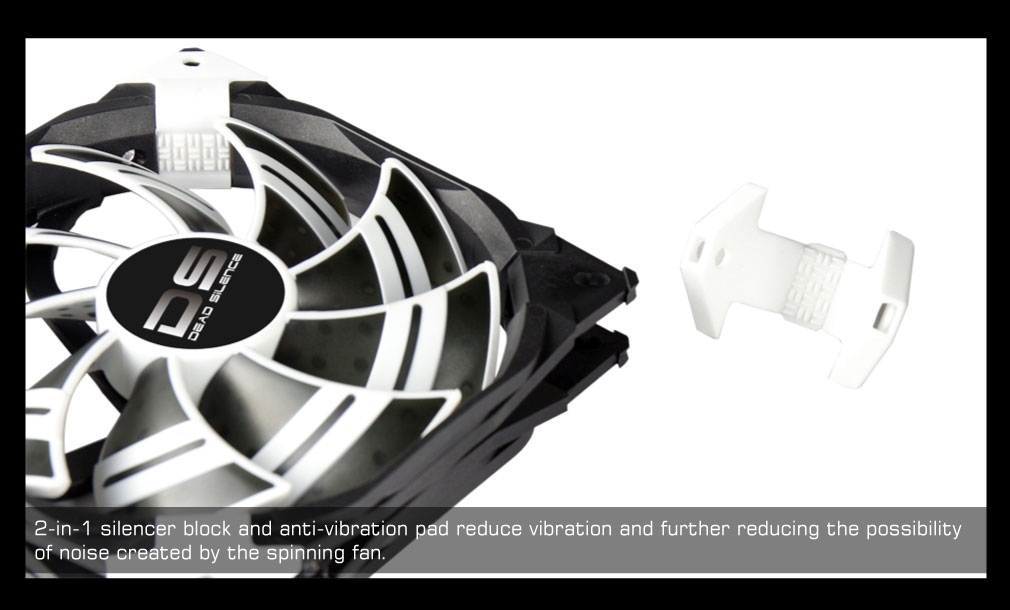

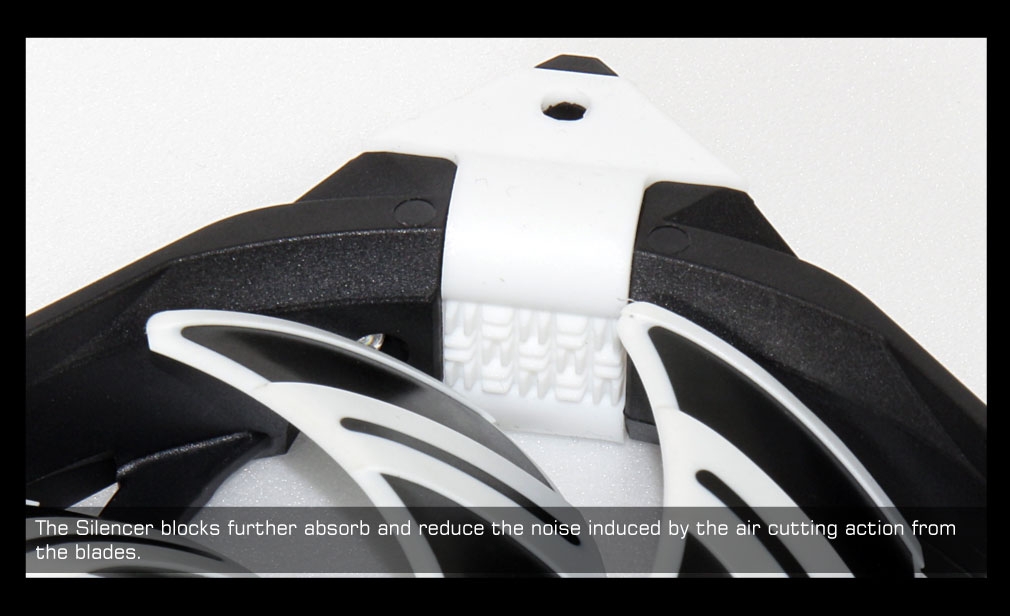

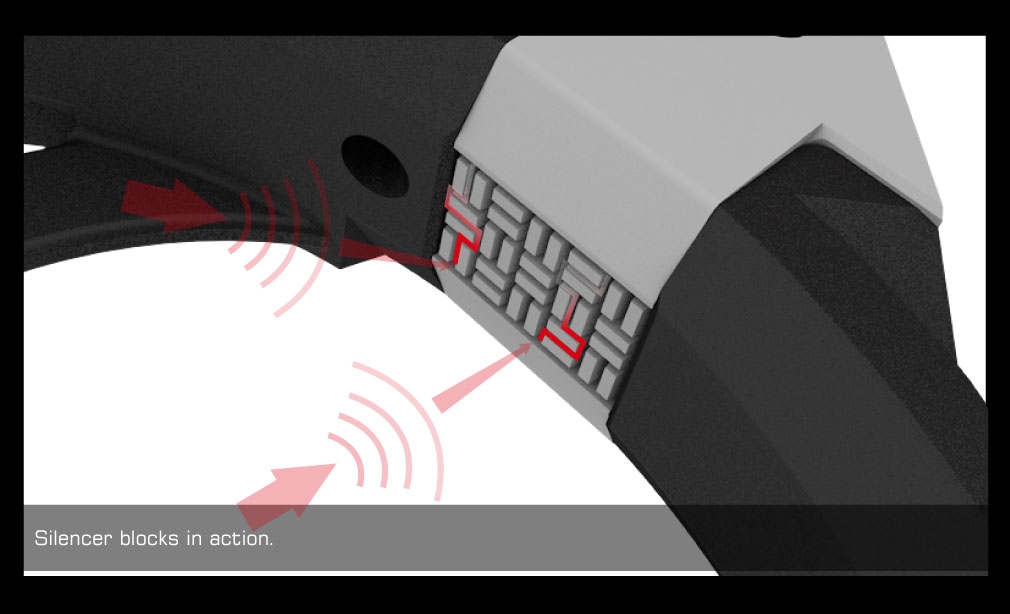

  • 6.Noise and shock reduction fan frame incorporating four Silencer Blocks and anti-vibration rubber pads on each mounting holes.

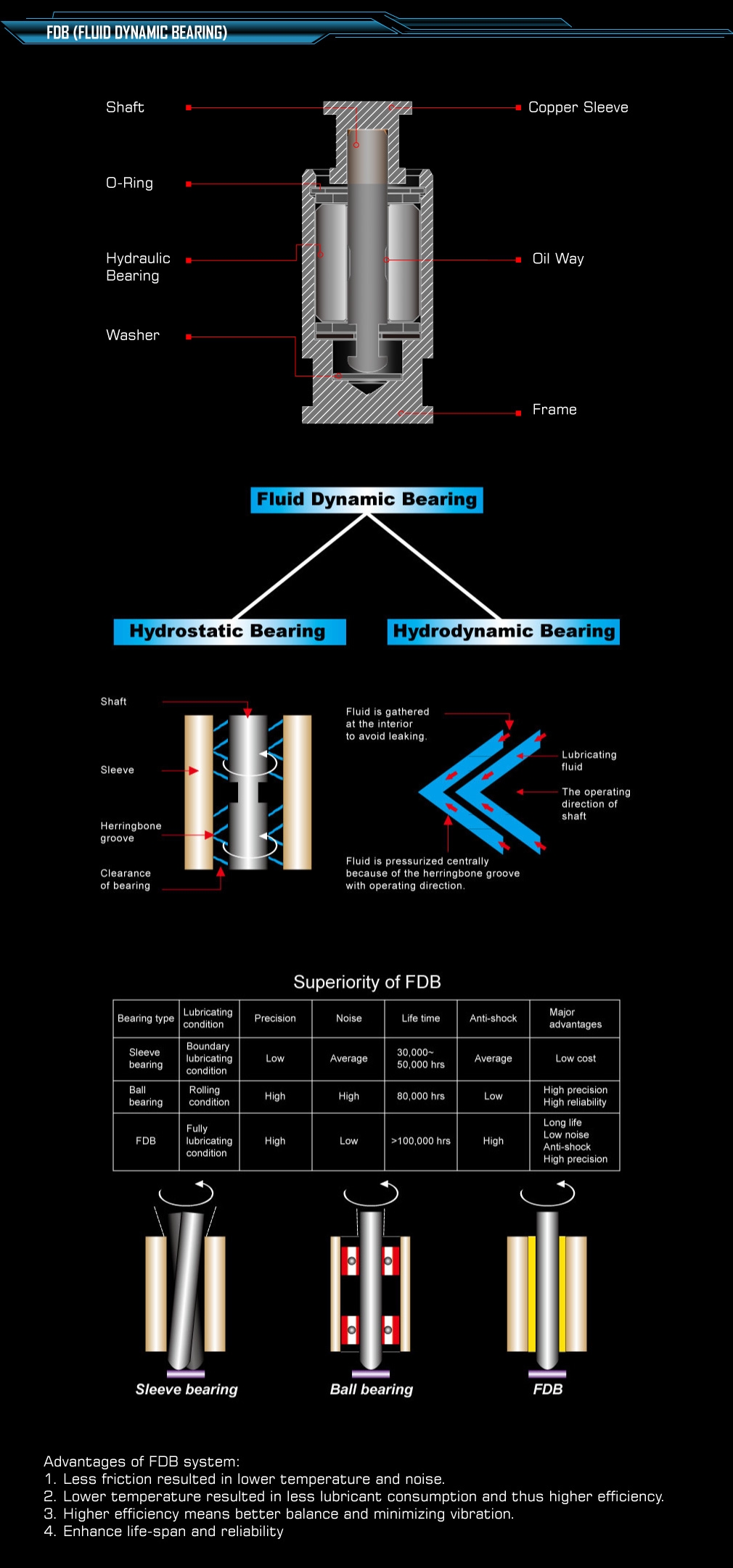

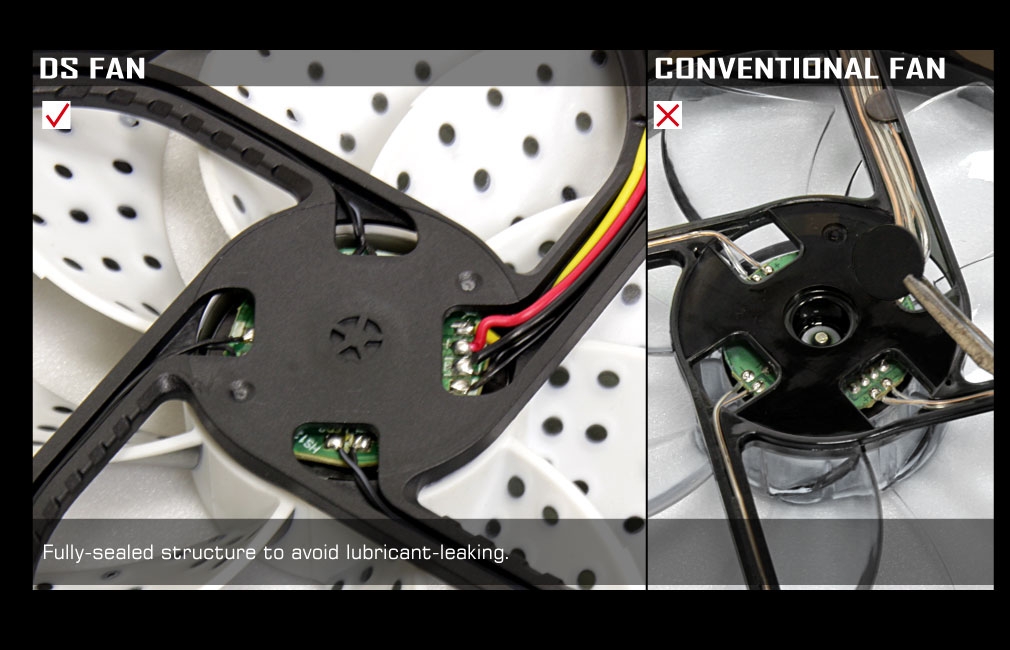

  • 7.Fluid Dynamic Bearing (FDB) delivers longer life span, higher precision rotation and anti-shock function.
  • 8.Low starting voltage of 3V.

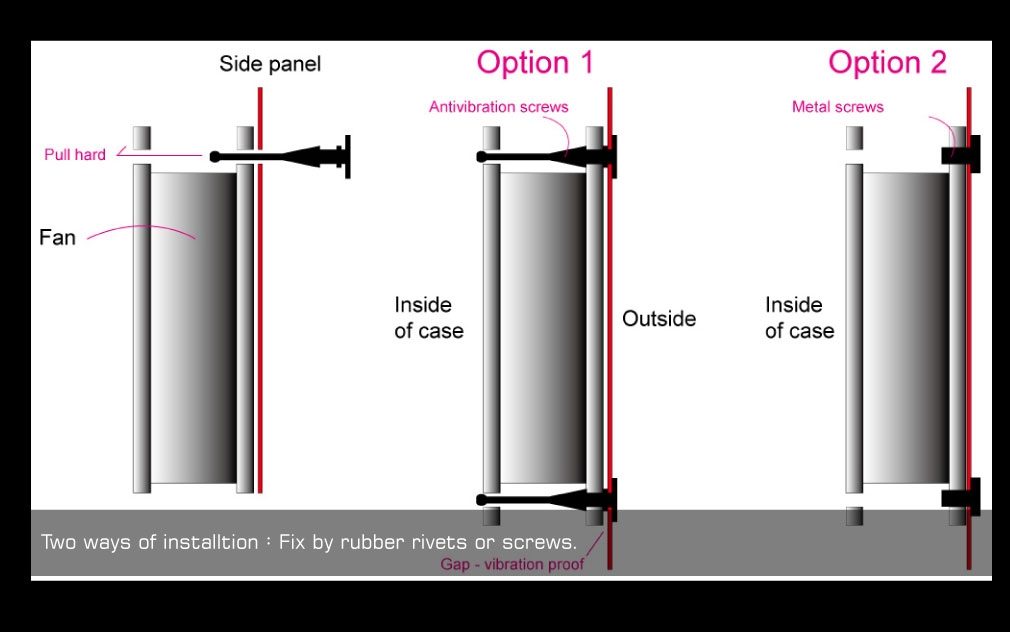

  • 9. Four Anti-vibration screws are included for easier installation.
  • 10. Power cables are "black" sleeved with both 3pin and Molex 4pin connectors.

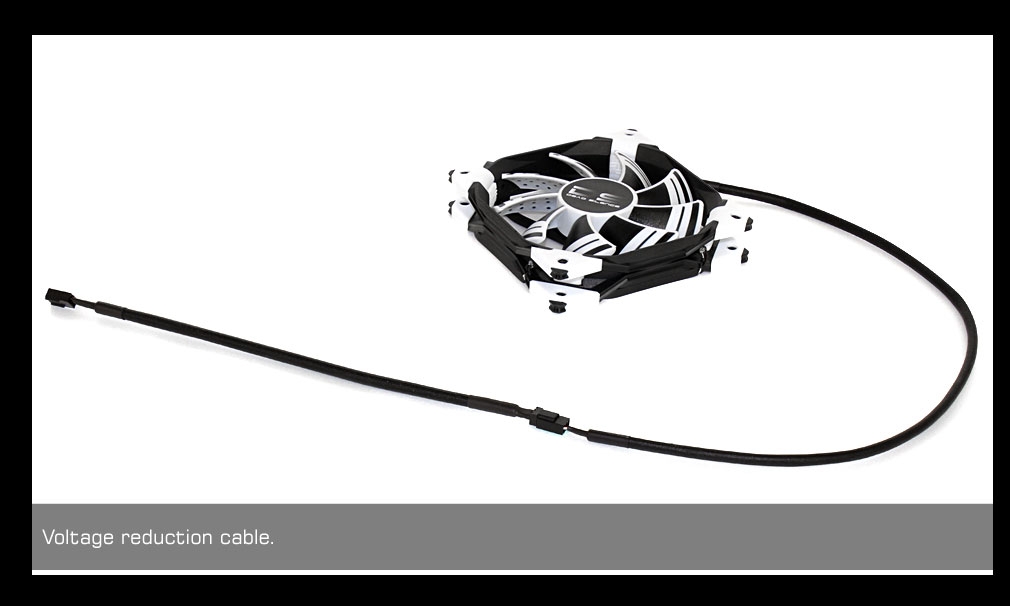

  • 11. Low speed 7V Voltage Reduction Cable included for ultra-low speed with unrecognizable noise.
  • 12. Pantent : Taiwan - M468707 ; Germany - 202014101115.3 ; China - ZL 2013 2 0713376.8


Patent pending : USA


Specifications:

  14cm DS Fan White Edition
  Dimensions 140 X 140 X 25mm
  Net Weight 190g
  Gross Weight 270g (Retail box included)
  Bearing System FDB (Fluid Dynamic Bearing)
  Rated Voltage 12V
  Starting Voltage 3.0V
  Rated Current 0.2A
  Power Consumption 2.4W
  Power Connector 3Pin with signal cable

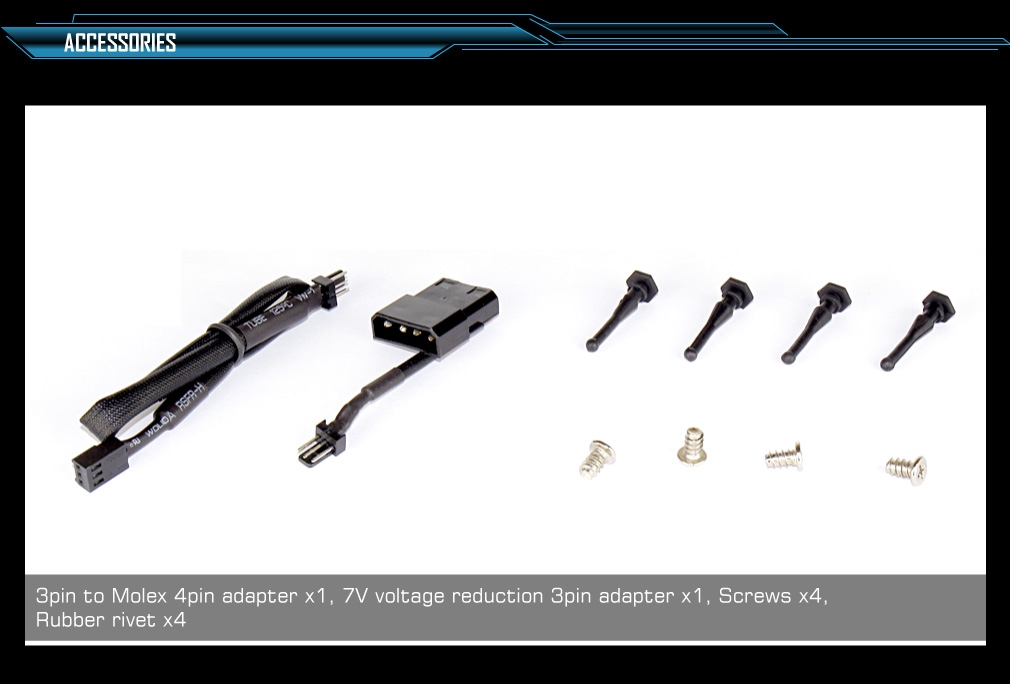

  Accessories 3pin to Molex 4pin adapter x1
7V voltage reduction 3pin adapter x1
Screws x4
Rubber rivet x4
  MTBF 100,000 hours
  Performance 12V 7V
  Speed 1000 RPM10% 700 RPM10%
  Air Flow 64.8CFM (109.8 m/h) 39.8 CFM (67.5m/h)
  Air Pressure 1.21 mm H2O 0.74 mm H2O
  Noise 14.2 dBA 10.8 dBA

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (AeroCool) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
