All stock codes associated to this product
PSSTSX600G, PSST-SX600G, 4710007221587
SX600-G
SFX Series
600W
Zero RPM (SX600-G)
Intelligent Semi-Fanless Operation
The fanless mode oepration deactivates when PSU's internal temperature reaches 45C
Introduction
After releasing the breakthrough SFX power supply in 2012 with the ST45SF-G, SilverStone has pushed the technical envelope even further with yet another industry defining design in the SX600-G. This small form factor PSU has the exact same dimensions as its predecessor but its power density has increased from 567W per liter (in the ST45SF-G) to 756W per liter. The result is a standard-sized SFX PSU with an incredible 600W of continuous power, a level that is capable of supporting any single graphics card system with ease.
Besides the power increase, the SX600-G comes standard with flexible, flat modular cables similar to those in the PP05-E short cable kit for vastly improved cable management in smaller cases. It also has added semi-fanless capability that was first introduced to SFX PSUs by the ST30SF so its quiet running fan can remain turned off during ideal low load or idle conditions for complete silence. As before, an ATX adapter bracket is included to enable users to install this PSU into any small or even larger cases that do not have SFX mounting holes. For the most ardent SFF enthusiasts, the SX600-G is truly a dream come true that combines the convenience of SFX size and all the top of the line features one can expect from high-end ATX PSUs into one product.
Special Features
- Intelligent semi-fanless operation
- Support standard SFX form factor and ATX via included bracket
- High efficiency with 80 PLUS Gold certification
- 100% modular cables
- All cables made with flexible flat arrays
- 600W continuous power output at 40 operating temperature rated for 24/7 operation
- Class-leading single +12V rail with 50A
- Strict 3% voltage regulation and low ripple & noise
- Support dual PCI-E 8/6pin connectors
Remark

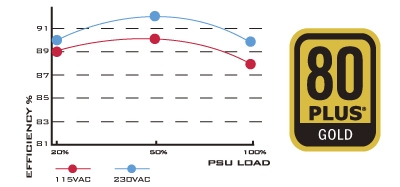

Designed for 80 PLUS Gold level of efficiency to reduce wasted heat and save on electricity.
100% modular cable design for easy removal in a case with cable routed and tied down.
Flat cables have much greater flexibility to allow for tighter folding and management of cables.
Ultra-quiet 80mm fan with intelligent RPM control guarantees cool performance and silent operation with minimum of 18dBA during fan operation. The fanless mode operation deactivates when PSU’s internal temperature reaches 45°C.
Specifications
|
Model No.
|
SST-SX600-G
|
|
Max. DC Output
|
600W
|
|
Load Range
|
|
|
+3.3V |
+5V |
+12V |
+5VSB |
-12V |
|
|
20A |
15A |
50A |
2.5A |
0.3A |
|
|
/ |
/ |
/ |
3A |
/ |
|
|
0A |
0A |
0A |
0A |
0A |
|
|
3% |
3% |
3% |
5% |
10% |
|
|
1% |
1% |
1% |
1% |
2% |
|
|
50mA |
50mA |
120mV |
50mV |
120mV |
|
|
combined +3.3, +5V
|
90W
|
|
combined +12V
|
600W
|
|
Input Voltage
|
90V ~ 264V
|
|
Input Frequency Range
|
47Hz ~ 63Hz
|
|
PFC
|
Active PFCPF>0.95 at full load
|
|
Efficiency
|
87%~90%20% to 100% loading
|
|
MTBF
|
100,000 hours
|
|
Operating temperature
|
0C ~ 40C
|
|
Protection
|
Over current protection
Over power protection
Over voltage protection
Over Temperature Protection
Under voltage protection
Short circuit protection
No load operation
|
|
Connectors
|
1 x 24 / 20-Pin motherboard connector300mm
1 x 8 / 4-Pin EPS / ATX 12V connector400mm
2 x 8 / 6-Pin PCIE connector400mm / 150mm
4 x SATA connector300mm / 200mm / 100mm / 100mm
2 x 4-Pin Peripheral connector 300mm / 200mm
1 x 4-Pin Floppy connector300mm / 200mm / 200mm
|
|
Color
|
BlackLead-Free Paint
|
|
Cooling System
|
Single 80mm silent fan
|
|
Noise Level
|
0 ~ 40 dBA
|
|

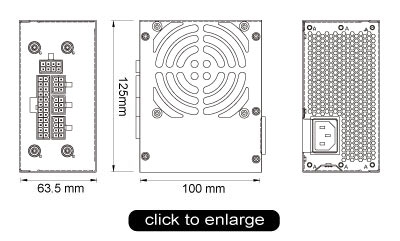

Dimension
|
125 mm (W) 63.5 mm (H) 100 mm (D)
|
|
Weight
|
1.45 Kg
|
|
Form factor
|
SFX
|
|
Certification
|
80 PLUS Gold
|
|
Other
|
Includes SFX to ATX bracket for use in ATX case
GPU Support list
Haswell CPU support
|
