All stock codes associated to this product
JG726A, 887758596807
Fixed Port L3 Managed Ethernet Switches

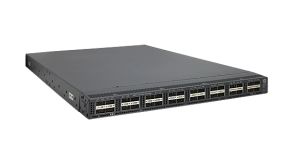

HP FlexFabric 5930-32QSFP+ Switch (JG726A)
Overview
The HP FlexFabric 5930 Switch Series is a family of high-density, ultra-low-latency, top-of-rack (ToR) switches that is part of the HP FlexNetwork architecture's HP FlexFabric solution. Ideally suited for deployment at the aggregation or server access layer of large enterprise data centers, the HP 5930 Switch Series is also powerful enough for deployment at the data center core layer of medium-sized enterprises.
With the increase in virtualized applications and server-to-server traffic, customers now require spine and ToR switch innovations that will meet their needs for higher-performance server connectivity, convergence of Ethernet and storage traffic, the capability to handle virtual environments, and ultra-low-latency all in a single device- the HP FlexFabric 5930 Switch Series.
Features
Quality of Service (QoS)
Powerful QoS features: Flexible classification: creates traffic classes based on access control lists (ACLs), IEEE 802.1p precedence, IP, and DSCP or Type of Service (ToS) precedence; supports filter, redirect, mirror, remark, and logging. Feature support: provides support for Strict Priority Queuing (SP), Weighted Fair Queuing (WFQ), Weighted Deficit Round Robin (WDRR), SP+WDRR together, configurable buffers, Explicit Congestion Notification (ECN), and Weighted Random Early Detection (WRED).
Data center optimized
Flexible high port density: the HP FlexFabric 5930 Switch Series enables scaling of the server edge with 40GbE spine and ToR deployments to new heights with high-density 32-port solutions delivered in a 1RU design. Each 40 GbE QSFP+ port can also be configured as four 10GbE ports by using a 40-GbE-to-10GbE splitter cable.
High-performance switching: cut-through and nonblocking architecture delivers low latency (~1 microsecond for 10GbE) for very demanding enterprise applications; the switch delivers high-performance switching capacity and wire-speed packet forwarding
Higher scalability: HP Intelligent Resilient Framework (IRF) technology simplifies the architecture of server access networks; up to four HP 5930 switches can be combined to deliver unmatched scalability of virtualized access layer switches and flatter two-tier networks using IRF, which reduces cost and complexity
Advanced modular operating system: Comware v7 software's modular design and multiple processes bring native high stability, independent process monitoring, and restart; the OS also allows individual software modules to be upgraded for higher availability and supports enhanced serviceability functions like hitless software upgrades with single-chassis ISSU
TRILL and EVB/VEPA: TRansparent Interconnection of Lots of Links (TRILL) is supported to increase the scale of enterprise data centers; Edge Virtual Bridging with Virtual Ethernet Port Aggregator (EVB/VEPA) provides connectivity into the virtual environment for a data center-ready environment
Manageability
Full-featured console: provides complete control of the switch with a familiar CLI
Troubleshooting: Ingress and egress port monitoring: enable network problem solving. Traceroute and ping: enable testing of network connectivity.
Multiple configuration files: allow multiple configuration files to be stored to a flash image
sFlow (RFC 3176): provides wire-speed traffic accounting and monitoring
SNMP v1, v2c and v3: facilitate centralized discovery, monitoring, and secure management of networking devices
Resiliency and high availability
HP Intelligent Resilient Framework (IRF) technology: enables an HP FlexFabric to deliver resilient, scalable, and secured data center networks for physical and virtualized environments; groups up to four HP 5930 switches in an IRF configuration, allowing them to be configured and managed as a single switch with a single IP address; simplifies ToR deployment and management, reducing data center deployment and operating expenses
IEEE 802.1w Rapid Convergence Spanning Tree Protocol: increases network uptime through faster recovery from failed links
IEEE 802.1s Multiple Spanning Tree: provides high link availability in multiple VLAN environments by allowing multiple spanning trees
Virtual Router Redundancy Protocol (VRRP): allows groups of two routers to dynamically back each other up to create highly available routed environments
Hitless patch upgrades: allows patches and new service features to be installed without restarting the equipment, increasing network uptime and facilitating maintenance
Specifications
Ports
-
- 32 QSFP+ 40GbE ports
- 1 RJ-45 serial console port
- 1 RJ-45 out-of-band management port
- 1 USB 2.0
- Included
Memory and processor
512 MB flash; packet buffer size: 12.2 MB; 4 GB SDRAM
Latency
Throughput
1905 Mpps
Routing/switching capacity
2560 Gb/s
Stacking capabilities
Management features
-
- IMC - Intelligent Management Center
- command-line interface
- out-of-band management
- SNMP Manager
- Telnet
- FTP
Dimensions and weight
Minimum dimensions (W x D x H)
44.00 x 66.0 x 4.37 cm
Weight
13 kg
What's included
What's in the box
(1) HP 5930-32QSFP+ Switch
Warranty
1 year, advance replacement, 10 calendar day, phone support, software releases
