Epson SureColor SC-T3200 - 24"

FEATURES AT A GLANCE

• High Productivity prints an A1 image in as little as 28s and produces a A1 sheet in as little as 30sec with an integrated high-speed auto-cutter
• High Precision 2880x1440dpi resolution Epson PrecisionCore print head with VSDT for super fine lines, superior fills & half tones with optimised ink application
• High Quality all-pigment Epson UltraChrome XD ink for water & scratch resistant prints with accurate, consistent and vibrant colour
• High Reliability solid design and construction backed with a 'heads-n-all' warranty extendable up to 3 years³
• High Flexibility supports roll, cut sheet and thick board up to 24" (610mm) wide with borderless output on a variety of sizes, floor-standing model includes a media bin with selectable flat or folded presentation
• High Convenience LED control panel with integrated help, all-front loading consumables, spindle-less roll mounting, Barcode Roll Media Management system

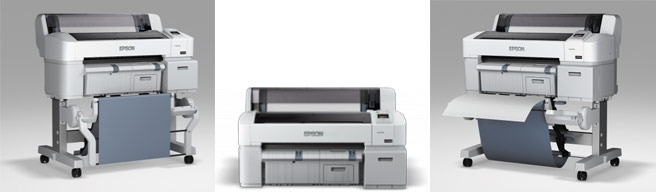

• Space-Saving Installation choice of desktop and floor-standing configurations, each with small footprint, can be installed and operated against a wall or in a corner¹
• Cost Effective Operation low ink consumption, low power consumption, large waste tank, and individual colour cartridges in a choice of sizes up to 700ml
• Performance Workgroup Support large 1GB memory and high speed Gigabit Ethernet, supplied with remote management software, optional 320GB HDD for continuous multi-user operation with rapid reprint
• Performance Workflow Support HP-GL/2 & RTL emulation2, remote job and error status notification, job costing utility, optional high-speed Adobe  Postscript

The SureColor Technical series feature an advanced design with precision components, a solid laser welded chassis and fine tolerance robotic assembly. They take as little as 28 seconds to print an A1 image and are built to provide consistent high-speed operation with accurate media transport, minimum movement and low noise. All models incorporate Epson's patented Thin Film Print heads with micro-fine nozzles that support resolutions up to 2880x1440dpi. The heads are factory fitted to ensure maximum print precision and are designed to provide durable performance without the cost or inconvenience of regular replacement³. Integrated Variable-size Droplet Technology adds additional clarity to fine detail while enabling enhanced half-tone results and precise ink density control for superior colour and fill consistency with minimum consumption.







Epson UltraChrome Ink features an all-pigment construction with maximum colour precision and image durability on the widest range of media types. The XD formulation provides an extended gamut with particular focus in red and green for POS, display and presentation work. It provides output with vibrant colour, solid and consistent fills, crisp text and lines with a minimum width of just 0.02mm. When applied to quality media the ink is resistant to scratch and moisture damage which can be highly useful for plans and other working documents. The ink set incorporates both a matte and photo black with the printer automatically switching between the two depending on the output requirement.





Economic to Run with Flexible Media Support

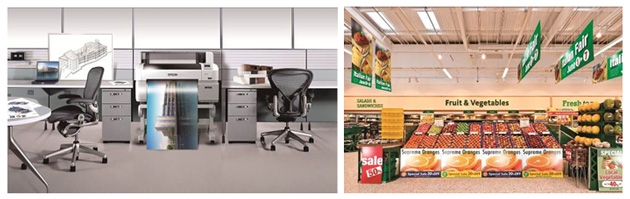

The SureColor Technical series comes in three sizes to suit different output requirements. 24-inch (610mm) wide models supports output up to A1 and can be purchased in either a desktop or floor-standing configuration. 36-inch wide (914mm) models support output up to A0 while 44-inch (1118mm) wide models support B0 and larger. All models feature optimised running costs with low ink consumption, ultra-low power consumption and large cost-effective waste tanks. They use ink cartridges which can be ordered individually in a choice of 110ml, 350ml and 700ml sizes to suit different operational and costs per print requirements.

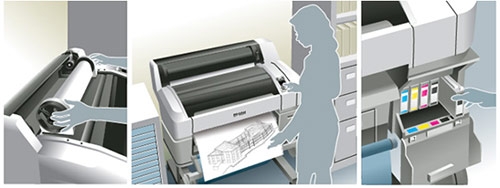

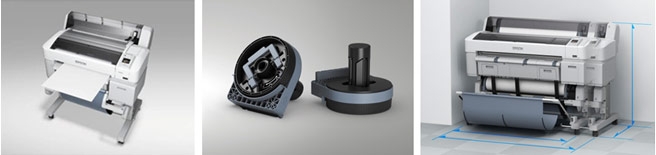

The Technical series has been designed to accept a wide range of roll and single sheet media. They support stock as light as 80gsm for draft work and have a special straight path that supports stock as thick as 1.5mm for presentation and model work. The series features a heavy-duty high-speed auto-cutter that will cut a wide variety of media and slice an A1 sheet in just 2s. Roll media is quick and easy to load with a spindle-less design that facilitates easy exchange. For users who work with multiple media types, additional optional Roll Media Adaptor kits are available for pre-attachment to stored rolls along with Roll Belts for tension maintenance and edge protection. All printers have an inbuilt Roll Media Barcode Management system that tracks consumption and enables automatic re-configuration upon loading. For ultimate flexibility 36 and 44 models can be ordered in a Dual Roll version with fast 26s roll exchange. Roll selection can be made manually or automatically with configurable parameters. Images can be auto rotated for optimum media consumption and large print runs spanned over multiple rolls for efficient uninterrupted production.





Easy to Install and Flexible to Operate



The SureColor Technical series incorporates high-speed networking with support for the latest addressing and security protocols. Designed to operate with standard Macintosh  and Windows  applications, they also support HP-GL/2 and RTL emulation for specialist CAD, GIS and mathematical applications². All models operate with convenient all-front loaded consumables and feature a compact design with all connections located on the right to enable operation against a wall or in a corner². They provide remote email error and job status notification, incorporate a high degree of self-maintenance and have in-built help. All floor-standing configurations come with a stand and media bin with adjustable output presentation. Single Roll models feature an adjustable bin that holds up to 20 sheets with flat or folded display. Dual Roll models feature an extra-large bin that can be completely stowed when not in use. An optional auto take-up reel is available for the T7200 to enable high volume roll-to-roll production.⁴





The technical series ships with a suite of applications designed to enhance operational ease and management flexibility. Printers can be controlled from the desktop, from the large front panel colour LCD, or remotely via a web based utility. An in-built email system enables remote job status and error reporting while an included plug-in utility enables easy printing from MS Office applications. An optional accounting tool is available for free download to enable cost control and simplified job billing.

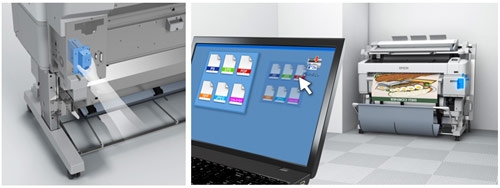

For printers used in a workgroup environment an optional 320GB HDD provides fast and cost-effective job spooling complete with flexible queue management, predictive consumables analysis, and rapid direct reprint. An optional PS Module provides the same functionality with additional high-speed hardware-based Adobe  original Postscript  3 image processing. PS functionality operates via hot-folder 'drag-n-drop' with configurable job processing and selectable document security. An optional Wide Format Scanner is also available for use with 36 and 44 printers. The scanner supports media up to 38 wide and provides high-speed high-resolution colour scan, copy and document sharing facilities. The Scanner and PS Module can be purchased together with relevant printer models to provide a complete high-performance MFP system⁵.



Specifications



SIZE
Max Print Width	24 inch wide (borderless)
PRINT TECHNOLOGY
Print Head	PrecisionCore TFP with VSDT and Auto Head Alignment
Print Modes	Uni & Bi-directional
Nozzle Configuration	720 per colour
Maximum Resolution	2880dpi x 1440dpi
Maximum Precision	0.02mm with +/-0.1% accuracy
Minimum Ink Droplet Size	3.5pl
INK SYSTEM
Family	Epson Ultrachrome XD
Type	All-Pigment Aqueous
Colours	C+Y+M+Mk/Pk (auto Matte/Photo Black switching)
Cartridges	5 x 110/350/700ml
PERFORMANCE (per A1 Sheet)
Draft POS	28sec	(360 x 720dpi)
Quality POS	66sec	(720 x 720dpi)
Draft CAD	30sec	(360 x 720dpi)
Quality CAD	60sec	(720x1440dpi)
Figures represent print times only for Epson test sample images as shown produced on plain paper. Additional processing time may be required with individual results likely to vary depending on software, operating environment, media and data file size/type.
MEDIA SUPPORT
Roll Format	Spindle-less front loading single roll, 2 or 3 core, 0.08-0.5mm thick, 254-610mm wide, 150mm max diameter with Media Barcode System & auto tension control
Sheet Format	Front Loading Single Sheet, 0.08-1.5mm thick, 210-610mm wide
Borderless Print	Supported for 254mm/10, 300mm/11.8, 329mm/13, 406mm/16, 432mm/17, 515mm/20.3, 594mm/23 & 610mm/24 media sizes
Auto Cutter	Inbuilt heavy-duty rotary type (2s per A1 sheet with selectable high-speed & silent modes)

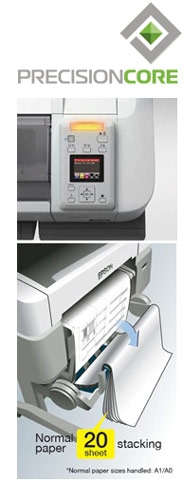

Output	Media basket with selectable 20 sheet flat & folded presentation (floor standing configurations only)
OPERATION
Control Panel	2.7 Colour LCD with push button control & LED warning
Control Code	ESC/P Raster, HP/GL/2 & HP RTL*, Optional Adobe  Postscript  3
Interface	USB 2.0 & Ethernet 10Base-T/100Base-TX/1000Base-T
Compatibility	Windows XP/Vista/7/8 (32/64bit), Mac OSx10.5 or later, Win server 2003 & 2008 Standard/ Standard 64bit
Networking	IPv4 & IPv6 addressing, IPsec, IEEE902.1X and SSL/TLS support
Memory	1GB RAM, Optional 320GB HDD
Physical (WxHxD)	Desktop: 1050 x 613 x 691 mm, 54 kg (no consumables, media or options) Floor Standing: 1050 x 1117 x 762 mm, 67 kg (closed basket, no consumables, media or options)
ENVIRONMENT
Operational Temp	10 to 35 C
Operational Humidity	20 to 80% (no condensation)
Power Supply	100 - 240 V AC, 50/60 Hz
Power Consumption	52W Operating, 3W Sleep
Operating Noise	50dB
Operating Space (WxHxD)	Desktop: 1210 x 763 x 851 mm** Floor Standing: 1210 x 1267 x 922 mm**
SHIPPING INFO
Dimensions***	Printer: 1169 x 809 x 970mm, 76Kg Stand: 1120 x 248 x 760mm, 20Kg (Floor Standing versions only) PS Module: 268 x 222 x 149, 1Kg (Postscript versions only)
Whats in the Box	Printer, Power Cord, 110ml Ink set, 1 x Roll Media Adaptor Set, 1 x Maintenance Tank, Setup Guide & Warranty Info. Mac/Windows Printer Driver, MS Office Plug-In, LFP Remote Panel2, EpsonNet Config, EpsonNet Print (Win only), Remote Manager Scanner software, PS software & User & Network manuals on CD. LFP Accounting Tool, AutoCad HDI Driver and HDDutility software via web download. An additional Stand is included with floor-standing configurations and a PS Module with Postscript configurations.
Delivery & Install	Some assembly and configuration may be required. A significant proportion of the included ink will be required to prime the printer and it is recommended that an additional set be purchased for production work. Delivery, de-boxing and package removal is not typically included but can be provided at an additional charge for most locations.
Service & Support	Support and Service is provided via authorised Epson authorised Large Format Technical Dealers. If you have a problem with a SureColor Technical printer, a related option or consumable please contact your dealer for initial problem evaluation. Should a printer require service this will be provided by on-site free of charge within the period covered by your Warranty and any optional Service Pack. Note: Provision of service and support is subject to Large Formt Printer Warranty terms and travelling charges may apply for equipment located outside major metro areas.
CONFIGURATION OPTIONS
SCT3200DT1YR	Desktop with 1Yr Warranty
SCT3200DT3YR	Desktop with 3Yr Warranty
SCT32001YR	Floor standing with 1Yr Warranty
SCT32003YR	Floor-Standing with 3Yr Warranty
OPTIONAL ACCESSORIES
C12C811401	Additional Roll Media Adapter set
C12C848031	320GB Hard Disk Drive (included in the PS module)
C12C891131	PS Module with 320GB HDD (included with Postscript configurations)
C12C844171	Printer Stand (included with Floor-Standing configurations)
RELATED PRODUCTS
SC-T5200	36 SureColor Technical Printer
SC-T5200D	36 Dual Roll SureColor Technical Printer
SC-T7200	44 SureColor Technical Printer
SC-T7200D	44 Dual Roll SureColor Technical Printer
* If HP-GL/2 or RTL is required customers are recommended to confirm compatibility & functionality prior to purchase. ** Additional space may be required when printing heavy board stock *** Consumables & documentation may be included in the printer box or shipped separately
